NEW MACHINERY NEWS! SEP22

AN INDUSTRY FIRST

Its the New Timberwolf TW 280HB HYBRID

Lets find out more from Timberwolf:

REDUCING EMISSIONS – OUR VISION

Developed to meet a growing need in the industry, the TW 280HB HYBRID offers peak power of 62hp with Kubota Super Mini Series engine emission levels. Easy to maintain, the TW 280HB HYBRID wood chipper is ideal for companies who are committed to minimising their emissions and fuel usage without compromising on performance.

Get a quote now

–

HOW DOES THE TIMBERWOLF HYBRID POWERTRAIN WORK?

SELF-CHARGING POWERTRAIN

When idling, the D902-TE4 turbo diesel engine directs energy into the Inmotion Generator Synchronous Motor (GSM) and drives energy recovery to the rotor (maintaining target RPM). During this period with no chipping load, the SECH supercapacitors are charged by the GSM as instructed by the Chipper Control Unit (CCU).

ENERGY BOOST ON DEMAND

When chipping starts, the rotor RPM naturally drops. If this RPM drops to a pre-determined set-point, the CCU will prompt the demand for additional energy. This is supplied according to the load mode automatically detected by the CCU based on the rate of decay.

CHIPPING POWER WHEN YOU NEED IT MOST!

This additional energy, stored in the SECH supercapacitors, is directed back into the GSM where it now acts to provide additional recovery energy to the rotor. The result is enhanced efficiency and chipping capability for the user when they need it most.

FOCUSED ON RELIABILITY

Timberwolf is committed to supplying reliable, easy-to-maintain wood chippers to arborists. The self-charging TW 280HB HYBRID ensures you will not lose chipping performance through the day.

TOUGH ON WOOD – KIND ON THE PLANET

The TW 280HB HYBRID’s mild hybrid powertrain meets the dual challenge of exceptional 62hp peak chipping performance whilst using a 24.8hp Kubota Super Mini Series engine for outstanding applied torque.

BEST OF BRITISH ENGINEERING

Professional wood chippers need to be fundamentally fit for purpose. As no commercially-viable sustainable solution was available, we decided to lead our own hybrid powertrain development programme.

–

BOOK A FREE DEMO NOW

• CHALLENGING INDUSTRY EMISSIONS
  Emissions and fuel consumption at Kubota Super Mini Series engine levels.
• POWER & PERFORMANCE
  Peak power @ 3200 rpm = 62hp (46.3kW). Maximum torque @ 2400 rpm = 172.2 Nm.
• EASY TO MAINTAIN
  Self-charging system: no external charging required. No diesel particulate filter (DPF) or AdBlue required. Less fuel-quality sensitivity.
• TIMBERWOLF QUALITY GUARANTEED
  Timberwolf reliability and simplicity with enhanced operator diagnostics for easy troubleshooting.

–

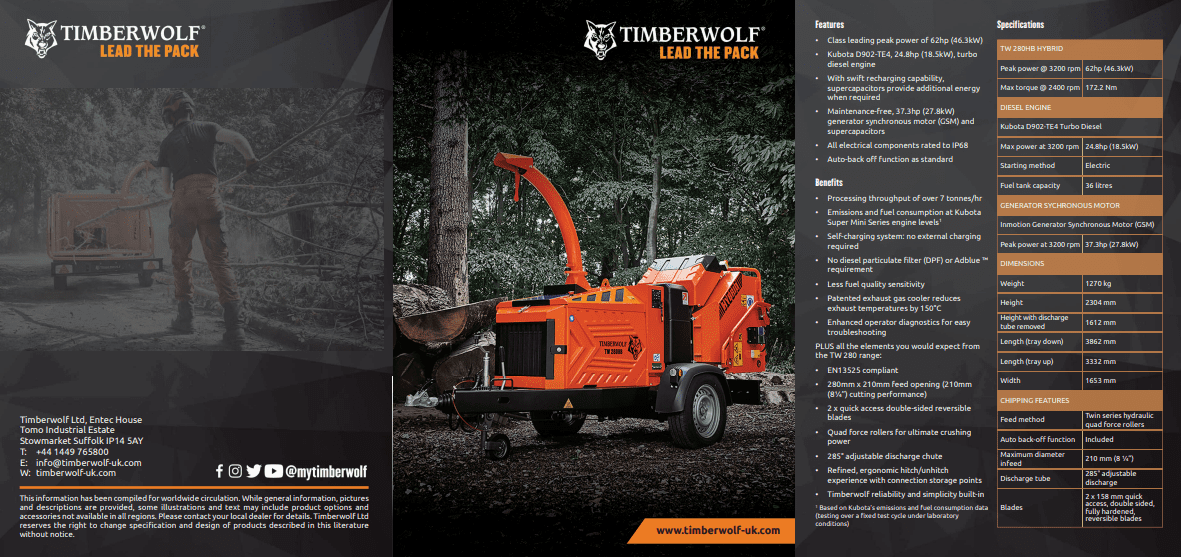

Click here to see the Brochure:

–

Some early images:

Source http://www.timberwolf-uk.com
