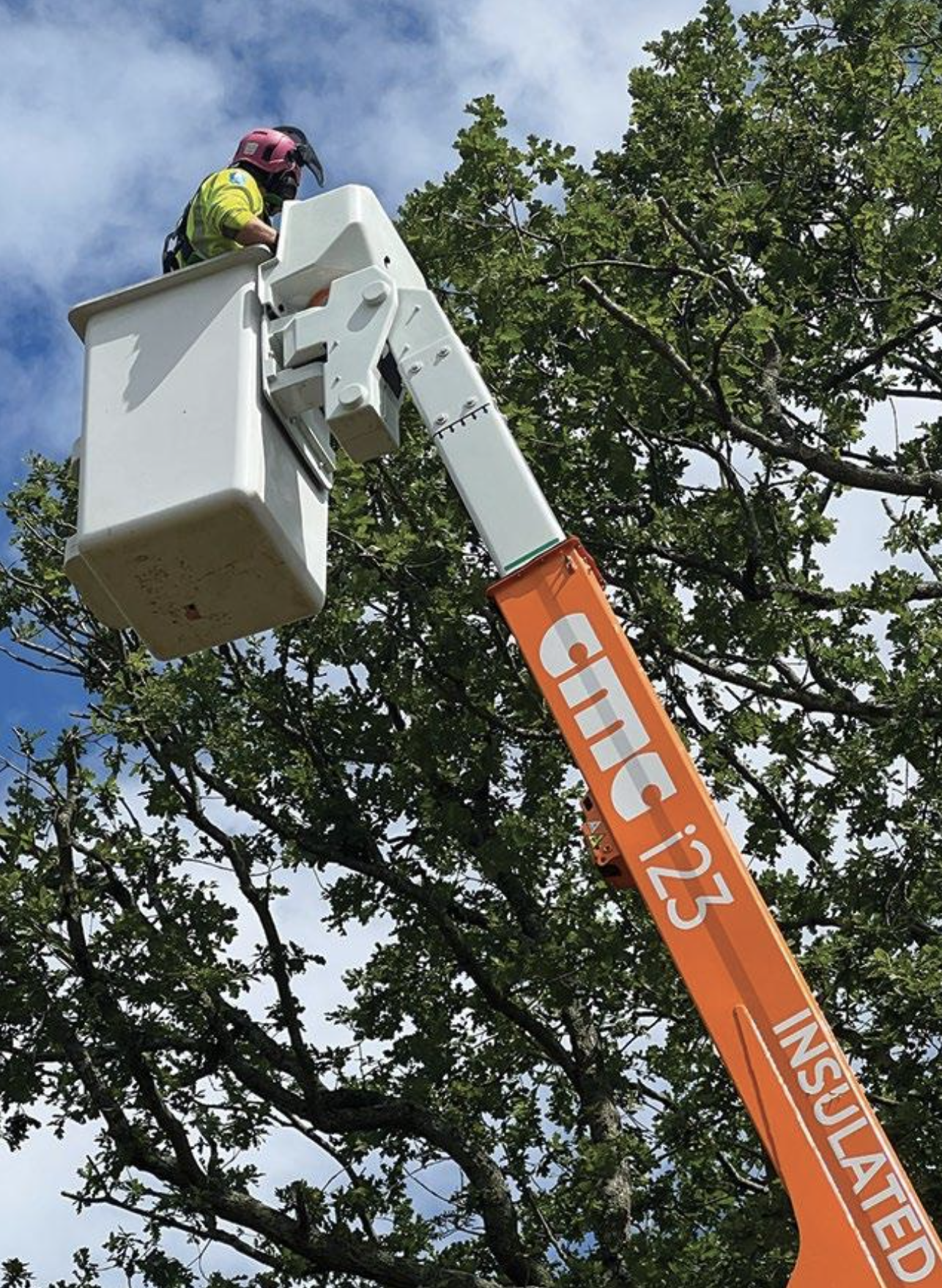

CMC i23 Access Platform – Insulated High-Reach Spider Lift for Electrical & Utility Work

Double-pantograph insulated platform designed for maximum safety near high-voltage lines

The CMC i23 Access Platform is a highly specialised insulated spider lift engineered for electrical utilities, infrastructure maintenance, and professionals working near or around live high-voltage environments. Designed with a double pantograph system and insulated up to 46 kV, it allows operators to work safely around power lines without compromising performance. As a result, this CMC i23 spider lift delivers exceptional height, stability, and protection in demanding regulated applications.

Insulated for Safe High-Voltage Work

A key advantage of the CMC i23 Access Platform is its electrical insulation up to 46,000 volts, offering enhanced operator protection during overhead line maintenance. Moreover, its insulated design integrates seamlessly with its boom structure, allowing safe proximity work without additional external safety appliances. Therefore, the CMC i23 is uniquely capable within environments that require strict compliance and electrical safety assurance.

Outstanding Reach and Operational Geometry

With a maximum working height of 22.8 m and a 10 m horizontal outreach (with 180 kg), the CMC i23 Access Platform offers excellent performance within its category. Its double pantograph geometry ensures smooth, vertical alignment and large working envelopes without limiting devices. In addition, it features ±200° turret rotation (400° continuous) and +90° basket rotation, greatly improving manoeuvrability in constrained spaces. Consequently, operators can position themselves accurately around complex structures.

Superior Stability and Multi-Area Stabilisers

The CMC i23 spider lift includes three stabilisation areas and fully automatic stabiliser levelling, enabling optimal setup across different terrain types. Its high-strength outriggers, combined with proportional hydraulic controls, provide excellent precision during elevation and positioning. Furthermore, the machine can safely handle slopes up to 34% longitudinally, making it suitable for outdoor utility work, uneven verges, substations, and rural electrical routes.

Compact Design for Access in Confined Spaces

Despite its substantial reach, the CMC i23 Access Platform maintains a compact footprint. With a 0.89 m stowed width and sub-2 m stowed height, it easily fits through narrow alleyways, gateways, and restricted site entrances. Moreover, its lightweight construction ensures efficient transport to remote or difficult-to-reach locations. Therefore, the i23 is well-suited for both urban and off-road deployment.

Powerful and Efficient Power System

Powering the CMC i23 Access Platform is the Kubota D902-E4B diesel engine (16.1 kW / 21.6 hp), delivering performance suited for demanding utility work. Optional auxiliary electric power configurations are also available, allowing silent and emission-free operation where required. In addition, travel speeds of up to 2.40 km/h (depending on configuration) provide efficient movement around job sites, enhancing workflow efficiency.

Built for Longevity, Safety, and Professional Reliability

The CMC i23 Access Platform is built with heavy-duty structural components, insulated materials, and precise hydraulic systems engineered for long-term daily operation. Additionally, its proportional controls allow smooth, accurate boom movements, reducing operator fatigue. As a result, it delivers the reliability and performance expected by professional power-grid, telecoms, and street-lighting service providers.

Key Specifications

• Max. working height: 22.8 m

• Max. outreach: 10.0 m (with 180 kg)

• Basket capacity: 180 kg

• Basket dimensions: 0.6 × 0.6 × 1.1 m

• Basket rotation: +90°

• Turret rotation: ±200° (400° continuous)

• Electrical insulation: Up to 46 kV (from CMC website)

• Total weight: 3,930 kg

• Stowed dimensions:

  • Length: 7.20 m (with bracket rotated)

  • Height: 1.99–2.15 m

  • Width: 0.89 m

• Slope capability:

  • Ramp attack (basket side): 16°/8°

  • Ramp attack (engine side): 7°/10°

  • Longitudinal: 19° (34%)

• Outrigger plate Ø: 0.18 m

• Ground pressure:

  • Foot: 9.03 kg/cm²

  • Tracks: 0.28 kg/cm²

• Power options:

  • Kubota D902-E4B diesel (16.1 kW / 21.6 hp)

  • Optional 120 V auxiliary electric motor

• Fuel tank capacity: 30 L

• Travel speeds: Up to 2.40 km/h (engine-dependent)

Summary

In summary, the CMC i23 Access Platform is a highly specialised insulated spider lift built for safe, efficient, and compliant operation near high-voltage lines. Thanks to its 46 kV insulation, double pantograph geometry, compact size, and advanced stabilisation system, it offers unmatched performance for utility professionals. Therefore, this CMC i23 spider lift is the ultimate choice for electrical contractors, networks teams, and maintenance crews requiring both outstanding reach and guaranteed electrical safety.

–
