New Mowi 850 Trailer (Timber) MO7771

1 Video

Machine Details

Industry Arboriculture and Forestry
Condition New
Asset Type Crane, Trailer (Timber)
Hours/Mileage (or N/A?)
Make Mowi
Model 850, P25 Crane
Age New
Seller type Direct
Drive Type PTO
Fuel or Power type N/A
Stock id MO7771
Features
  • Direct from manufacturer
  • Low and No Deposit
  • Manufacturers Warranty
  • National Delivery
  • Trailer Solutions
  • VAT Deferral Available

New Mowi 850 Trailer (Timber) MO7771

Let's find out what they have to say about this machine...

The MOWI 850 is a 9-ton timber trailer equipped with MOWI’s specially designed forest buggy with carriage control and MOWI P25 crane.

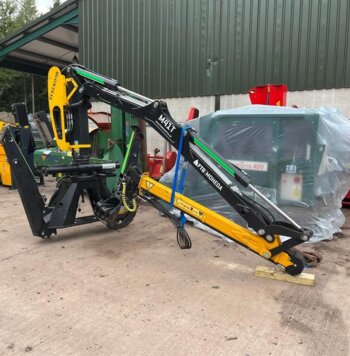

Easy to drive crane

A newly developed crane with unique features; easy to drive, good accessibility, stability and safety. Oil Flow is only 20-25 l / min.  In addition, P25 has improved movement patterns and better parking position.  Telescopic legs come as standard.  The range is 5.2 meters and lifting capacity of 400 kg at full length.  Alternatively the Mowi P30 crane offers a range of 5.7 meters and lifting capacity of 450 kg at full length.

Machine Specification


Trailer 850 Crane P25
Load Area: 2.0 m2 Reach: 5.2 m
Load Capacity: 9000 kg Lifting Torque: 26 kNm
Weight: 1220 kg Lifting Capacity Max Reach: 400 kg
Central Beam: 160 mm x160 mm x8 mm Slew Torque: 8.5 kNm
Axles: 60 mm x60 mm Slewing Angle: 360
Standard Equipment: Req. oil Flow: 20 – 25 l/min
Frame Steering: Yes System Pressure: 170 bar
Hydraulic Support Legs: Optional Weight without Grab & Rotator: 520 kg
Stakes, (2 per bunk): 4 Standard Equipment
Wheel dim: 400/60×15.5 Hydraulic Valve: Multilever
Third Bunk: Optional Rotator: 3 ton
Optional Equipment Grab: G-160 L
Extra Bunks with Stakes: Yes Optional Equipment:
Dividing Stakes: Work Lights Crane Arm: Yes
Winch, Trailer Mounted: Yes Winch, Crane Mounted: Yes
Remote Control for Winch: Yes Remote Control: Yes
Brakes: Drum/Disc Braked Link: Yes
Real Lights (inbuilt in bar): Yes Valve Alternative
LED Rear Light: Optional 2-Lever Mech: Yes
Alt Wheel Dim: 400/60×15.5 Traction 2-Lever + Elec On/Off: Yes
Stake Extensions: PCL Low-Pressure Servo: Yes
Hydraulic Banks: EHC Electric Servo: Yes
Toolbox: Yes Radio Control Crane: Yes
