TP 175 Wood Chipper for sale

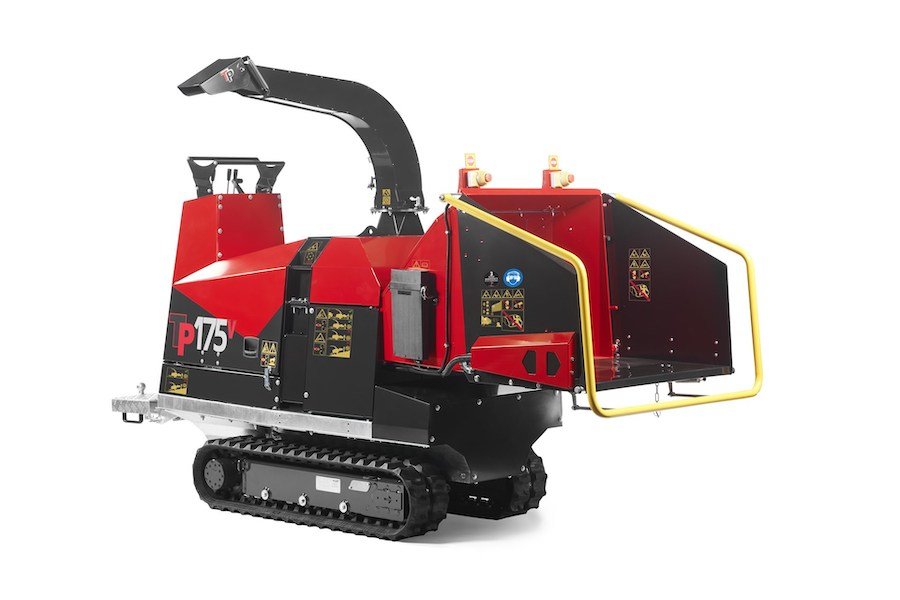

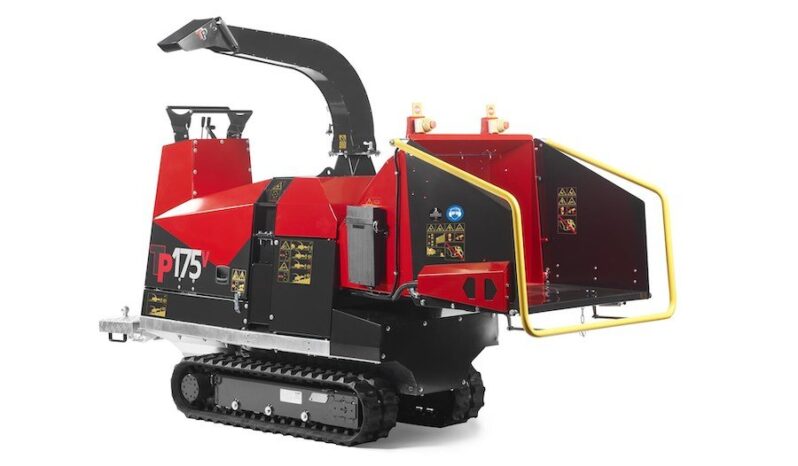

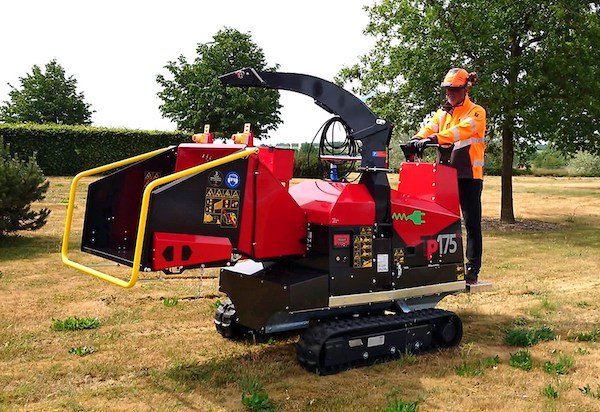

The TP 175 TRACK is an exceptional wood chipper designed for versatility and ease of manoeuvrability. This wood chipper excels in all types of areas, especially those challenging for other vehicles to access. It comes standard with manual levers featuring a safety switch, conveniently operated from a secure platform.

Transitioning to its features, the TP 175 is equipped with an automatic clutch system, known as TP STARTER, along with the stress control system, TP PILOT+, to effectively prevent engine overload. These advanced systems ensure smooth operation and extended machine life.

Additionally, there are optional features available to enhance the TP 175’s capabilities. An electric winch, boasting a drawing power of 2722 kg, is ideal for navigating steep terrains. Moreover, a tow bar with a capacity of 1000 kg can be added, making it easy to attach a trailer for transporting the machine.

For environmental considerations, the wood chipper’s exhaust fumes are efficiently directed through the spout. The machine also offers the best ground clearance in the market at 200 mm, with belts that can move in and out for optimal stability.

The TP 175 wood chipper features a roller opening of 175 x 191 mm (7”) and a wide funnel measuring 920 mm, facilitating easy and efficient feeding of materials. The Easy-Service system simplifies maintenance with just one tool needed to replace two knives in under three minutes.

Infeed Specifications

• Roller Opening: 175 x 191 mm
• Number of Rollers: 2
• Roller Position: Horizontal

Chipper Type and Performance

• Chipper Type: Disc Chipper
• Chipping Angle: 90º
• TP OPTICUT: Yes
• TP TWIN DISC: Yes
• Number of Knives: 2
• Number of Cuts per Turn: 2
• Woodchip Size: 4-10 mm
• Rotor Speed: 1750 r/min
• Rotor Diameter: 599 mm
• Rotor Weight: 69 kg
• Transmission: TP STARTER
• Counter Knife Horizontal: 1 Turnable
• Counter Knife Vertical: 1
• Replacement of Wearing Plate: No
• Wearing Plate: Yes
• TP CHIP KIT: Optional

Spout System Options

• TP VARIO SPOUT: Optional
• TP FIXED SPOUT: Standard

Stress Control System

The TP 175 includes a robust stress control system, TP PILOT+, featuring TP EASY CONTROL, which ensures the machine operates efficiently under varying loads.

Engine Specifications

• Engine: Kubota D1305-E4B
• Fuel: Diesel
• Engine Power: 25 hp/18.5 kW
• Number of Cylinders: 3
• Fuel Consumption: 3 l/h

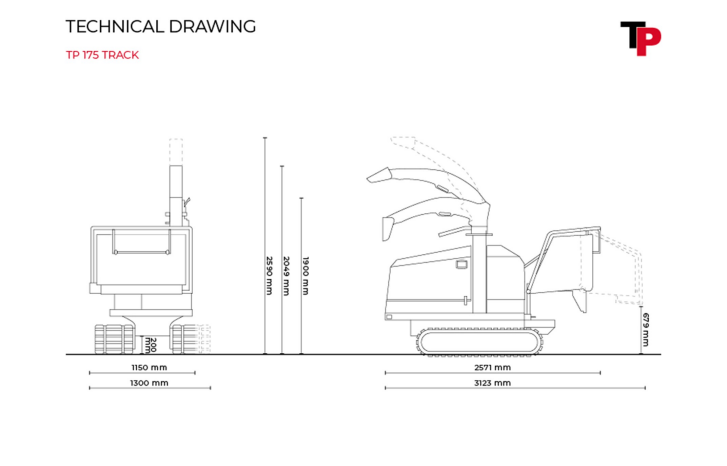

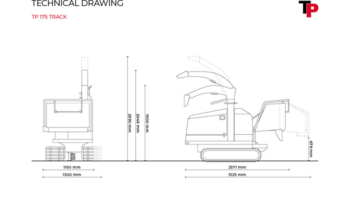

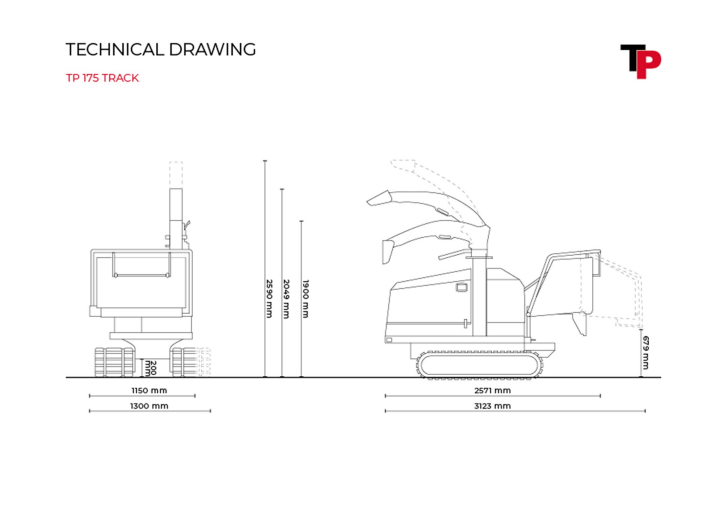

Dimensions and Weight

• Length (Transport/Operation): 2571 mm / 3123 mm
• Width: 1150 – 1300 mm
• Height (t/o) TP VARIO SPOUT: 1900 mm / 2049-2590 mm
• Height (t/o) TP FIXED SPOUT: 2049 mm
• Weight: 1150 kg

Remote Control

The TP 175 comes with a standard remote control, offering convenience and ease of use.

In summary, the TP 175 wood chipper is a versatile and powerful machine, designed for demanding jobs that require reliability and efficiency. Whether you’re dealing with dense materials or challenging terrains, the TP 175 is your go-to solution.
