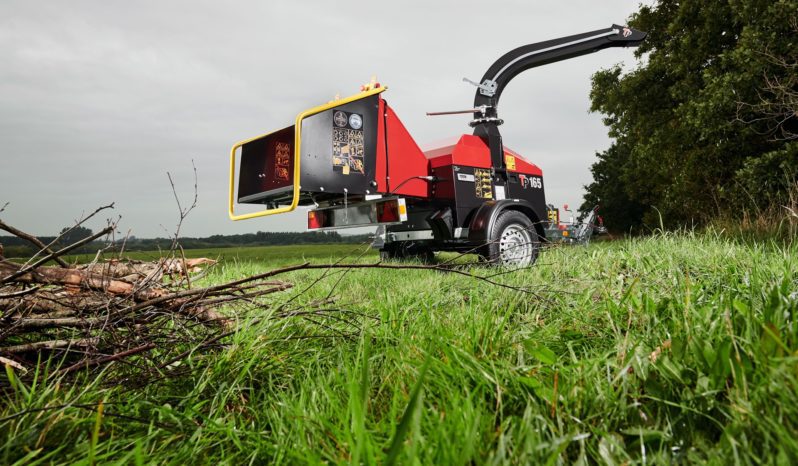

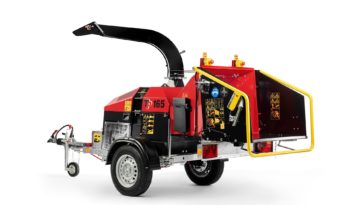

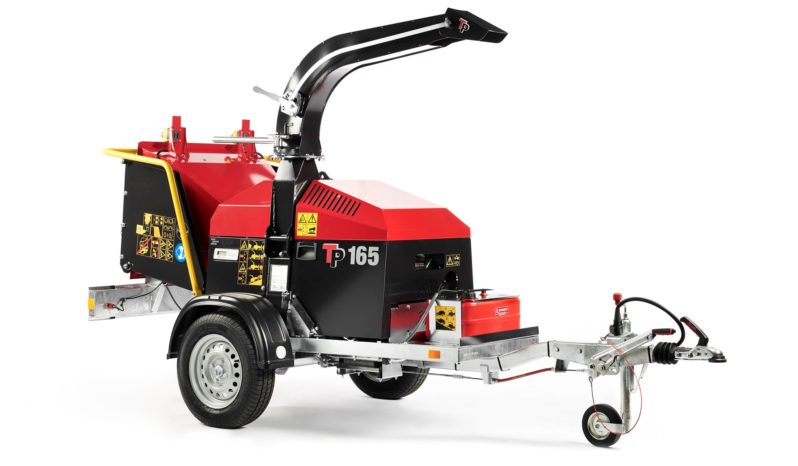

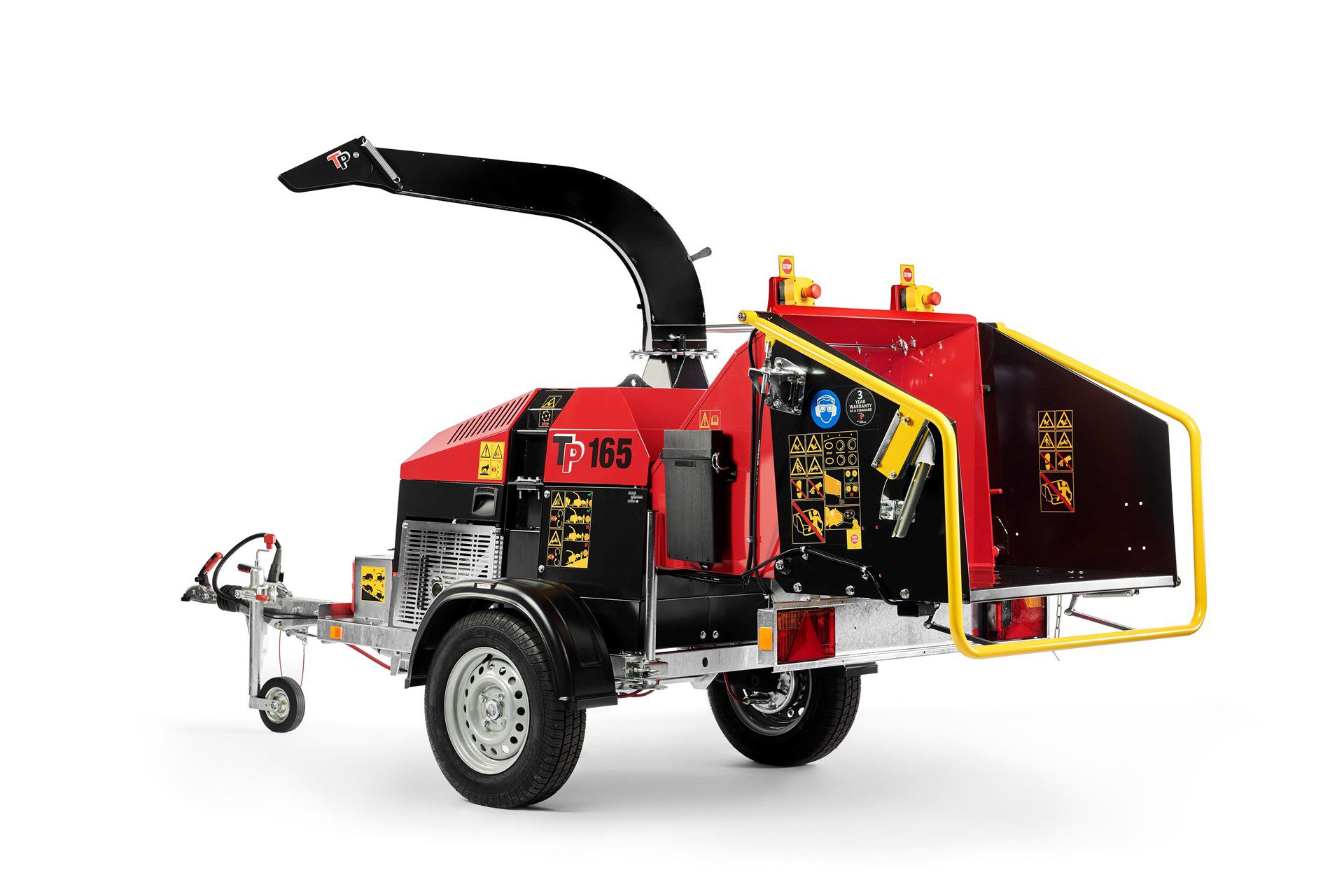

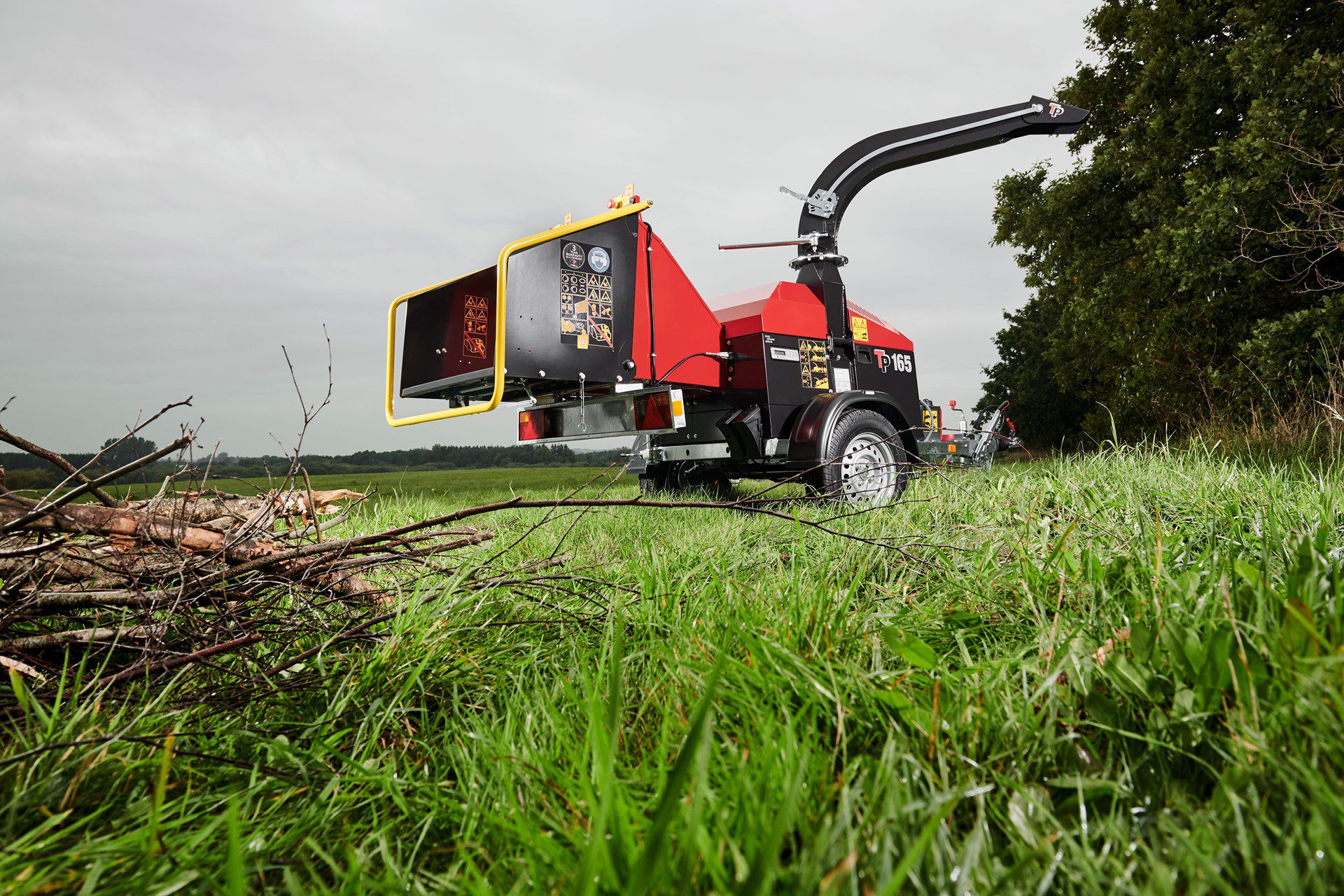

TP 165 MOBILE is ideal for various landscaping tasks for instance green keeping, parc and cemetery maintenance. The 2 hydraulic driven feed rollers give the machine a strong and aggressive in feed. The functions of the stress control system, TP PILOT, includes hour counter and control of start and stop of the feed rollers.
SPECIFICATIONS
Two aggressive in-feed rollers
(variable speed)
Roller opening 175x191mm (7”)
Wide funnel 920 mm
Fixed spout standard
Vario spout (option)
TP Pilot – no stress control
Clutch and E-Start
Easy-Service (1 tool, 2 knives, 3 minutes)
Variable roller speed
3 Years Manufacturers Warranty as Standard.
Infeed
Roller opening: 175 x
191 mm
Number of rollers: 2
Roller position: Horizontal
Chipper type
Chipper type: Disc
chipper
Chipping angle: 90º
TP OPTICUT: Yes
TP TWIN DISC: Yes
Number of knifes: 2
Number of cuts per turn: 2
Woodchip size: 4-12 mm
Rotorspeed: 1450
r/min
Rotordiameter: 599 mm
Rotorweight: 69 kg
Transmission: Clutch
Counter knife horizontal: 1
turnable
Counter knife vertical: 1
Replacement of wearing plate: No
Wearing plate: Yes
TP CHIP KIT: Option
Spout System
TP VARIO SPOUT: Option
TP FIXED SPOUT: Standard
Stress control
Stress control: TP
PILOT+
Engine
Engine: Kohler Pro CH
730

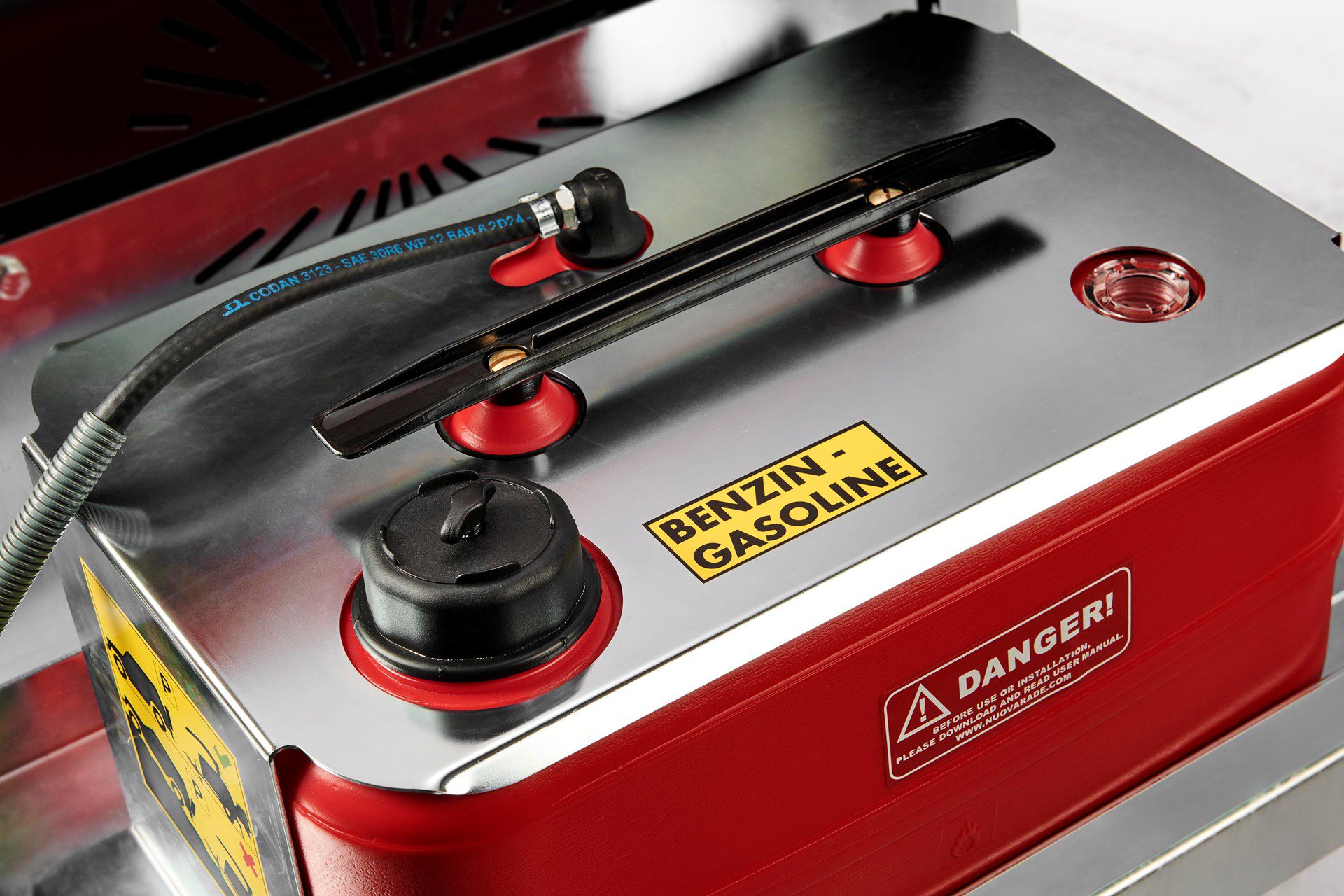

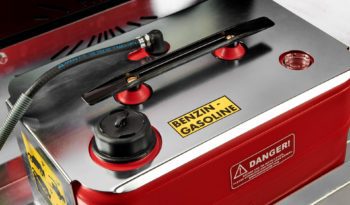

Fuel: Gasoline
Engine power: 23,5
hp/17 kW
Number of cylinders: 2
Fuel consumption: 5l/h
Dimensions
Length (transport/operation): 3515 mm/4013 mm
Width: 1416 mm
Height (t/o) TP VARIO SPOUT: 1750
mm/1965-2440 mm
Height (t/o) TP FIXED SPOUT: 1995
mm
Weight: 680 kg
–
