About this machine:

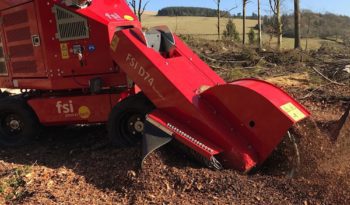

Self-propelled Stump Cutter with Hydraulic 4WD, remote control and diesel engine

The FSI D74 REMOTE for the professional use where stump grinding forms a major part of their daily life.

The engine:

With the NEW 74hp Kholer diesel engine, the large 720 mm grinding wheel and two-meter sweep all combine to give an incredible capacity. That, along with the 4-wheel drive and radio remote control, makes the D74 REMOTE your ideal partner for the grinding of tree stumps.

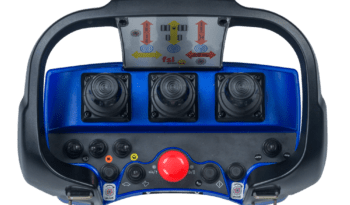

The radio control unit

All travel and stump grinding operations are controlled via the radio remote control. A battery charger with a spare battery for the radio control system is mounted on the machine. Includes a cable to connect directly to the remote control.

When the machine is equipped with the optional Dozer Blade, this also can provide extra grinding depth.

Autopilot swing function

The machine is also equipped with an autopilot swing function for optimum grinding capacity. The autopilot adjusts the swing speed based on the engine load. The autopilot optimises capacity and makes it simpler to operate the machine.

Standard delivery includes:

• Twin wheels.
• LED work light. Turn on and off via the remote control.

Cutting capacity:

Time spent for cutting stumps with diameter:

• ø400 mm: 2 min
• ø650 mm: 4 min
• ø1050 mm: 10 min

All based on figures from users grinding stumps 15 cm high to 15 cm below ground.

The engine:

• Engine size: 55 kW/74 hp
• Engine type:Kohler KDI 2504 TCR, water cooled
• Fuel type:Diesel
• Fuel tank:40 liter
• Hours per tank:App. 15 hours

Cutting head:

• Cutting disc diameter: 720 mm
• Tooth system: 3 x turnable
• Tooth diameter: 28,5 mm
• No of teeth’s: 28
• Max cutting depth: 123,5 mm
• Clutch: Mechanical with e-control
• Cutting disc drive: T-Gearbox and V-belt system
• Sweep: Hydraulic sweep

Transmission:

• Ground drive: 4WD hydrostatic with diff. lock
• Traction wheels: ø450 x 210, 10 ply
• Steering wheels: ø450 x 210
• Brakes: Automatic

Cutting dimensions:

• Cutting height above ground: 600 mm
• Cutting depth below ground: 380 mm (With Dozerplate 600 mm)
• Cutting sweep width: 2000 mm
• Sweep speed: Adjustable – Auto pilot

Operator control:

• Control panel: Radio remote control

Measurements:

• Length: 3100 mm
• Width: 1520 mm (Without twin wheels 890 mm)
• Height: 1510 mm
• Weight: 1650 kg

–
