The machine

Self-propelled Stump cutter with Tracks and diesel engine, also available as a Remote Control Version with option for Dozer Blade on both models.

The new track version increased the terrain capability, and thus transport to stumps that need to be removed has been optimised. Another great benefit is the extreme stability achieved when grinding down a stump because of the high dead weight.

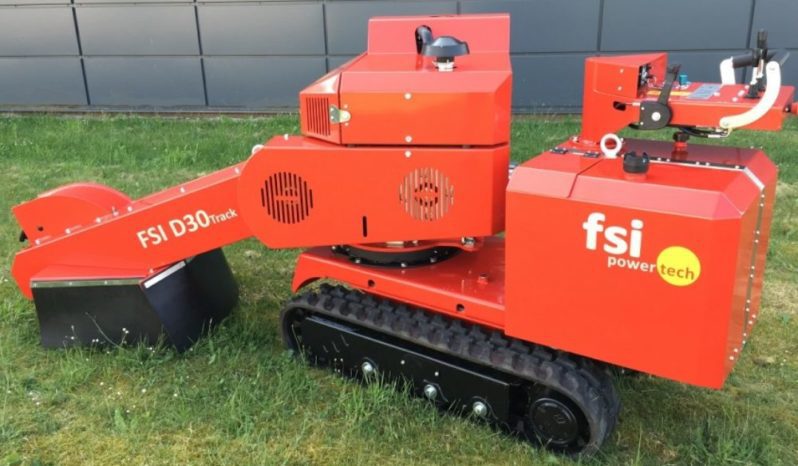

FSI D30 TRACK is equipped with a 30 HP Kubota water-cooled diesel engine and a cutting disc that is 470 mm in diameter. Hydraulic cylinders provide the stump grinder’s up/down and sideways movement. The machine is 775 mm in width, and with the belts in the outer position, machine width is 1050 mm. Total weight is 950 kg.

All machine operation, including moving the stump grinder and grinding down stumps is executed via the handlebar, so the operator can stand behind the machine during operation and move towards the work site, and the panel can be turned during stump grinding, providing a good overview of the stump during the stump grinding process. An ergonomic safety bar on the panel functions as a support for the operator’s hands and as an emergency stop, since it must be activated when moving the stump grinder and when grinding down stumps. To ensure maximum visibility and use, the machine is equipped with powerful LED work lights.

Cutting capacity

Time spent for cutting stumps with diameter:

• ø400 mm:6 min
• ø650 mm:12 min
• ø105 mm:35 min

All based on figures by stumps 15 cm high to 15 cm below ground

Engine

• Engine size: 22 kW/30 hp
• Engine type: Kubota D1305-E3B, watercooled
• Fuel type: Diesel
• Fuel tank: 35 liter
• Hours per tank: App. 10 hours

Cutting head

• Cutting disc diameter: 470 mm
• Tooth system: 3 x turnable
• Tooth diameter: 24,5 mm
• No of teeth’s: 16
• Clutch: Electro hydraulic with brake
• Cutting disc drive: V belt system
• Sweep: Hydraulic sweep

Transmission

• Tracks: Hydraulic
• Speed: Up to app. 3 km/t
• Brakes: Automatic
• Extension: Hydraulic. Width +275 mm

Cutting dimensions

• Cutting height above ground: 800 mm
• Cutting depth below ground: 380 mm
• Cutting sweep width: 1350 mm
• Sweep speed: Adjustable

Measurements

• Length: 2700 mm
• Width: 775 mm (Ext. 1050 mm)
• Height: 1220 mm
• Weight: 970 kg

–
