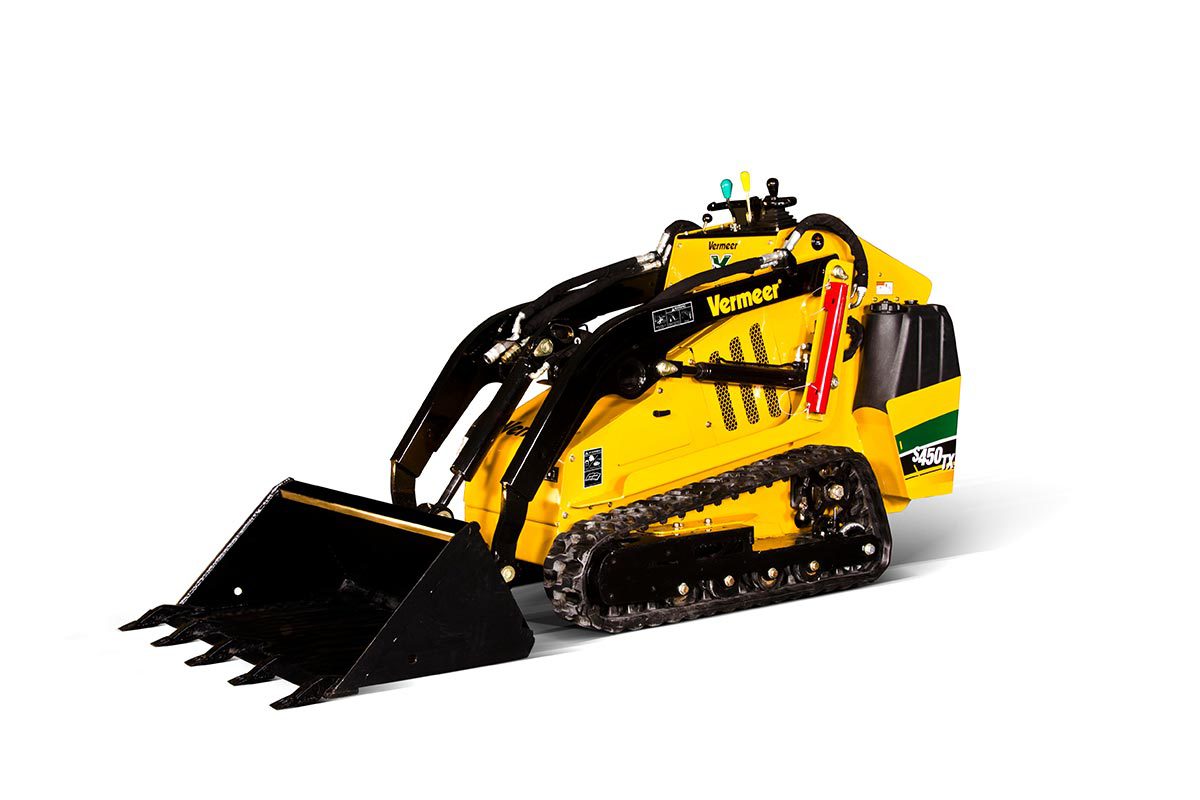

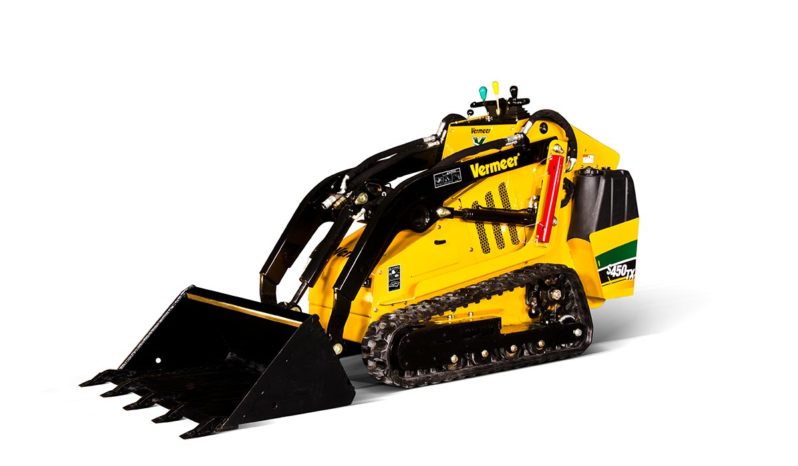

The machine
Whether it’s on a commercial worksite or home project, the S450TX can manoeuvre in and out of small spaces with ease. Featuring a 500 lb (226.8 kg) SAE-rated operating capacity and a tipping capacity of 1430 lb (648.6 kg), the S450TX is well-suited to both the needs of the rental customer and landscape contractor. The Kubota 24.8-horsepower (18.2 kW) diesel engine provides excellent torque performance and is designed for those who use attachments requiring greater engine torque. What’s more, the S450TX is track-driven, with a spring-cushioned operator platform for added safety and comfort. Versatile and equipped with a 6’ (1.8 m) dump height, this mini skid steer saves labour and time.
Key features
• The single, pilot-operated joystick offers the operator a smooth range of operation without balancing the engagement of two separate controls.
• The S450TX has both a wide [9” (22.9 cm)] track and narrow [7” (17.8 cm)] track available. The 7” (17.8 cm) track offers the customer a narrow footprint that can easily access traditional 36” (91.4 cm) gate entrances, while the 9” (22.9 cm) track offers reduced ground pressure for increased flotation.
• Rear panel provides access to important components such as the radiator, electrical system and hydraulic valves for routine maintenance and service.
• The undercarriage features a high track-mounted sprocket, reducing premature wear/tear on sprocket from rocky soil conditions, while the ADI cast sprocket is heat-treated for longer life. The higher mounting and heat treating allow for a longer-lived sprocket and lower cost of operation.
Machine specification
General Dimensions & Weights – |
|
Design: |
Stand-on / track-drive |
Length with Standard Bucket: |
242.3 cm (95.4″) |
Length without Standard Bucket: |
191.5 cm (75.4″) |
Width with Standard Bucket: |
106.7 cm (42”) |
Width Without Standard Bucket: |
90.8 cm (35.8″) |
Height: |
135.6 cm (53.4″) |
Height (to Hinge Pin): |
182.9 cm (72”) |
Ground Clearance: |
16.5 cm (6.5″) |
Weight (Standard Bucket, Diesel Engine): |
1102.2 kg |
Weight (No Bucket, Diesel Engine): |
1043.3 kg |
Engine – |
|
Make and Model: |
Kubota D902 |
Fuel Type: |
Diesel |
Fuel Tank Capacity: |
28.4 L |
Gross Horsepower: |
24.8 hp / 18.5 kw |
Cooling System: |
Liquid |
Maximum Angle of Inclination: |
30 deg |
Track Performance – |
|
Rated Operating Capacity (SAE): |
226.8 kg |
Tipping Capacity (With 79.38 kg operator): |
648.6 kg |
Travel Speed: |
3.5 mph / 5.6 km/h |
Ground Pressure (Narrow Tracks): |
3.4 psi / 23.4 kPa |
Ground Pressure (Wide Tracks): |
2.7 psi / 18.6 kPa |
Operational – |
|
Steering: |
Single, pilot operated joystick |
Lift: |
Single, dual axis |
Curl: |
Single, dual axis |
Hydraulic System – |
|
Hydraulic System Flow: |
47.3 L/min |
Hydraulic System Pressure: |
203.4 bar |
Tank capacity: |
30.3 L |
–
