New Toro Dingo 323 Mini Loader MO7861

1 Video

Machine Details

Industry Arboriculture and Forestry, Construction, Farming, Groundcare
Condition New
Asset Type Mini Loader
Hours/Mileage (or N/A?)
Make Toro
Model Dingo 323
Age New
Seller type Dealer (Franchised)
Drive Type Wheeled
Fuel or Power type Diesel
Stock id MO7861
  • Additional attachments
  • Franchised Main Dealer
  • Free theft protection HPI check by Arblease
  • Low and No Deposit
  • Low Rate Finance Offer
  • Manufacturers Warranty
  • National Delivery
  • Trailer Solutions
  • VAT Deferral Available
  • Wheeled

New Toro Dingo 323 Mini Loader MO7861

Let's find out what they have to say about this machine...

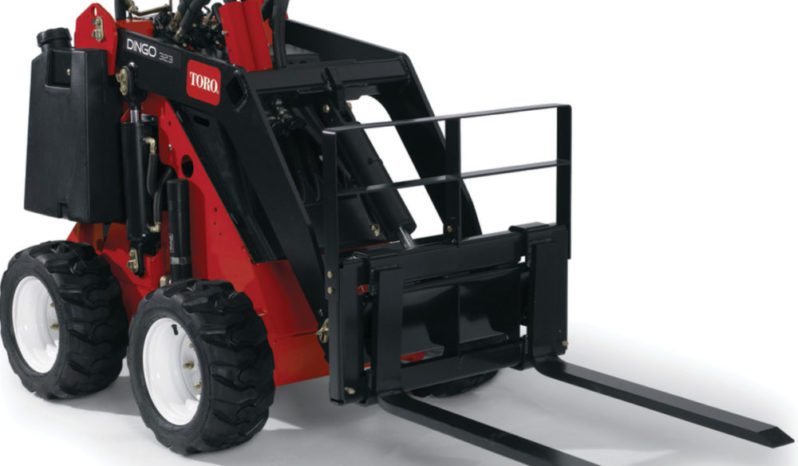

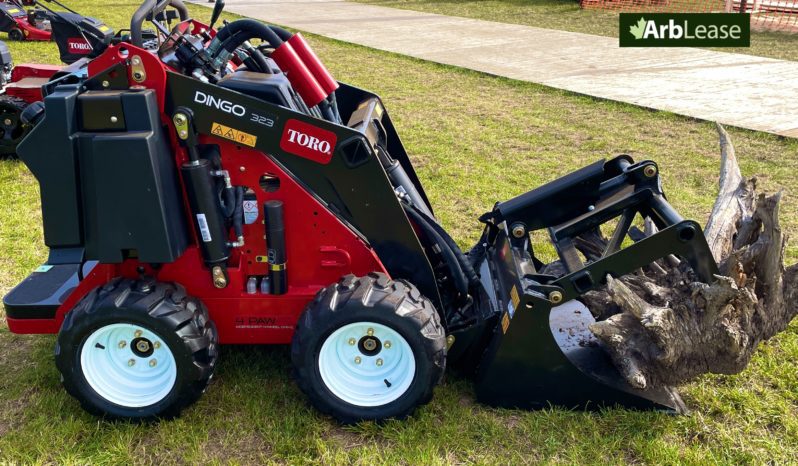

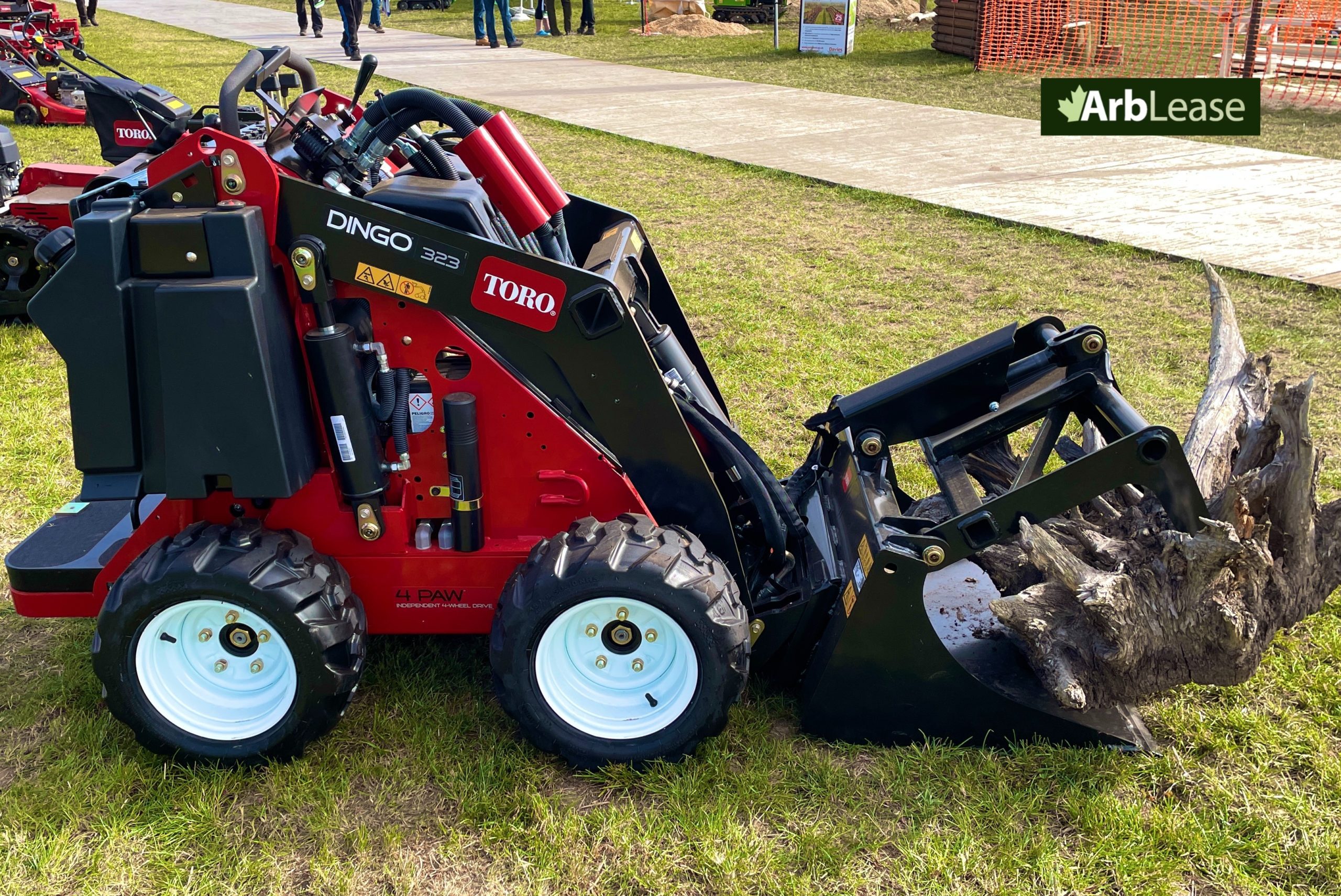

For sale. New Toro Dingo 323 Mini Loader Skid Steer

The machine

Equipped with the Toro Dingo designed 4-Paw®, independent 4-wheel drive system, the Dingo® 323 at 3000 psi (206.7 bar) offers incredible power and durability. Delivering 10.8 gpm (40.9 lpm) of hydraulic power with this 23 hp (17.2 kw) Kohler engine will guarantee jobsite productivity.

Key features

2 Ground Speeds

Operator can select low or high-speed ground speed. Low speed directs more hydraulic power to the attachment and high speed directs more power to the wheels. The low speed option also helps new operators shorten their learning curve.

4-Paw® Independent 4-Wheel Drive

Directs hydraulic flow and pressure to all the wheels, at all times. You can power through the toughest conditions and reduce the likelihood of getting stuck. The 4-Paw eliminates the use of chains – reducing maintenance and eliminating the chance of a broken chain.

Compact Size & Manoeuvrability

Get the Dingo into tight spaces where only hand labour could go before. Add to the easy spin steer turning, and you’ll be able to power through the toughest jobs. This means landscape contractors can use the incredible power of the Dingo to save time and money on labour.

Fingertip Controls

Easy-to-reach 4-stick fingertip hand controls enable all functions from the operator position. The operator controls all movements of the machine and attachments with his fingertips.

Durable Hood

Durable, flexible resin hood protects your engine from damage and keeps dirt and debris out of the engine compartment. Your machine will run longer with less downtime.

Hydraulic Power

Up to 10.8 gpm (40.9 lpm) at 3000 psi (207 bar) hydraulic system gives you incredible hydraulic power to auger up to 30″ (76 cm) holes or trench 36″ (91 cm) deep.

2-Pump Hydraulic System

Independent power can be supplied to the attachment or the wheels. The 2-pump system offers a high flow of 10.8 gpm (37.9 lpm) and a low flow of 4 gpm (15.1 lpm). This provides better usage of power to get the job done as well as not relying on one pump for shared power!

Quick Attach System™

Each attachment is equipped with Toro’s unique Quick Attach System™. The Dingo QAS makes changing attachments as simple as turning 2 levers. Each attachment is designed to be installed in less than 1 minute. (One exception – the backhoe takes 2 minutes.)

Extended Run Times

Two durable, 4-gallon gas tanks provide fuel for a full day of hard work.

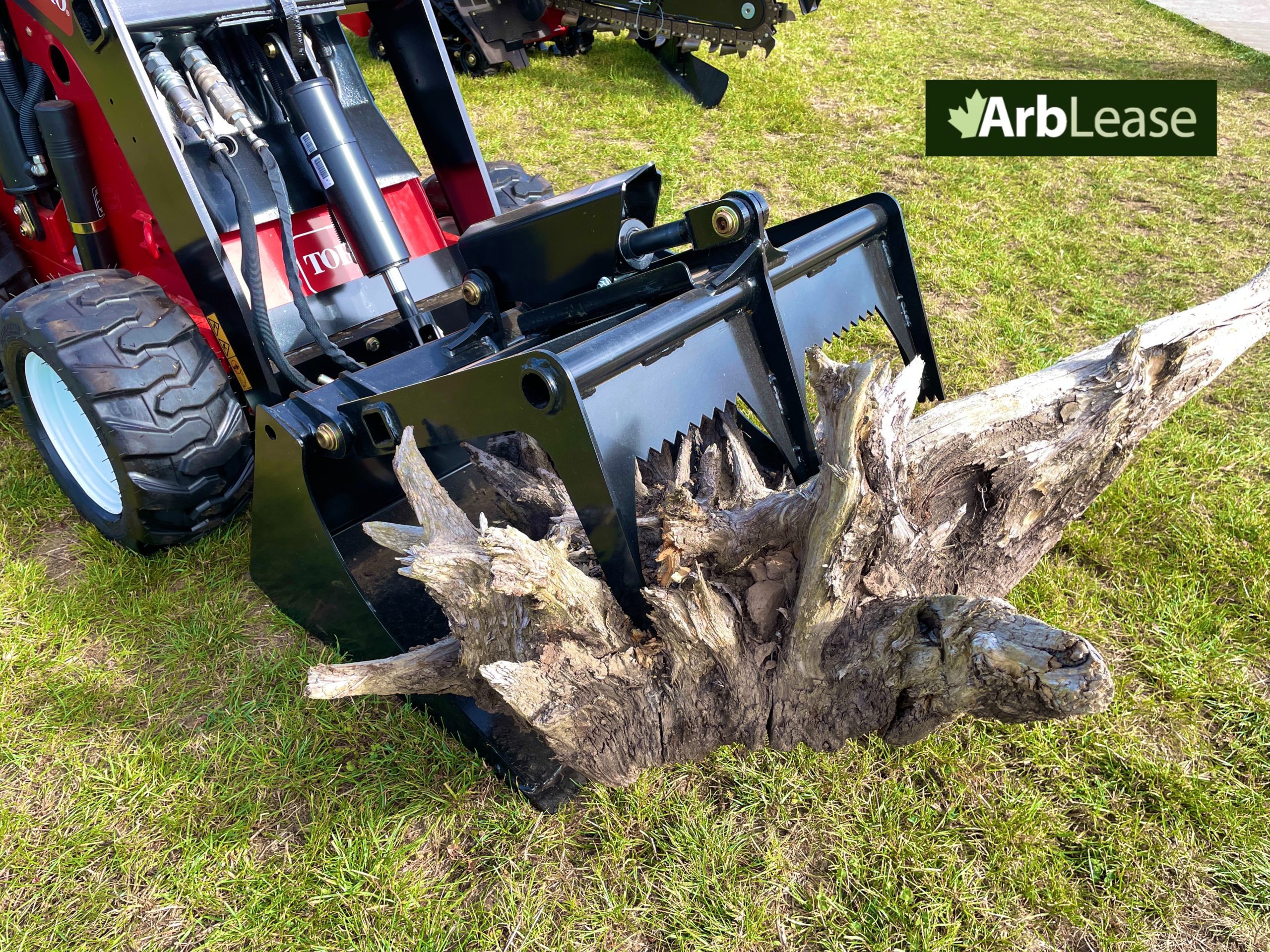

Compact Utility Loader Attachments

From earth moving, tilling and trenching to levelling, lifting, hauling and demolishing, all Toro Dingo models can be equipped with over 35 attachments to handle any of task.

Machine specification

Air Filter: Two-stage, heavy-duty, remote
Controls: Key, throttle, choke
Cooling System: Air Cooled

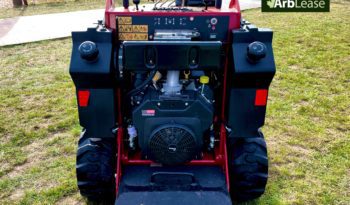

Engine: 23 hp (17.2 kw) Kohler® Command Series CH23
Ground Clearance: 5.8″ (15 cm) front & rear
Ground Speed: 0-3.7 mph (0-6 km/h) / 0-3.7 mph (0-6 km/h)
Height: 48.7″ (123.7 cm)
High Flow Pump: 10.8 gpm (40.9 lpm)
Hinge Pin Height: 66″ (167.6 cm)
Hydraulic Reservoir Cap: 14.8 gallons (56 L)
Hydraulic System Pressure: 3,250 psi
Length: 82.2″ (208.8 cm) w/bucket; 62″ (157.5 cm) w/o bucket
Loader Hydraulic System: 2 control levers- push/pull
Low Flow Pump: 4 gpm (15.1 lpm)
Operating Capacity: 515 lbs. (234 kg)
Reservoir Capacity: 17 gallons (64 liter)
Steering Controls: Zero turn type w/ 2 controls
Tip Capacity: 1,030 lbs (467 kg)
Warranty: Product – One Year* / Engine – Two Year*
Weight: 1,567 lbs (711 kg)
Width: 40.5″ (103 cm) standard tires; 35″ (90 cm) narrow tires
