Arblease > Listings > Arboriculture and Forestry > Ryetec KTS 8.5 Ton Forestry Trailer & 6.4 M Crane

New Ryetec KTS 8.5 Ton Forestry Trailer (Timber) MO7945

Buy from £74.63 Per Week

Buy from £323.39 Per Month

Get A Quote

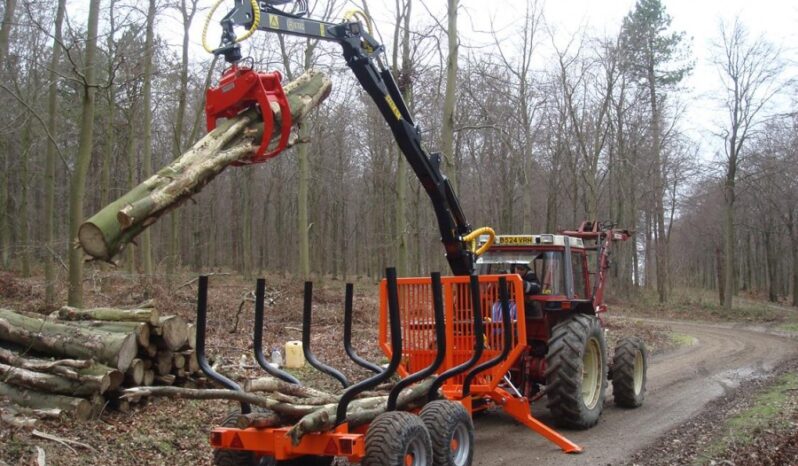

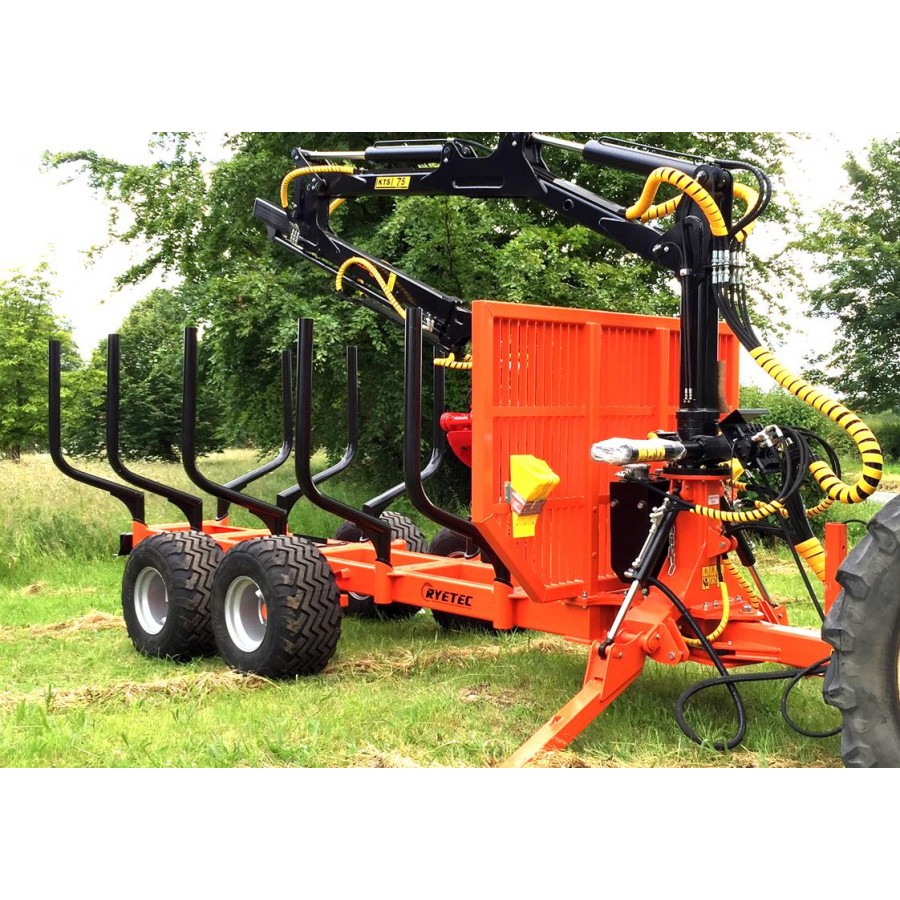

Ryetec KTS 8.5 Ton Forestry Trailer & 6.4 M Crane full

Machine Details

Industry

Arboriculture and Forestry

Condition

New

Asset Type

Trailer (Timber)

Hours/Mileage (or N/A?)

Make

Ryetec

Model

KTS 8.5 Ton Forestry

Age

New

Seller type

Direct

Drive Type

PTO

Fuel or Power type

N/A

Stock id

MO7945

Features

Bespoke colour options
Direct from manufacturer
Franchised Main Dealer
Low and No Deposit

Low Rate Finance Offer
Manufacturers Warranty
National Delivery
VAT Deferral Available

Wheeled

New Ryetec KTS 8.5 Ton Forestry Trailer (Timber) MO7945

Let's find out what they have to say about this machine...

The Ryetec KTS forestry timber forwarding trailers offer a premium machine, designed and manufactured to operate reliably for years in the toughest conditions.

CAPACITIES:

5 tons with an effective standard load area of 1.8m³
11 and 10 tons with an effective standard load area of 2.35m³
NEW 13-ton ladder frame trailer & slide out rear extension with load area 3.4m³

FEATURES & OPTIONS AVAILABLE:

40° Steering drawbar with twin rams (single ram on 8.5 ton).
Robust spine chassis 180mm x 180mm with 6mm (8.5 ton),8mm (10 ton) or 10mm (11 ton) thick wall. Ladder chassis on 13 ton with rear slide out extension (4metres + 0.8m)
80mm x 80mm gate tested to withstand 1/3 of trailers rated load on top corner without failure complete with saw box (not 8.5 ton).
Pivoting tandem axle bogies with 30° articulation for rough ground.
6 metre long bed (4m on 13ton) with optional slide out extension or longer chassis up to 4.8 metres.
Powered axle.
Brakes, hyd on 2 or 4 wheels or air on 4 wheels

CHOICE OF CRANES:

5.3 metres reach
6.4 metres reach
6.7 metres reach
7.5 metres reach

STANDARD FEATURES INCLUDE:

Top mounted main lift cylinder to avoid damage and better lifting performance, lift capacity increases as log is lifted rather than decrease compared with conventional lower mounted ram.
4 slew rams for maximum torque and even load on slewing gears with maintenance free rack shims.
‘Comfort link’ allows second arm to fold completely back to main arm to load right up to gate.
Tractor hydraulically powered (PTO option).
Folding legs for maximum stability and speed of operation.
Crane easily removed from trailer to use on tractor 3-point linkage.
Remote greasing for main lift pivot pin and main lift cylinder

OPTIONS AVAILABLE:

Basic lever to fully proportional controls, light weight and remote are also available.
Winch with remote control.
PTO power pack.
Boom lights.
Telescopic legs

Edit
	Trailer 8.5 ton	Trailer 10.0 ton	Trailer 11.0 ton
Maximum load	8.5 ton	10.0 ton	11.0 ton
Standard crane; it is possible to install a crane up to 7.5 m	5.3 m	6.4 m	6.7 m
Effective load area	1.80 m2	2.35 m2	2.35 m2
Chain saw box	Extra equipment	Yes/standard	Yes/standard
Gate	Yes/standard	Yes/standard	Yes/standard
Gate height	1100 mm	1400 mm	1400 mm
Stake height	1100 mm	1400 mm	1400 mm
Dimensions on stakes	89 x 6 mm	89 x 6 mm	89 x 6 mm
Stake extensions	No, stakes are in one piece	No, stakes are in one piece	No, stakes are in one piece
Divider stakes, for timber sorting	Extra equipment	Extra equipment	Extra equipment
No. of bolsters	2	3	3
More bolsters can be fitted	Yes	Yes	Yes
Hydraulic support legs	Yes/standard folding legs	Yes/standard folding legs	Yes/standard folding legs
Telescopic support legs	Extra equipment	Extra equipment	Extra equipment
Trailer steering	Yes/standard	Yes/standard	Yes/standard
No. of steering cylinders	1	2	2
Max. steering angle	40° to both left and right	40° to both left and right	40° to both left and right
Towing eye to tractor	Forged towing eye for hitch connector	Forged towing eye for hitch connector	Forged towing eye for hitch connector
Lubricatable bushings or link bearings in all joints	Yes/standard	Yes/standard	Yes/standard
Diameter of steering pivot	70 mm	70 mm	70 mm
Bogies	Yes/standard	Yes/standard	Yes/standard
Tip angle of bogies	+/- 30°	+/- 30°	+/- 30°
Axle separation	995 mm	995 mm	995 mm
Distance on bogie from centre of front axle to centre of pivot	530 mm	530 mm	530 mm
Track width	1622 mm	1622 mm	1622 mm
Tyre size standard	400/60 x 15.5	400/60 x 15.5	400/60 x 15.5
Other sizes available to order	14-ply	14-ply	14-ply Tractor tread
Brakes, drum or disc	Extra equipment	Extra equipment	Extra equipment
Number of hydraulic outlets required	2 double-acting Extra equipment available to enable use with 1 single-acting and 1 return.	2 double-acting Extra equipment available to enable use with 1 single-acting and 1 return.	2 double-acting Extra equipment available to enable use with 1 single-acting and 1 return.
Brake hoses run fully protected in frame or substantial steel tubes	Yes/standard when trailer is fitted with brakes	Yes/standard when trailer is fitted with brakes	Yes/standard when trailer is fitted with brakes
Support foot	Extra equipment	Extra equipment	Extra equipment
Hydraulic wheel drive	Extra equipment	Extra equipment	Extra equipment
Stub shaft dimension	70 x 70 mm	80 x 80 mm	80 x 80 mm
Central frame of special steel	180 x 180 x 5 mm	180 x 180 x 8 mm	180 x 180 x 10 mm
Loading width at bottom of load area	910 mm	910 mm	910 mm
Loading width at top of stakes	1830 mm	1830 mm	1830 mm
Loading width at top of stakes for brushwood equipment	3000 mm	3000 mm	3000 mm
Overall height including crane at hitch height 400 mm (This dimension depends on the height of the tractor hitch hook)	About 2668 mm	About 2968 mm	About 2773 mm
Recommended tractor power for full load	45 hp and up	60 hp and up	65 hp and up
Weight, complete timber trailer	2170 kg	2345 kg	2570 kg
Weight complete, without crane and 3-point adaptor	1360 kg	1495 kg	1555 kg

	Crane 5.3 m	Crane 6.4 m	Crane 6.7 m	Crane 7.5 m
Reach	5.3 m	6.4 m	6.7m	7.5 m
Comfort joint to simplify work	Yes/standard	Yes/standard	Yes/standard	Yes/standard
Hydraulic extension	No	Yes/1.2 m	Yes/1.2 m	Yes/2.0 m
Gross lifting force of crane	3.5 ton meter	3.5 ton meter	5.0 ton meter	5.0 ton meter
Grapple area of standard grapple	0.18 m2	0.18 m2	0.21 m2	0.21 m2
Fully rotating rotator	Yes/standard	Yes/standard	Yes/standard	Yes/standard
Rotator torque	750 Nm (75 kpm)	750 Nm (75 kpm)	750 Nm (75 kpm)	750 Nm (75 kpm)
Slewing attenuator on rotator link	Yes/standard	Yes/standard	Yes/standard	Yes/standard
Hydraulic support legs on the trailer when sold with crane	Yes/standard	Yes/standard	Yes/standard	Yes/standard
Telescopic support legs instead of support legs	Extra equipment	Extra equipment	Extra equipment	Extra equipment
Hydraulic support legs when the crane is sold with a 3-point adaptor	Mechanical: standard Hydraulic: extra	Mechanical: standard Hydraulic: extra	Yes/standard	Yes/standard
No. of slewing cylinders on slewing house	4	4	4	4
Slewing angle	370° (360° is a complete revolution)	370° (360° is a complete revolution)	370° (360° is a complete revolution)	370° (360° is a complete revolution)
Slewing torque	10.4 kNm (1 060 kpm)	10.4 kNm (1 060 kpm)	13.0 kNm (1 326 kpm)	13.0 kNm (1 326 kpm)
Height of slewing house	290 mm	290 mm	290 mm	290 mm
Hydraulic valve	7 slides	8 slides	8 slides	8 slides
Control levers	7 lever	1+1 levers with 2 functions each + 4 levers (known as 2-lever arrangement)	1+1 levers with 2 functions each + 4 levers (known as 2-lever arrangement)	1+1 levers with 2 functions each + 4 levers (known as 2-lever arrangement)
Other control lever systems available	Yes, extra equipment	Yes, extra equipment	Yes, extra equipment	Yes, extra equipment
Float position on hydraulic valve	On 2 functions: boom and slewing of crane	On 2 functions: boom and slewing of crane	On 2 functions: boom and slewing of crane	On 2 functions: boom and slewing of crane
Hydraulic valve suitable for open or closed hydraulic systems Closed hydraulic system for e.g. John Deere	Yes, extra equipment	Yes, extra equipment	Yes, extra equipment	Yes, extra equipment
Recommended pump capacity Lower or higher flows can be used: the crane will simply perform more slowly or faster	15-50 l/min	20-60 l/min	20-60 l/min	20-60 l/min
System pressure Lower pressure: lifting capacity will be reduced. Higher pressure: no increase in lifting capacity, as the hydraulic system is fitted with a pressure relief safety valve.	175 bar (175 kg/cm2)	175 bar (175 kg/cm2)	175 bar (175 kg/cm2)	175 bar (175 kg/cm2)
Maximum pressure	220 bar (220 kg/cm2)	220 bar (220 kg/cm2)	220 bar (220 kg/cm2)	220 bar (220 kg/cm2)
Lubricatable bushings or link bearings in all joints	Yes/standard	Yes/standard	Yes/standard	Yes/standard
3-point adaptor for 3-point hitch	28 mm category 2, 825 mm between hydraulic arms attachment points	28 mm category 2, 825 mm between hydraulic arms attachment points	28 mm category 2, 825 mm between hydraulic arms attachment points	28 mm category 2, 825 mm between hydraulic arms attachment points
Weight, including grapple, rotator and 3-point adaptor	810 kg	850 kg	1 015 kg	1 065 kg
Weight, 3-point adaptor	250 kg	250 kg	250 kg	250 kg
Weight, grapple	65 kg	65 kg	80 kg	80 kg

All performance specifications are pressure dependent are calculated at 175 bar pressure.

–
