About this machine:

Made for more to keep pace with you!

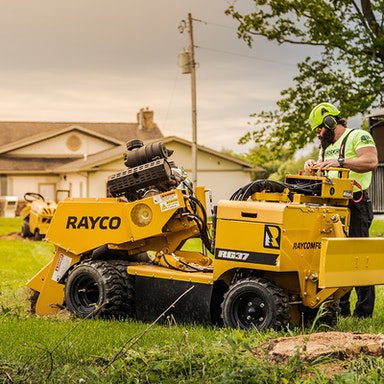

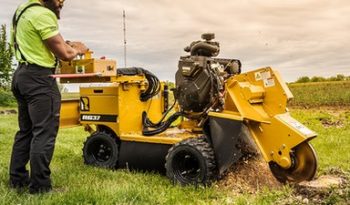

The Rayco RG37 Wheeled Super Jnr Stump Grinder is the original self-propelled, backyard stump cutter that professionals have relied on since 1986. Today, there’s a Super Jr model to fit every job and every budget. To maximize visibility while cutting, all Super Jr’s have the drivetrain located on the far side of the cutter wheel. And Rayco’s exclusive, swing-out control station gives operators the best view while cutting and swings in-line with the machine for travel through gates.

Wide, flotation tires

Wide, flotation tires with bar tread give the Super Jr a firm grip on the terrain, and dual wheels can be added for extra stability. Rayco’s exclusive slewing ring pivot design lowers the center of gravity and lets the Super Jr cut at maximum depth across the whole swing path.

Key features:

• Slewing ring pivot design increases cutting width
• Full cutting depth across entire width of cut
• Lower center of gravity
• Wide tires for enhanced traction and flotation
• Swing-out operator station
• Controls swing in line for travel
• through gates
• Gasoline engines with heavy duty
• air filter
• 37-hp Vanguard engine
• Centrifugal precleaner
• Hydraulic backfill blade
• Two speed ground travel
• Optional dual rear wheels
• & Command Cut
• Optional 4-Wheel drive

Machine specification:

• Weight: 1,830 lb/831 kg
• Length: 114 ”/290 cm
• Height: 52 ”/132 cm
• Width: 35 ”/89 cm
• Width with Dual Wheels (Maximum): 52.5 ”/133 cm
• Ground Drive: 2 Speed
• Tires: 18 x 8.5-10 R4 4-ply
• Backfill Blade: Standard
• Engine: 37-hp Vanguard/27.6-kW Vanguard
• Fuel Type: Gasoline/Petrol
• Maximum Rated Torque: 51 ft-lb at 2500 RPM 69.5 Nm at 2500 RPM
• Fuel Tank Capacity: 5 gallon/18.9 L
• Electrical System: 12 volts/15 AMP alternator
• Oil Tank Capacity: 2 gallon/7.6 L
• Cutting Wheel Diameter: 17.25 ”/43.8 cm
• Cutting Wheel Thickness: 1 ”/2.5 cm
• Cutting Wheel Bearings: 1.5 ” Pillow Block Type / 3.81 cm Pillow Block Type
• Super Tooth®: 18 Total
• Clutch: Electromagnetic with “Quick Stop” Brake System
• Cutting Depth: 12 ” 30 cm
• Cutting Height: 24.5 ” 62.2 cm
• Cutting Width: 51 ” 130 cm

–

But are we right???

Our team loves to be right about everything! Don’t we all?!!!

However, sometimes we or our trusted team of supplies gets it wrong. If you find our technical data incorrect, please let us know so we can make it right.

Email: theteam@arblease.co.uk

Thanks for your support.
