KEY FEATURES:

• Hydraulic tip on standard machines (‘C/CH’ models) and manual tip on economy version (‘CE’ models)
• Heavy duty drive line with overrun clutch
• Flail inspection door for safer flail changing
• High quality cut with fine finish paddle flails and scarifying option (see overleaf)
• Height adjustable full width rear roller for accurate cutting with a striped finish
• Height adjustable front castor wheels with solid tyres for puncture free operation
• Robust and light steel framed fibreglass hopper
• Remote greaser for simpler maintenance
• Simple and adjustable category 1 three-point linkage for easy coupling to most compact tractors

Simple and Effective

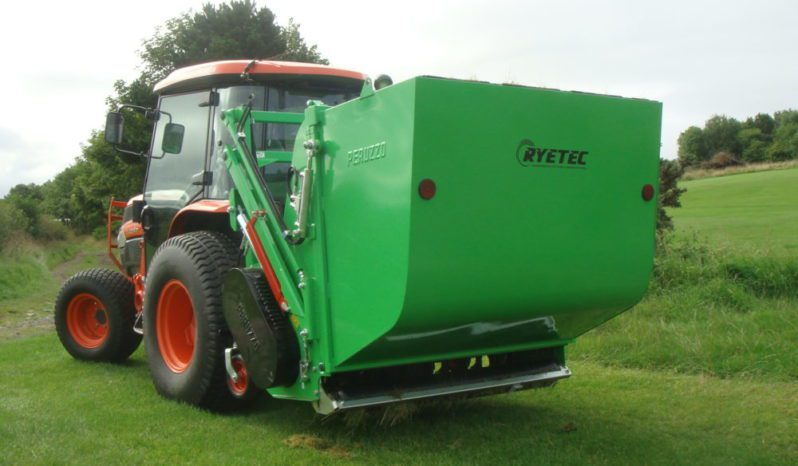

Mini flail mower collectors cut and collect on all types of grass from lawns to conservation areas and have scarifying capability. Their robust yet lightweight construction allows safe use on small tractors even with a full hopper of cuttings. The low-profile design allows use in situations where overall height is an important consideration, ideal in orchards and large gardens where overhanging branches are a problem. The Mini Collector can also be used during autumn to pick up leaves, litter and even hedge clippings. The powerful action of the paddle flails mulch any collected material, vastly reducing its volume and speeding up the composting process. The collected material is tipped hydraulically from the tractor seat, or via a manual lever opening for tractors without an external hydraulic supply. NEW HIGH TIP to 1.85 m is available on the 1.2 m and 1.6 m models.

Special Applications

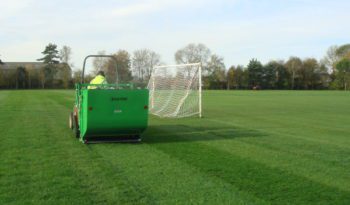

The robust yet relatively light construction of the Mini collectors, makes them ideal for specialist applications where machinery weight must be kept to a minimum to reduce compaction problems or surface damage. Golf greens are a perfect example and when fitted with scarifying blades, the collectors are ideal for use on both golf greens and tees, bowling greens and other areas which have traditionally been worked by pedestrian equipment. An optional front roller can be fitted instead of the front castors for more accurate control of scarifying height. The roller is mounted directly in front of the flail rotor and has a screw type adjustment giving very fine adjustment of scarifying depth and excellent ground following characteristics to prevent scalping.

–
