About the machine:

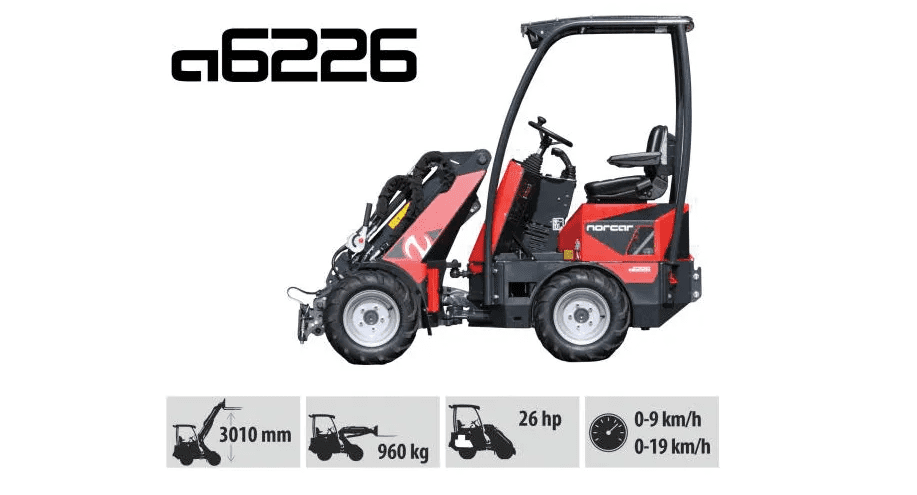

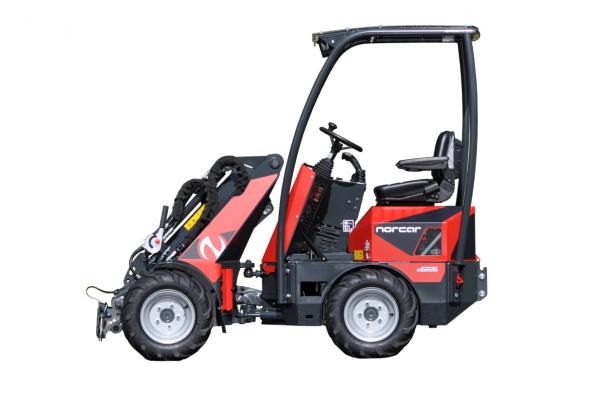

Norcar a6226 has the same compact design as the a6026, but with higher specifications as standard. Equipped with dual working hydraulic pumps, the machine is well prepared for attachments requiring high oil flow. Moreover, several functions can be used simultaneously without affecting each other, which makes work more efficient. The machine offers high pulling force, speed and lifting power as standard, and is a machine for professional use.

Machine specification:

Engine:

• Make: 26 HP Kubota
• Model: 1105
• Cylinders: 3
• Fuel type: Diesel
• Cylinder volume: 1123 cm3
• Cooling System: Fluid

Power:

• SAE, gross power: 19,4/26,4 kW/hp
• Max gross torque: 72 Nm
• At engine speed: 2200 r/min
• Max engine speed without load: 3000 r/min

Electrical system

• Battery: 12-53 V-Ah
• Generator: 40 A

Service volumes

• Cooling system: 6 L
• Engine oil: 5 L
• Fuel tank: 20 L
• Hydraulic tank: 50 L
• Hydraulic system total volume: 55 L

Performance

• Lifting power hydraulic: 1250 kg
• Breakout force 50 cm: 960 kg
• Tipping load, straight: 1150 kg
• Tipping load, articulated: 770 kg
• Operating weight: 1320 kg
• Drive speed low: 0-9 km/h
• Drive speed high: 0-19 km/h
• Pulling force high: 1100 kg
• Pulling force low: 550 kg

Hydraulic system

• Working hydraulics: (18+24) 42 L/min
• System pressure: 240 bar
• Drivetrain hydraulics: 63 L/min
• Drivetrain max system pressure: 350 bar

Cycle times

• Raising boom: 3,7 s
• Lowering: 2,2 s
• Folding in: 2,6 s
• Tipping bucket: 1,6 s
• Steering wheel rotations: 3/4 L/R rev

Tires

• Dimension: 23×8,5-12 IN

–
