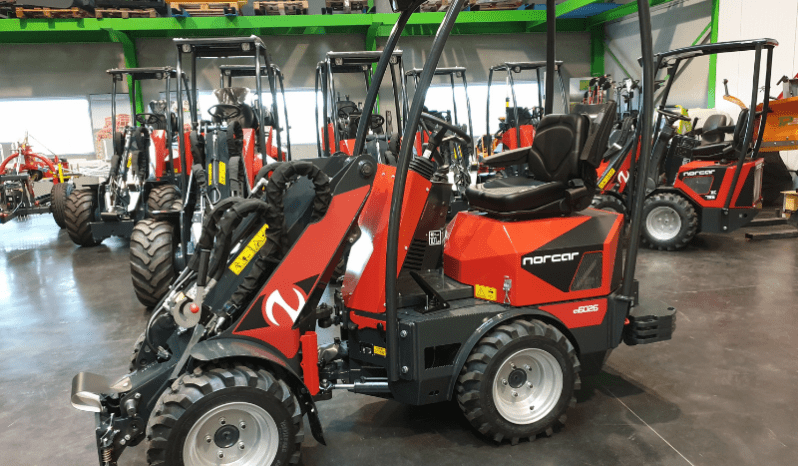

New Norcar a6026 Mini Loader MO7849

1 Video

Machine Details

Industry N/A
Condition New
Asset Type Mini Loader
Hours/Mileage (or N/A?)
Make Norcar
Model a6026
Age New
Seller type Dealer (Franchised)
Drive Type Wheeled
Fuel or Power type Diesel
Stock id MO7849
  • Additional attachments
  • Franchised Main Dealer
  • Low and No Deposit
  • Low Rate Finance Offer
  • Manufacturers Warranty
  • National Delivery
  • Trailer Solutions
  • VAT Deferral Available
  • Wheeled

New Norcar a6026 Mini Loader MO7849

Let's find out what they have to say about this machine...

Key features:

  • MultiFaster Quick release coupling
  • Tire 23 x 8,5 – 12 IN
  • Extension Boom
  • Hydraulic Outlet, front
  • Traction control

About the machine:

Norcar a6026 is essentially a versatile working machine. The stable extension boom allows high-lift tasks to be completed easily and safely. The lifting height with pallet forks is 2.8 meters. The lifting boom is simply and comfortably controlled using a joystick with an electric switch to control extension and auxiliary hydraulics.

Adjustable steering wheel

An adjustable steering wheel and a comfortable suspension seat provides a restful ride. The drive system with a foot throttle and direction pedal allows the loader to be controlled with incredible precision, even with demanding equipment and terrain. Norcar a6026 is an effective tool where jobs vary between loading trucks, shovelling snow, and moving soil.

MultiFaster Quick release coupling

The MultiFaster Quick release makes changes of hydraulic tools easy and quick. All the hydraulic connections are completed with a simple hand motion and makes it impossible to cross connect. Pressure is automatically released and no oil will leak.

Durable multi-purpose tire that can withstand heavy loads. Suitable for work on harder surfaces such as asphalt, concrete, and hard packed gravel. Machine width 107 cm.

Extension Boom

600 mm telescope gives good lifting height and reach. Electronically controlled with lifting boom’s joystick.

Hydraulic Outlets

Electrically operated double acting hydraulic outlets, front (1 and 2) and free return (3). Controls hydraulic tools directly with the joystick’s buttons. Mode for continuous operation and free return useful for eg. lawn mowers. Hydraulic oil flow max 24l/min.

Traction control

Provides better traction on slippery or uneven surfaces. Traction is guaranteed on the same side wheels.

Machine specification:

Engine –
Make: Kubota
Model: 1105
Cylinders: 3
Fuel type: Diesel
Cylinder volume: 1123 cm3
Cooling System: Fluid
Power –
SAE, gross power: 19,4/26,4 kW/hp
Max gross torque: 72 Nm
At engine speed: 2200 r/min
Max engine speed without load: 3000 r/min
Electrical system –
Battery: 12-53 V-Ah
Generator: 40 A
Service volumes –
Cooling system: 6 L
Engine oil: 5 L
Fuel tank: 20 L
Hydraulic tank: 50 L
Hydraulic system total volume: 55 L
Performance –
Lifting power hydraulic: 1150 kg
Breakout force 50 cm: 960 kg
Tipping load, straight: 960 kg
Tipping load, articulated: 770 kg
Operating weight: 1320 kg
Drive speed: 0-11 km/h
Pulling force: 950 kg
Hydraulic system –
Working hydraulics: 24 L/min
System pressure: 240 bar
Drivetrain hydraulics: 63 L/min
Drivetrain max system pressure: 350 bar
Cycle times –
Raising boom: 3,7 s
Lowering boom: 2,2 s
Folding in bucket: 2,6 s
Tipping bucket: 1,6 s
Steering wheel rotations: 3/4 L/R rev
Tires –
Dimension: 23 x 8,5-12 IN

Cab Options


Protects against flying debris when working, for example, with flail shredder, hydraulic hammer, or snow blower.
Windshield wipers and washer included.

Light cab without doors

Effective protection against weather, which is very handy for tasks with short intervals between getting on and off.
The rear window can be opened.  In the upper position, it acts effectively as rain protection while using eg. digger attachment. Two gas springs hold the rear window stable in the open position.
Windshield wipers and washer included.

Light cab

Complete cab with an effective heater.  Equipped with a lockable door with solid steel frame, and an opening rear window. In the upper position, it acts effectively as rain protection while using eg. digger attachment. Two gas springs hold the rear window stable in the open position.
The cabin is heated by a 4kW heater. The heat is steplessly controlled, and the fan speed has three steps.
The heater has fresh air filter as standard.
Windshield wipers and washer included.

Available with over 40 attachments – (Attachments are not included within the monthly rental shown).
