Worky-Quad SSQ 15 D BIG RELIABILITY IN All SITUATIONS

CAST Groups articulated loaders and skid steers guarantee strength and reliability and a level of detailed design to create an unrivalled user experience. Our aim is to provide various sectors with the flexibility to complete multiple tasks with ease, therefore, increasing productivity levels.

Our SSQ range represents a small revolution for the varied needs of having to work in confined spaces within multiple sectors. Thanks to the interchangeability of multiple accessories, SSQ can operate with extreme ease in a variety of locations larger machines just can’t access.

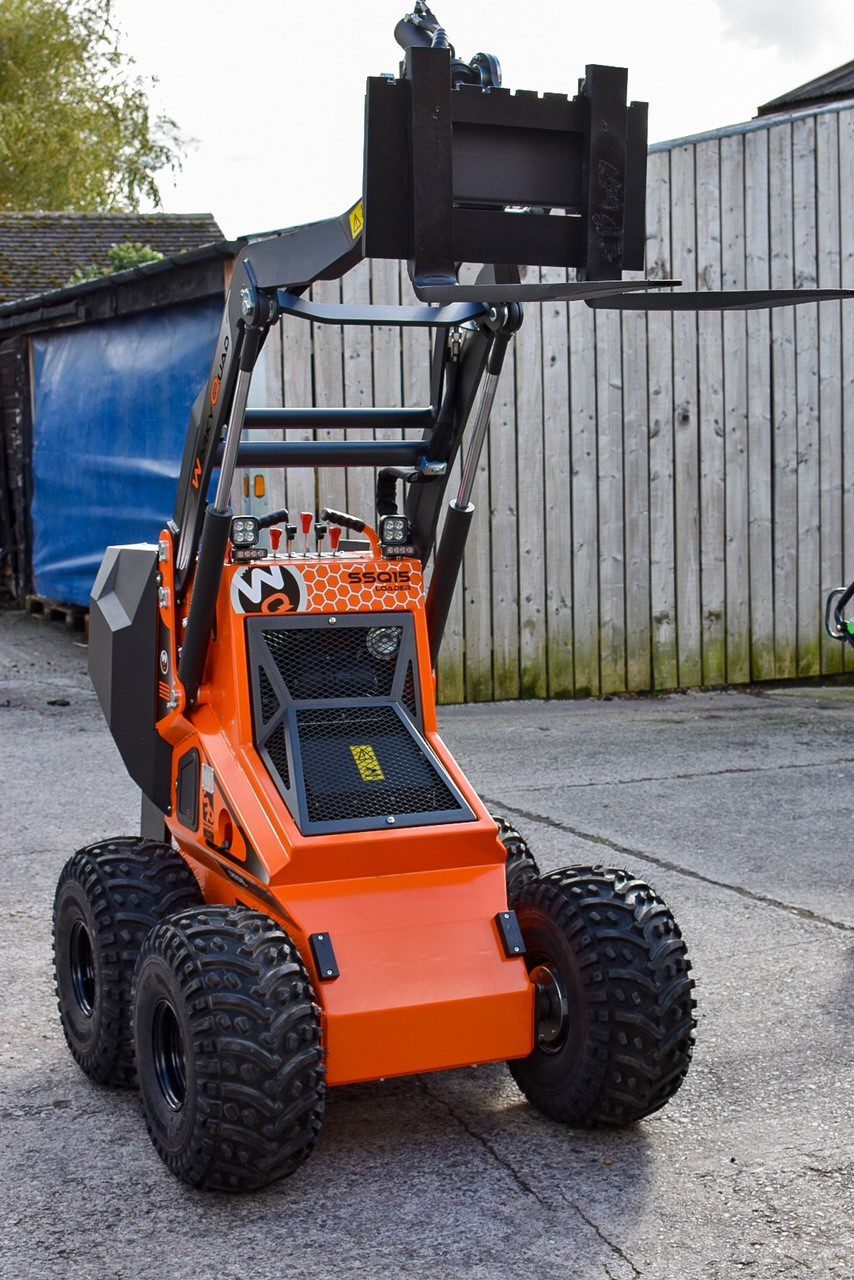

The compact SSQ 15 D Skid Steer

CAST’S SSQ range of Skid steers are the perfect tool when having to work fine spaces or where access is an issue.

Thanks to the interchangeability of multiple accessories the SSQ range can perform multiple tasks helping to minimise labour whilst improving productivity, allowing you to complete tasks easily saving time and costs.

SSQ 15 D machine specification:

• Hydraulic Lifting capacity: 600 Kg
• Capacity (kW/Hp): 14.6 Hp
• Hydraulic Flow: 25.6 l/min
• Engine: KUBOTA Z602-E4B
• Capacity (kW/Hp): 10.9 / 14.6
• Startup: Electric
• Displacement cm3 / no. of cylinders: 599/2
• Revolutions per minute (rpm): 3200
• Adjusted amount of revolutions (rpm): 3200
• Cooling: Liquid
• Fuel / tank capacity (l)Diesel/14
• Drive system: Hydrostatic 4WD wheel motors
• Speed ​​(km/h): 0-6 (proportional)
• Traction force (Kg): 558
• Hydraulic drive system (l/bar): 25.6 / 200
• Hydraulic working pressure (l/bar): 25.6/200
• Hydraulic tank capacity (l): 25
• Standard tyres: 23×8.50-12
• Electrical system (V): 12 v
• Battery capacity (Ah): 45 Ah
• Steering: Skid Steer
• Loading capacity (Kg): 350 * with counter weights
• Dimensions (L mm x W mm x H mm): 1525x1100x1258
• Weight (kg): 684
• Throttle Lever: standard
• Hour Meter: Optional
• Intergrated Counter Weights 50Kg: Optional
• Lateral Protection: N/A

–

But are we right???

Our team loves to be right about everything! Don’t we all?!!!

However, sometimes we or our trusted team of supplies gets it wrong. If you find our technical data incorrect, please let us know so we can make it right.

Email: theteam@arblease.co.uk

Thanks for your support.
