New Toro TX700 Narrow Track Mini Loader 16504

Machine Details

Industry Arboriculture and Forestry, Construction, Farming, Groundcare
Condition New
Asset Type Mini Loader
Hours/Mileage (or N/A?) N/A
Make Toro
Model TX700 Narrow Track
Age New
Seller type Dealer (Franchised)
Drive Type Tracked
Fuel or Power type Petrol
Stock id 16504
  • Additional attachments
  • Direct from manufacturer
  • Franchised Main Dealer
  • Free theft protection HPI check by Arblease
  • Low and No Deposit
  • Low Rate Finance Offer
  • Manufacturers Warranty
  • National Delivery
  • Part Exchange Considered
  • Seasonal finance payment plans available
  • Specialist farm finance payment schemes available
  • Tracked
  • Trailer Solutions Available
  • VAT Deferral Available

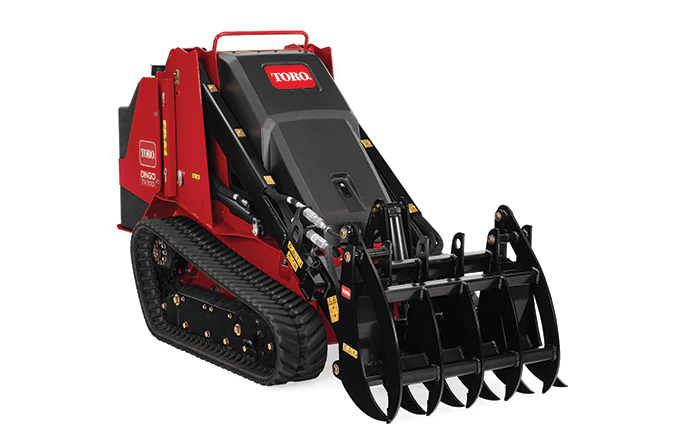

New Toro TX700 Narrow Track Mini Loader 16504

Let's find out what they have to say about this machine...


For sale new Toro Dingo TX700 Narrow Track Mini Loader for sale. Low fixed-rate finance with Arblease!

The New Toro Dingo TX700 Narrow Track Mini Loader Overview

The New Toro Dingo TX700 Narrow Track Mini Loader is designed to give you more power in a compact package, the Toro® Dingo® TX 700 expands labor savings beyond just homeowner projects.


This no-nonsense workhorse packs 700 lbs of rated operating capacity in a smaller footprint, so it’s ideal for projects where homeowners and contractors are working in confined spaces.

Smaller Footprint

This machine packs 700 lbs. of rated operating capacity in a smaller footprint, making it ideal for projects where homeowners and contractors need to reach tight areas or work in confined spaces.

Easy Operation

Featuring patented Dingo TX 1000 traction controls and a dedicated stand-on platform, the Dingo TX 700 is easy to use and offers increased comfort and visibility to the operator.

Job Versatility

This machine is compatible with dozens of attachments, including multiple types of buckets, adjustable forks, a grapple, leveler, utility blade and more, the Dingo TX 700 can be used for a wide range of jobs.


  • Air Filter Remote single element
    Dump Angle 42 degrees
    Dump Height (cm) 134.4
    Dump Height (inches) 52.9
    Engine Make Yanmar
    Engine Model 3TNV80F
    Fuel Tank (gallons) 5.5
    Fuel Tank (liters) 20.8
    Fuel Type Gasoline
    Ground Clearance (cm) 13.3
    Ground Clearance (inches) 5.25
    Ground Pressure 13 psi
    Ground Speed Forward (mph) 4
    Ground Speed Foward (km/h) 6.4
    Ground Speed Reverse (km/h) 6.4
    Ground Speed Reverse (mph) 4
    Hinge Pin Height (cm) 186.7
    Hinge Pin Height (inches) 73.5
    Hydraulic Flow Auxilary 13.7 gpm
    Hydraulic Flow Traction 14.5 gpm (each pump)
    Hydraulic Pressure 3,000 psi
    Loader Arms Radial
    Manufacturer’s Gross HP Rating (HP) 24.5
    Manufacturer’s Gross HP Rating (kW) 18
    Max Operating Height (cm) 246.4
    Max Operating Height (inches) 97
    Oil Capacity (liters) 3.4
    Oil Capacity (quarts) 3.6
    Overall Height (cm) 140.5
    Overall Height (inches) 55.3
    Overall Length w/bucket (cm) 261.1
    Overall Length w/bucket (inches) 102.8
    Overall Length w/o bucket (cm) 208.3
    Overall Length w/o bucket (inches) 82
    Overall Width (cm) 86.9
    Overall Width (inches) 34.2
    Rated Operating Capacity – 35% of Tip Capacity (kg) 318
    Rated Operating Capacity – 35% of Tip Capacity (lbs) 700
    Reach – Fully Raised (cm) 78.7
    Reach – Fully Raised (inches) 31
    Reservoir Capacity (gallons) 10
    Reservoir Capacity (liters) 37.9
    Tip Capacity (kg) 907
    Tip Capacity (lbs) 2000
    Track Length (inches) 126.6
    Track Length(cm) 321.6
    Track Width (cm) 13.7
    Track Width (inches) 5.4
    Tracks Camso B-Tread
    Traction Dual Hydrostatic Pump
    Weight (kg) 1250
    Weight (lbs) 2756
    Wheelbase (inches) 39
