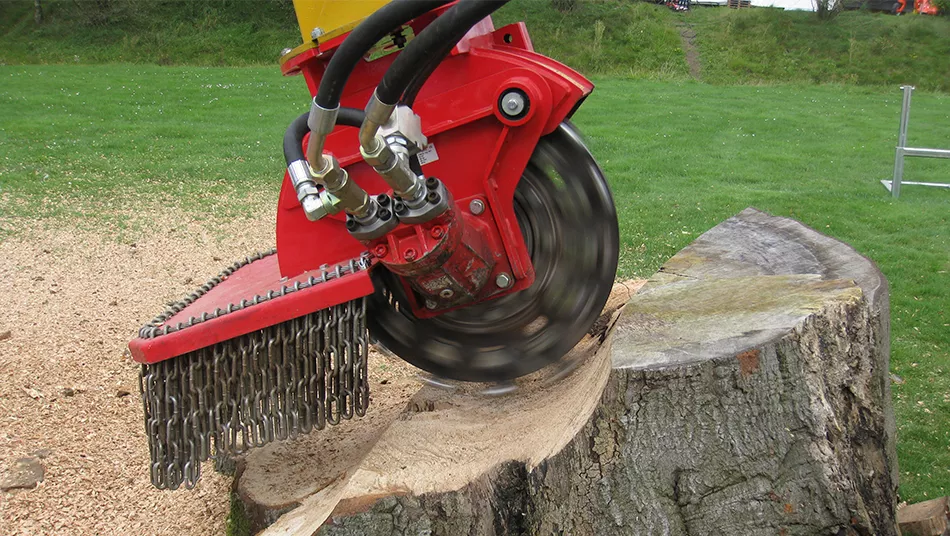

FSI H65 100-130 Stump Grinder

High-capacity hydraulic stump grinder designed for large excavators and maximum cutting performance.

Short tagline: Extreme stump grinding power for high-flow excavators and demanding site work.

Engine & drive

The FSI H65 100-130 is powered entirely by the carrier machine’s hydraulic system. Because of this, it removes the need for a separate engine while utilising the full power of the excavator.

This model is designed for larger excavators typically in the 10–20 tonne range, depending on hydraulic capacity. It requires high oil flow between approximately 100–130 l/min, which allows the attachment to deliver very high cutting performance.

The hydraulic motor drive system powers the cutter wheel directly. As a result, the system remains robust, efficient, and suitable for continuous heavy-duty operation.

Deck / working head

The FSI H65 100-130 features a large cutter wheel equipped with the FSI 25 tooth system, designed for aggressive cutting and efficient chip removal.

Because of its size and hydraulic power, the attachment can handle large stumps and dense hardwood with ease. The cutting system works both above and below ground level, ensuring complete stump removal.

The excavator boom provides full flexibility for positioning. Therefore, operators can work at different angles and reach difficult areas that smaller machines cannot access.

Frame / chassis / build

The FSI H65 100-130 uses a heavy-duty steel construction built for the most demanding professional applications. The attachment is supplied with a mounting plate, which can be adapted to suit a wide range of excavators.

Its robust design ensures durability during continuous heavy-duty work. In addition, the compact attachment format allows easy transport when mounted to the carrier machine.

Because it integrates with existing excavators, it eliminates the need for separate stump grinding machines on site.

Comfort & controls

The FSI H65 100-130 is operated directly from the excavator cab. Because the operator remains inside the machine, safety and visibility improve significantly compared with pedestrian stump grinders.

Control of the grinder comes through the excavator’s hydraulic system. As a result, operators can position the cutting head precisely and maintain efficient working progress.

The attachment also reduces physical strain, since the host machine handles all movement and positioning.

Why choose FSI H65 100-130?

Choose the FSI H65 100-130 if you need maximum stump grinding performance for large-scale operations. While smaller attachments suit lighter work, this model is built for heavy-duty applications and high-output environments.

Because it combines high hydraulic flow capability, a large cutting system, and compatibility with larger excavators, it delivers efficient and reliable stump removal for contractors, forestry work, and land clearance projects.

FSI H65 100-130 – Key Specifications

• Hydraulic stump grinder attachment
• Designed for approx. 10–20 tonne excavators
• Hydraulic oil flow requirement: approx. 100–130 l/min
• Hydraulic motor drive system
• Heavy-duty cutter wheel with FSI 25 tooth system
• Suitable for high-flow hydraulic systems
• Grinding capability above and below ground level
• Durable steel construction
• Supplied with mounting plate for carrier adaptation
• Built for heavy-duty professional use

–
