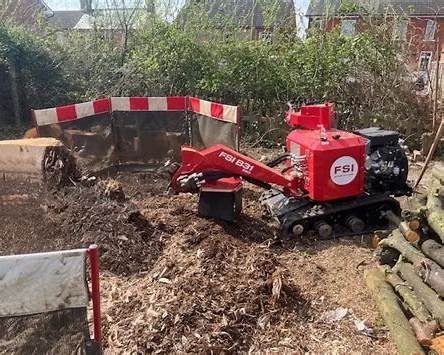

FSI B31-980 Stump Grinder

Compact tracked stump grinder delivering professional cutting performance with minimal maintenance.

Short tagline: Narrow-access stump grinding with powerful petrol performance and hydraulic cutter drive.

Engine & drive

The FSI B31-980 uses a Kohler ECH749 V-Twin petrol engine producing around 26.5 hp (19.8 kW). Because this engine provides strong torque and reliable output, it supports demanding stump grinding work throughout the day.

Unlike many stump grinders, the FSI B31-980 uses a fully hydraulic cutter wheel drive rather than traditional belts. As a result, daily belt adjustments are eliminated and overall maintenance requirements are reduced.

The machine also features counter-rotating hydraulic tracks, which allow precise movement and excellent traction on uneven terrain. Consequently, operators can position the grinder accurately when working in gardens, woodland areas, and restricted-access sites.

Cutting head

The FSI B31-980 uses a 467 mm cutting wheel equipped with eight FSI 25 cutting teeth. These hardened teeth are designed for durability and efficient chip removal.

Hydraulic cylinders control the cutter arm sweep movement. Therefore, the machine can grind across a wide working area without constant repositioning.

The cutting system provides a working envelope reaching approximately 68 cm above ground level and about 40 cm below ground level. As a result, operators can remove stumps thoroughly while also tackling deeper root systems.

Frame / chassis / build

The FSI B31-980 is built on a compact tracked chassis designed for professional arborist work. With a width of approximately 98 cm, the machine remains narrow enough for many access points while still providing increased stability compared with smaller models.

The low centre of gravity and robust steel frame improve stability during grinding operations. In addition, the heavy-duty construction allows the machine to handle demanding workloads typical of commercial stump removal.

The machine weighs roughly 680–700 kg, providing strong stability without compromising manoeuvrability.

Comfort & controls

The FSI B31-980 features a swing-out operator control panel. Because the panel rotates outward, the operator gains a clearer view of the cutting area while maintaining easy access to controls.

A safety bar system automatically disengages the cutter wheel when released. Consequently, the system improves operational safety while maintaining simple machine control.

Additional features such as LED work lighting, lifting points, and accessible service areas help simplify daily use and transport.

Why choose FSI B31-980?

Choose the FSI B31-980 if you need a tracked stump grinder with strong cutting performance and reduced maintenance requirements. While belt-driven machines remain common, the hydraulic cutter drive system simplifies servicing and improves durability.

Because it combines powerful petrol performance, hydraulic drive technology, and a stable tracked chassis, the machine suits professional arborists and contractors working across a wide range of environments.

FSI B31-980 – Key Specifications

• Kohler ECH749 petrol engine

• Approx. 26.5 hp (19.8 kW)

• Hydraulic cutter wheel drive

• Counter-rotating hydraulic tracked drive

• Cutter wheel diameter: approx. 467 mm

• Teeth system: FSI 25 with 8 teeth

• Sweep width: approx. 120 cm

• Grinding height: approx. 68 cm above ground

• Grinding depth: approx. 40 cm below ground

• Maximum cut per sweep: approx. 3.6 cm

• Machine width: approx. 980 mm

• Operating weight: approx. 680–700 kg

• Swing-out operator control panel

• Safety bar cutter disengagement system

• LED work light and lifting points

–
