CMC S23 Access Platform – Maximum Reach in a Compact, High-Performance Design

Professional spider lift engineered for precision, safety, and reliability

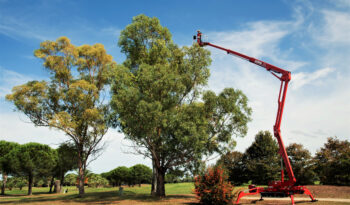

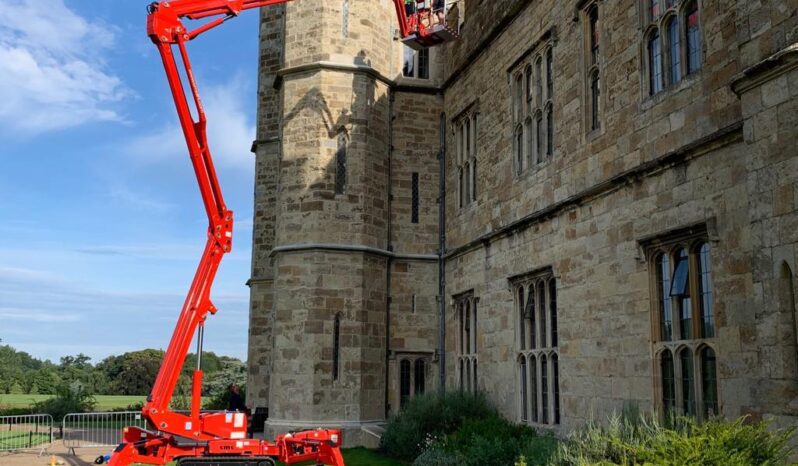

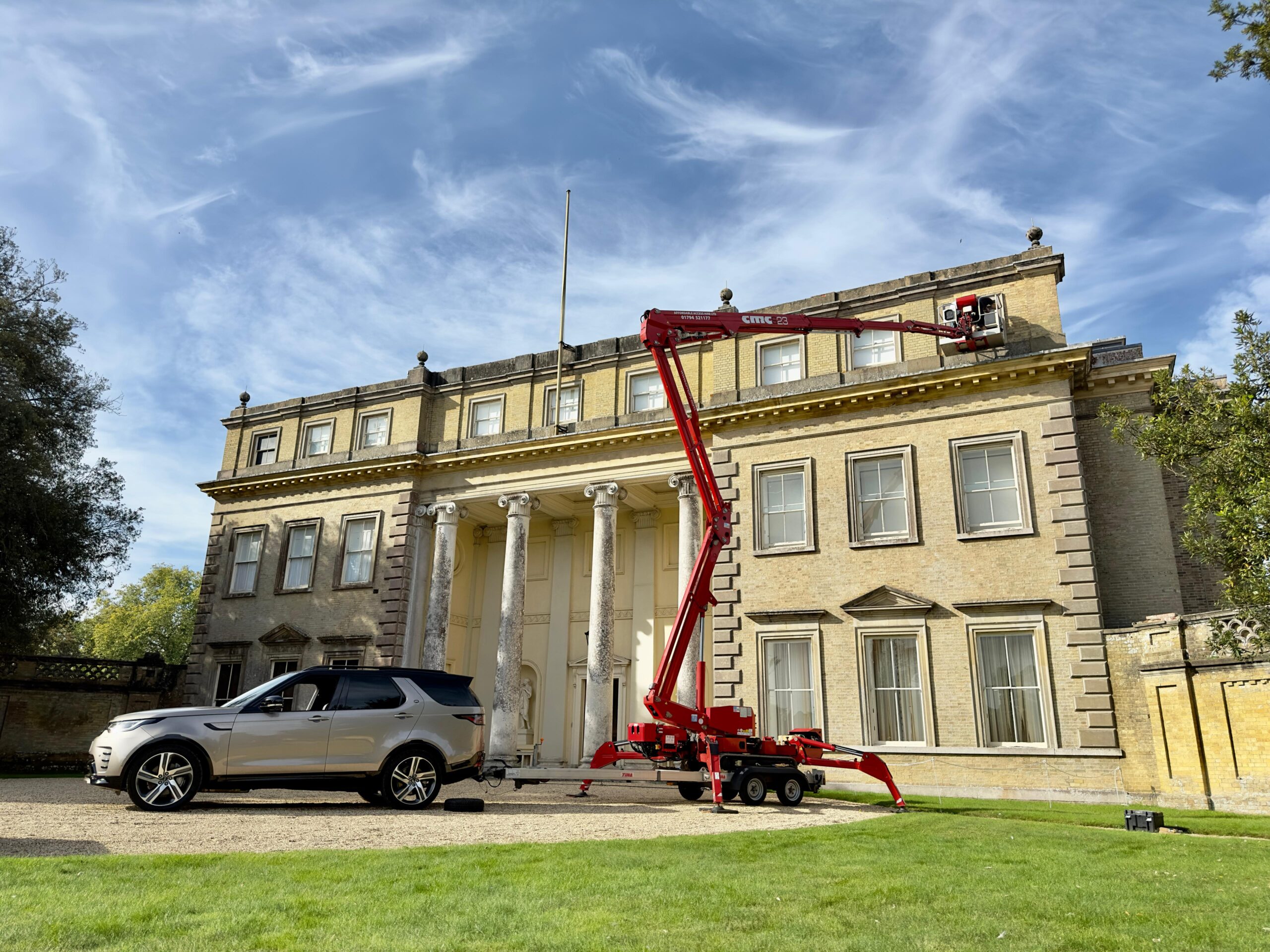

The CMC S23 Access Platform combines impressive reach, intelligent control systems, and robust stability in a compact frame. Designed for professional operators, it delivers exceptional height and outreach performance while remaining lightweight and easily transportable. As a result, this CMC spider lift is ideal for arboriculture, construction, building maintenance, and facility management where performance and compactness are crucial.

Unmatched Reach and Control

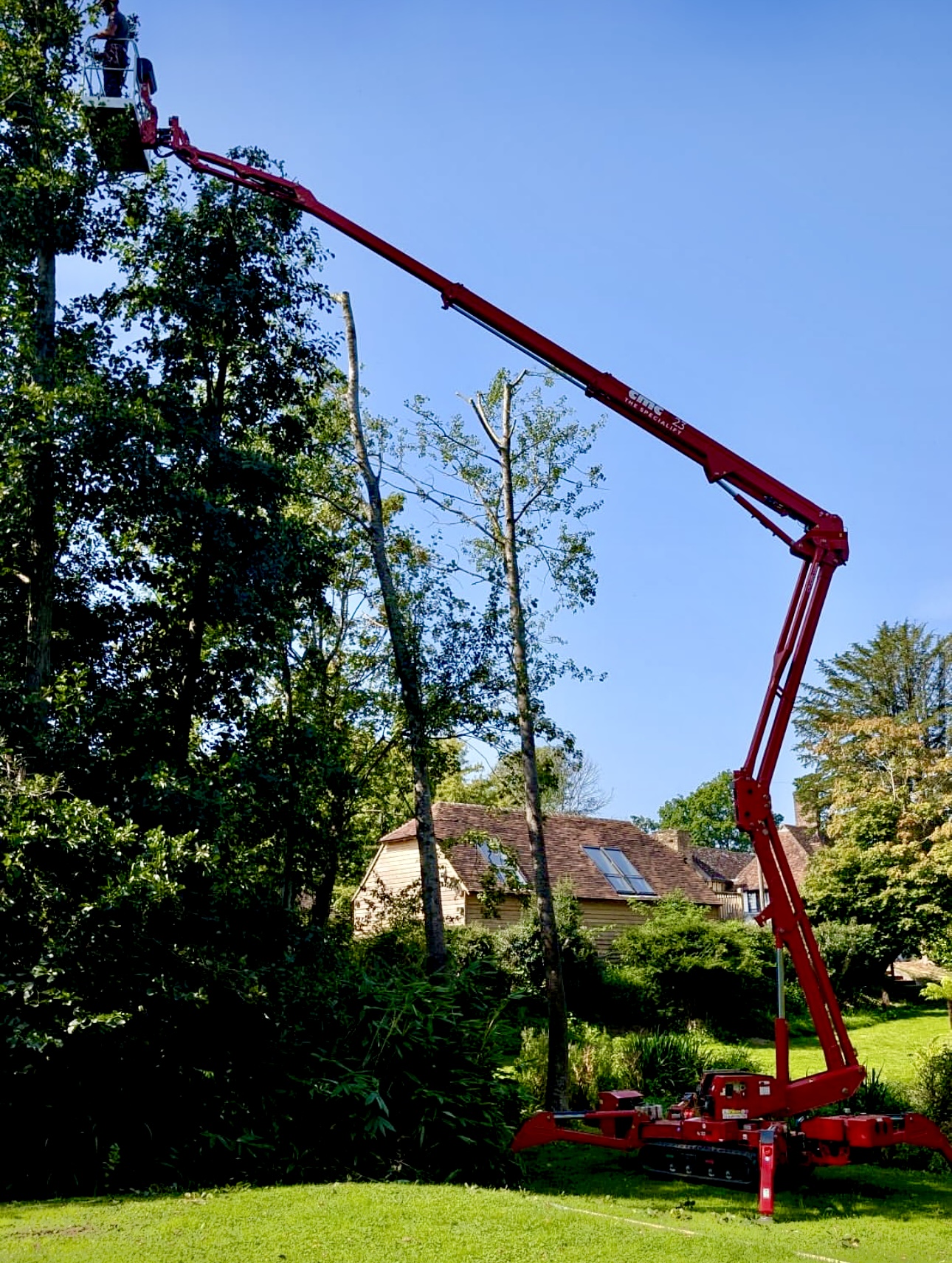

With a maximum working height of 23 m and a horizontal outreach of 12.4 m, the CMC S23 Access Platform achieves class-leading performance for its size. Despite its lightweight build of 2,880 kg, it safely supports a 200 kg basket capacity, making it suitable for two operators with tools. Moreover, its ±90° jib movement, ±355° turret rotation (710° continuous), and ±90° basket rotation ensure full operational flexibility in tight spaces. Consequently, users can work around complex structures with precision and minimal repositioning.

Smart Self-Control System for Safety and Efficiency

The CMC S23 Access Platform is equipped with CMC’s innovative Self Control System, an advanced automation suite that improves both safety and efficiency. This intelligent system manages automatic stabilisation, manoeuvring speed, collision prevention, and automatic closure of the aerial part. In addition, proportional hydraulic controls allow for smooth, fine-tuned movements at any height. Therefore, operators benefit from enhanced productivity, safety, and ease of use on every task.

Stability and Compact Access Anywhere

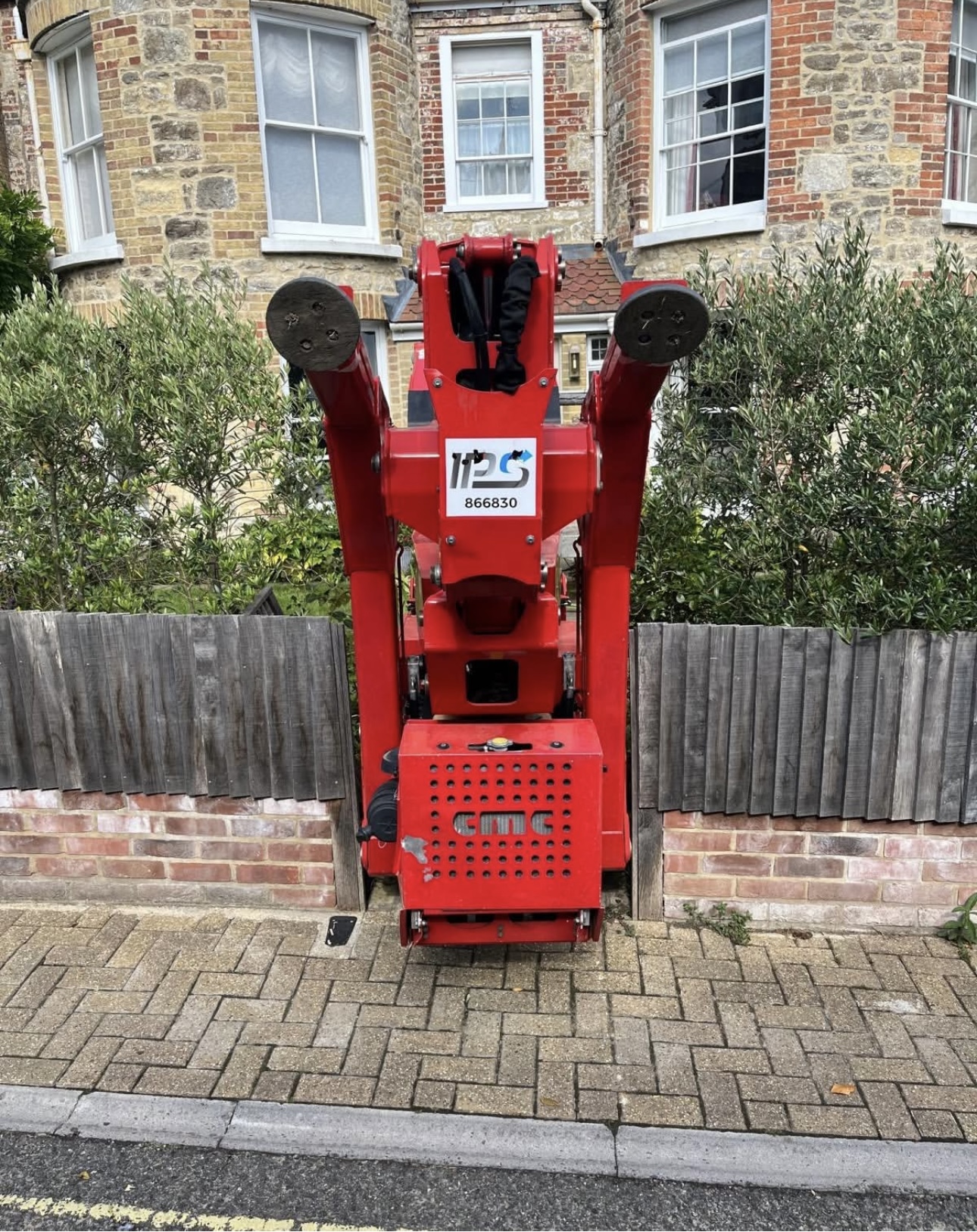

Despite its height capability, the CMC S23 spider lift remains remarkably compact. With a stowed width of just 0.85 m and height of 1.98 m, it passes easily through narrow gateways or doorways. Furthermore, it can tackle slopes of up to 31% longitudinally and 25–27% on ramp attacks, thanks to its robust stabiliser design and excellent ground contact. This makes it perfectly suited for both indoor and outdoor worksites, even on uneven or sloping terrain.

Engineered Power and Performance

The S23 tracked platform offers several power configurations to suit any environment. Standard models feature a Honda iGX390 petrol engine (8.7 kW / 11.7 hp) or Kubota Z602-E4B diesel (10.8 kW / 14.5 hp) for strong and efficient performance. Additionally, optional configurations include Yanmar diesel (6.8 kW), a 230 V electric auxiliary motor (2.2 kW), or a 48 V full-lithium system with 160 Ah battery pack. Moreover, travel speeds reach up to 1.71 km/h for fast site positioning, while maintaining precise control for manoeuvring in delicate areas.

Designed for Longevity and Operator Comfort

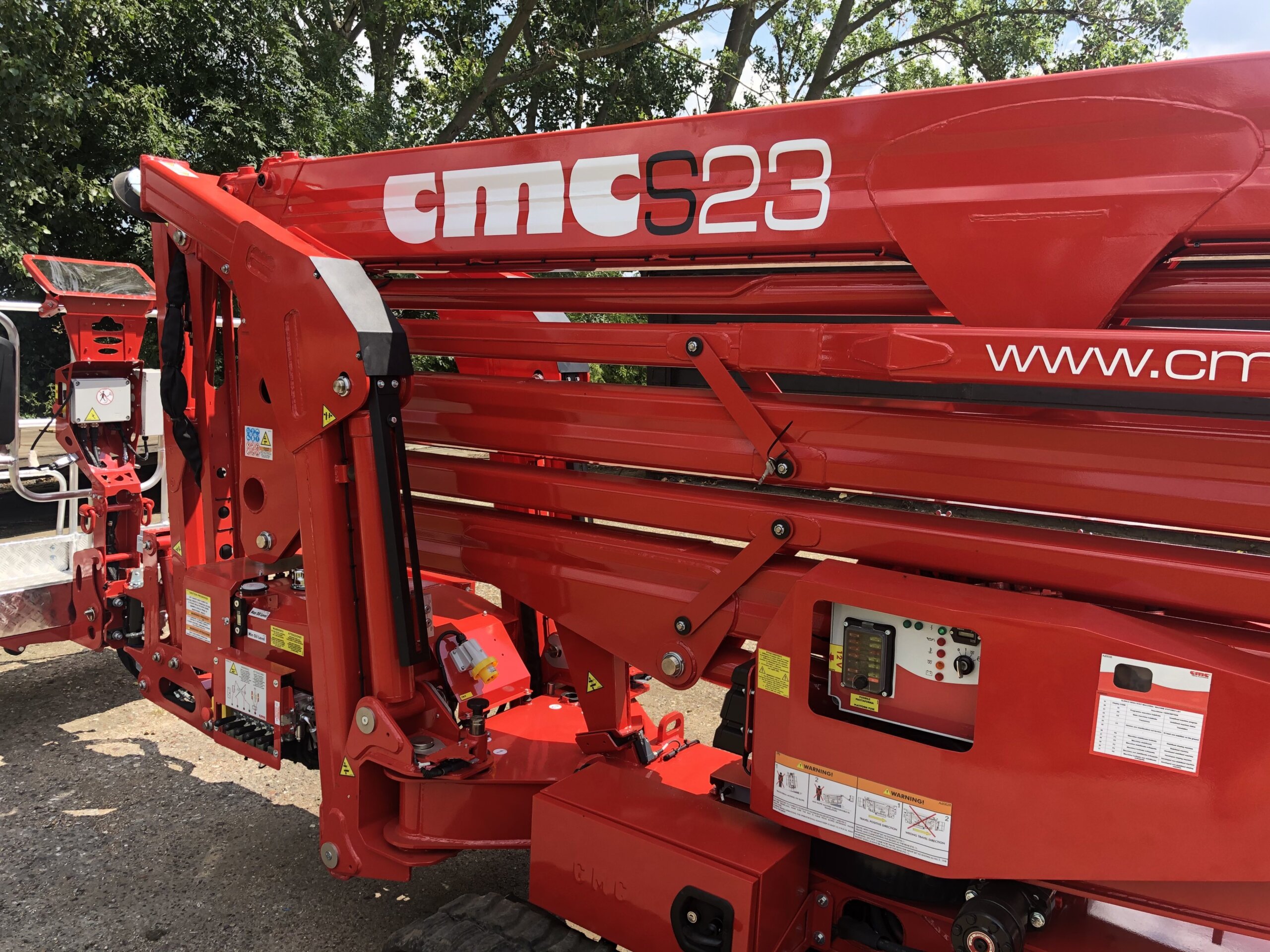

Every detail of the CMC S23 Access Platform has been engineered for durability and user comfort. Its high-quality steel construction, reinforced booms, and ergonomic control layout reduce maintenance needs while increasing operator efficiency. In addition, CMC’s focus on structural balance ensures minimal vibration and maximum stability at height. As a result, the S23 spider lift delivers long-term reliability and low operational costs for demanding professionals.

Key Specifications

• Max. working height: 23.0 m

• Max. outreach: 12.4 m (with 200 kg)

• Platform height: 21.0 m

• Basket capacity: 200 kg

• Basket dimensions: 1.4 × 0.7 × 1.1 m

• Jib movement: ±90°

• Basket rotation: ±90°

• Turret rotation: ±355° (710° continuous)

• Weight (standard): 2,880 kg

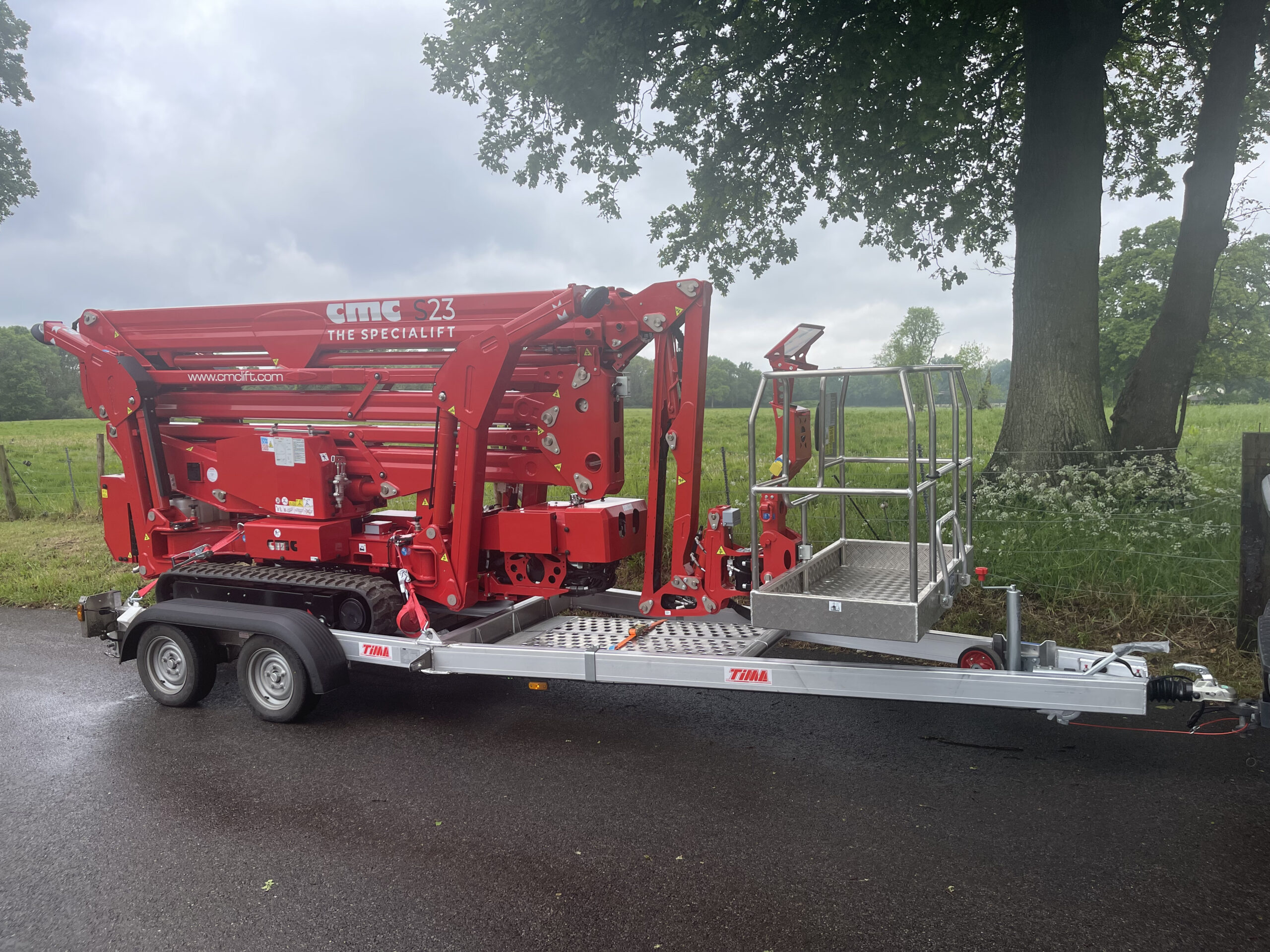

• Stowed dimensions: Length 5.50 m | Height 1.98 m | Width 0.85 m

• Outrigger plate Ø: 0.18 m

• Slope capability: Ramp 14°–15° (25–27%) | Longitudinal 17°–31%

• Ground pressures: Foot 8.40 kg/cm² | Tracks 0.20 kg/cm²

• Power options: Honda iGX390 petrol (8.7 kW / 11.7 hp); Kubota Z602-E4B diesel (10.8 kW / 14.5 hp); Yanmar diesel (6.8 kW); electric 230 V (2.2 kW); 48 V lithium 9 kW

• Fuel tank capacity: 6.1 / 15 L

• Travel speeds: Up to 1.71 km/h (depending on configuration)

Summary

In summary, the CMC S23 Access Platform combines cutting-edge automation, exceptional reach, and compact portability into one powerful package. Thanks to its advanced Self Control System, reliable powertrain options, and sturdy build, it guarantees safe and efficient performance in any environment. Therefore, this CMC S23 spider lift stands as the perfect solution for professionals demanding high reach, intelligent control, and long-lasting reliability.

–

But are we right???

Our team loves to be right about everything! Don’t we all?!!!

However, sometimes we or our trusted team of supplies gets it wrong. If you find our technical data incorrect, please let us know so we can make it right.

Email: theteam@arblease.co.uk

Thanks for your support.
