CMC S20 Access Platform – Maximum Reach with Compact Precision

Professional tracked aerial platform for superior performance and control

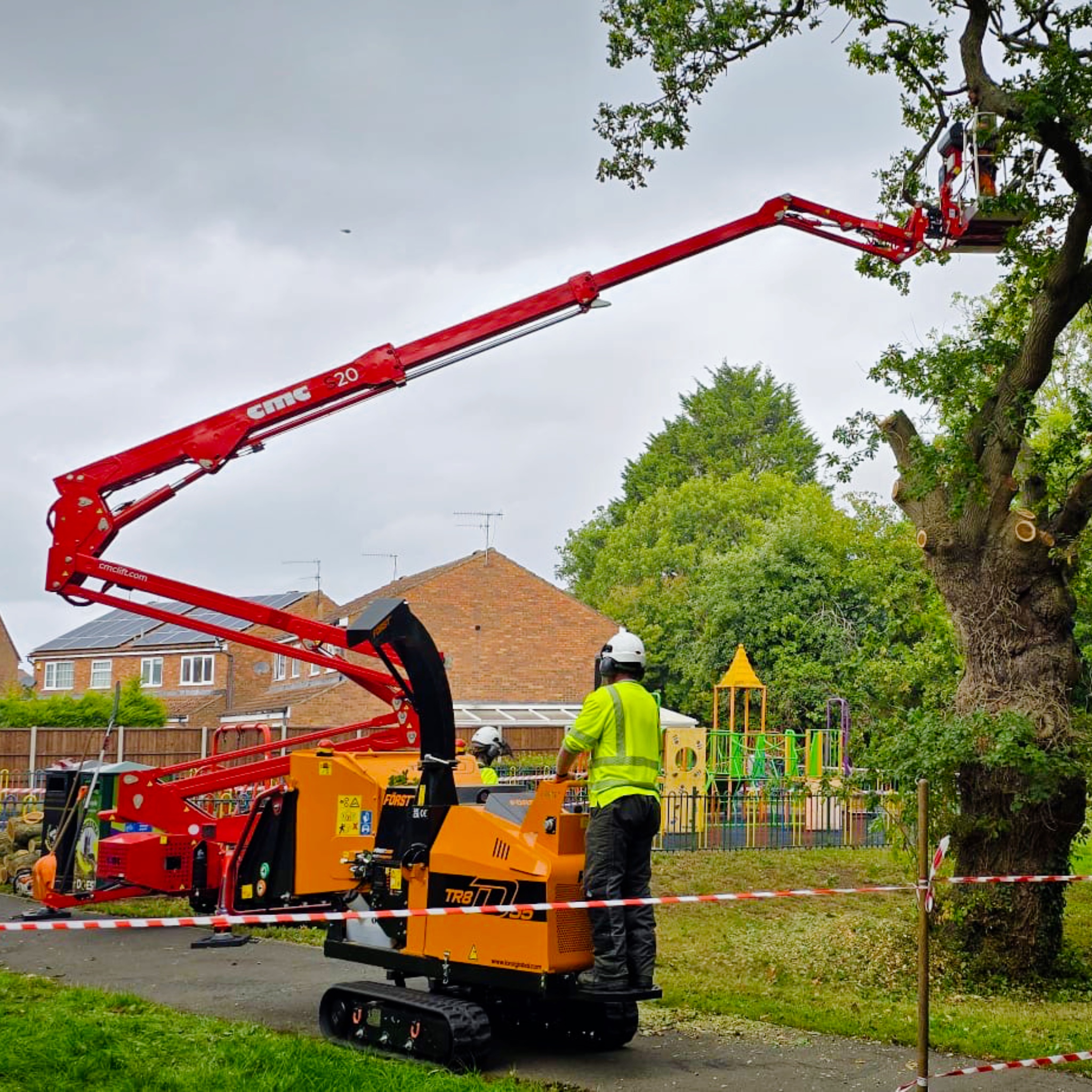

The CMC S20 Access Platform is engineered for professionals who require exceptional reach and stability in a compact, easy-to-transport machine. With its advanced boom structure and high-performance hydraulics, this CMC spider lift combines reliability, precision, and safety for operators working at height. Consequently, it’s the ideal solution for building maintenance, tree care, and construction projects where efficiency and manoeuvrability are essential.

Exceptional Reach and Stability

Reaching a maximum working height of 19.9 m and a horizontal outreach of 10.4 m, the CMC S20 Access Platform provides one of the best performance ratios in its class. Its powerful boom design, including a ±90° jib movement, allows operators to reach hard-to-access spots with ease. Furthermore, its ±180° turret rotation (360° non-continuous) and ±90° basket rotation give full flexibility when working around structures or obstacles. As a result, this CMC tracked lift ensures fast, precise positioning at every angle.

Built for Operator Comfort and Control

The CMC S20 Access Platform is equipped with a full suite of operator-focused features to enhance comfort and usability. It includes proportional hydraulic controls, automatic outriggers levelling, and radio remote-controlled travel for intuitive and responsive handling. In addition, a digital display with error code detection simplifies diagnostics, ensuring smooth operation at all times. Because of these smart systems, the CMC S20 spider lift offers an effortless user experience for both seasoned professionals and new operators alike.

Engineered for Strength and Reliability

Durability and performance are at the heart of the CMC S20 Access Platform. Its hydraulic track system offers adjustable width for superior stability, while the robust outrigger design provides solid footing even on uneven surfaces. Moreover, the black rubber tracks reduce surface damage on delicate flooring or outdoor pavements. Therefore, this CMC aerial platform performs consistently across a wide range of environments — from rough outdoor terrain to indoor industrial sites.

Power Options for Every Application

The S20 tracked platform is available with multiple power configurations to suit specific working conditions. Standard models feature the Honda iGX390 petrol engine (8.7 kW / 11.7 hp), while the Kubota Z482 diesel engine (9.9 kW / 13.3 hp) offers additional torque and fuel efficiency. Optional setups include an electric auxiliary motor (230 V / 2.2 kW), as well as a hybrid configuration for low-emission environments. Additionally, its triple-speed travel system — reaching up to 1.57 km/h — ensures smooth and controlled movement between work areas.

Designed for Productivity and Ease of Use

Every aspect of the CMC S20 Access Platform has been carefully designed for maximum uptime. The inclusion of 230V/120V/110V power sockets and 12V outlets in the basket, along with a 200 Bar air/water hose, adds convenience for operators using powered tools or cleaning attachments. Furthermore, its quick-release basket system, lifting hooks, and transport fixing points streamline setup and relocation. As a result, the S20 boosts jobsite productivity while maintaining the high safety standards associated with the CMC brand.

Key Specifications

• Max. working height: 19.9 m

• Max. outreach: 10.4 m (with 230 kg load)

• Platform height: 17.9 m

• Basket capacity: 230 kg

• Basket dimensions: 1.4 × 0.7 × 1.1 m

• Jib movement: ±90°

• Basket rotation: ±90°

• Turret rotation: ±180° (360° non-continuous)

• Weight (standard): 2,980 kg

• Stowed dimensions: Length 5.38 m | Height 1.99 m | Width 0.84 m

• Outriggers plate Ø: 0.18 m

• Slope capability: Ramp 17°/20° (30–36.5%) | Travel slope 20° (36.5%)

• Ground pressures: Foot 8 kg/cm² | Tracks 0.34 kg/cm²

• Power options: Honda iGX390 petrol (8.7 kW / 11.7 hp), Kubota Z482 diesel (9.9 kW / 13.3 hp), 230 V electric (2.2 kW), hybrid version

• Fuel tank capacity: 6.1 / 15 L

• Travel speeds: 0.82–1.57 km/h (depending on engine configuration)

Summary

In summary, the CMC S20 Access Platform combines exceptional reach, reliable performance, and a compact footprint. Thanks to its advanced boom design, powerful hydraulic system, and intelligent control technology, it ensures safe, smooth, and efficient operation in any working environment. Therefore, this CMC S20 spider lift is the perfect choice for professionals seeking a dependable, high-reach access platform that delivers superior stability and control.
