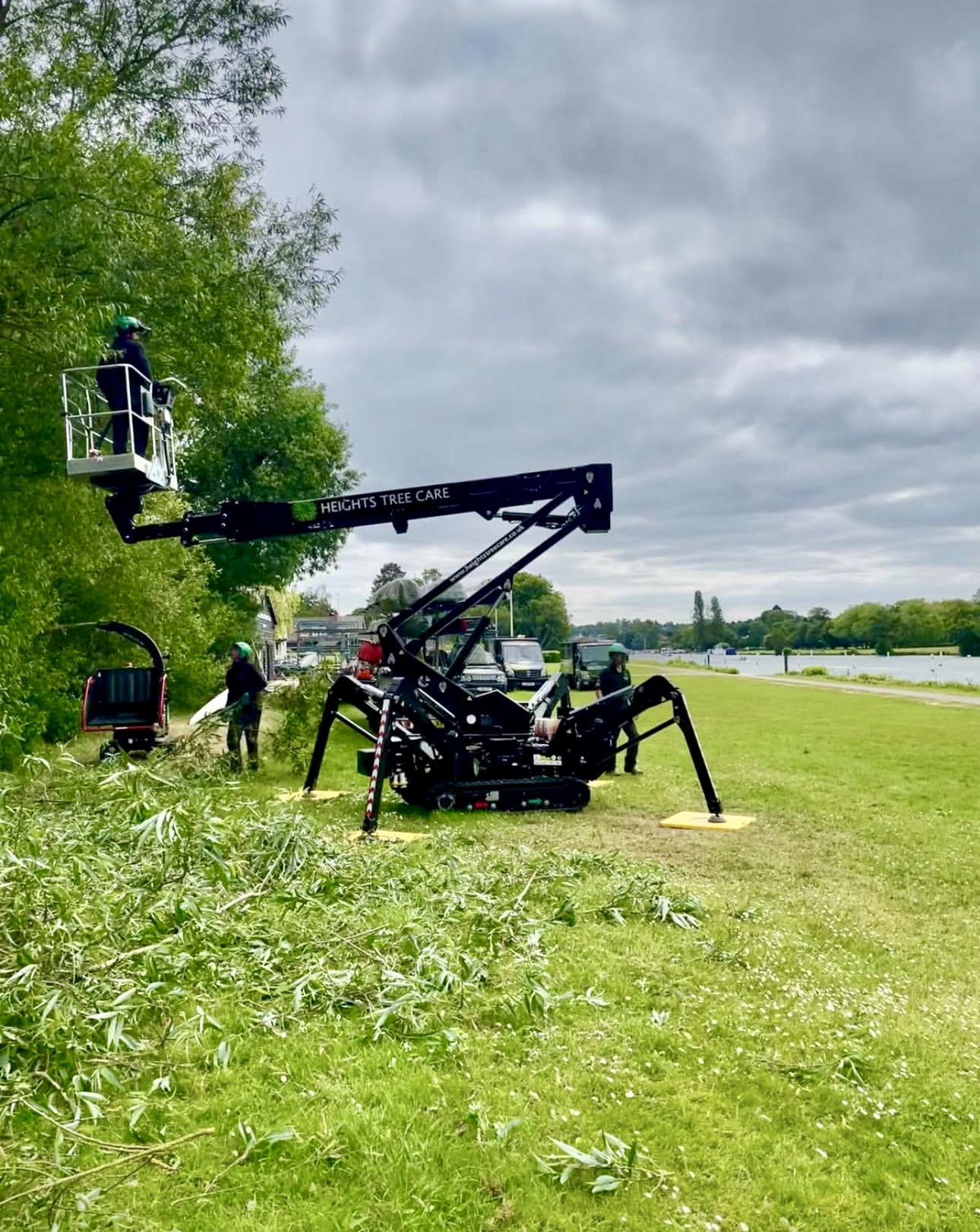

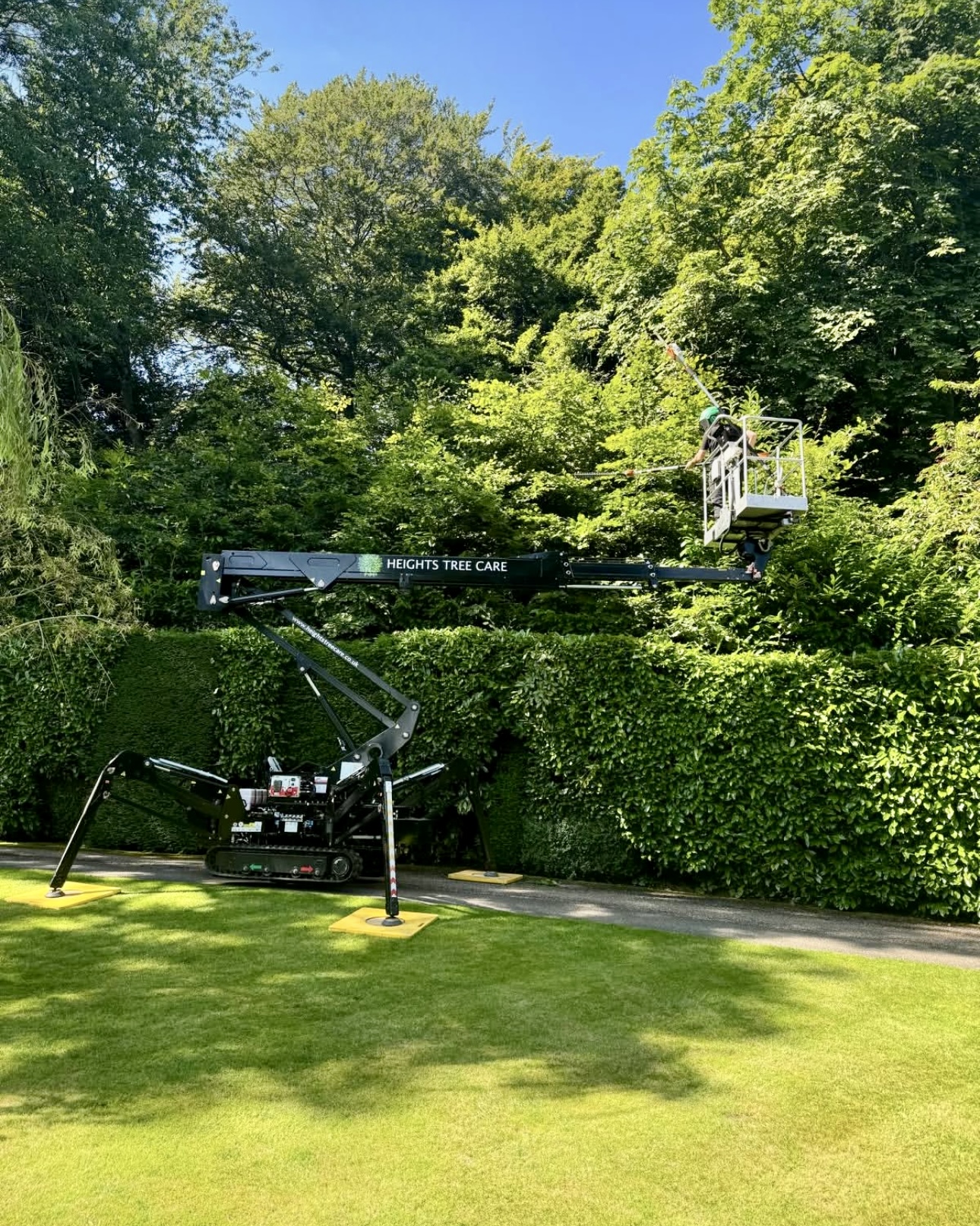

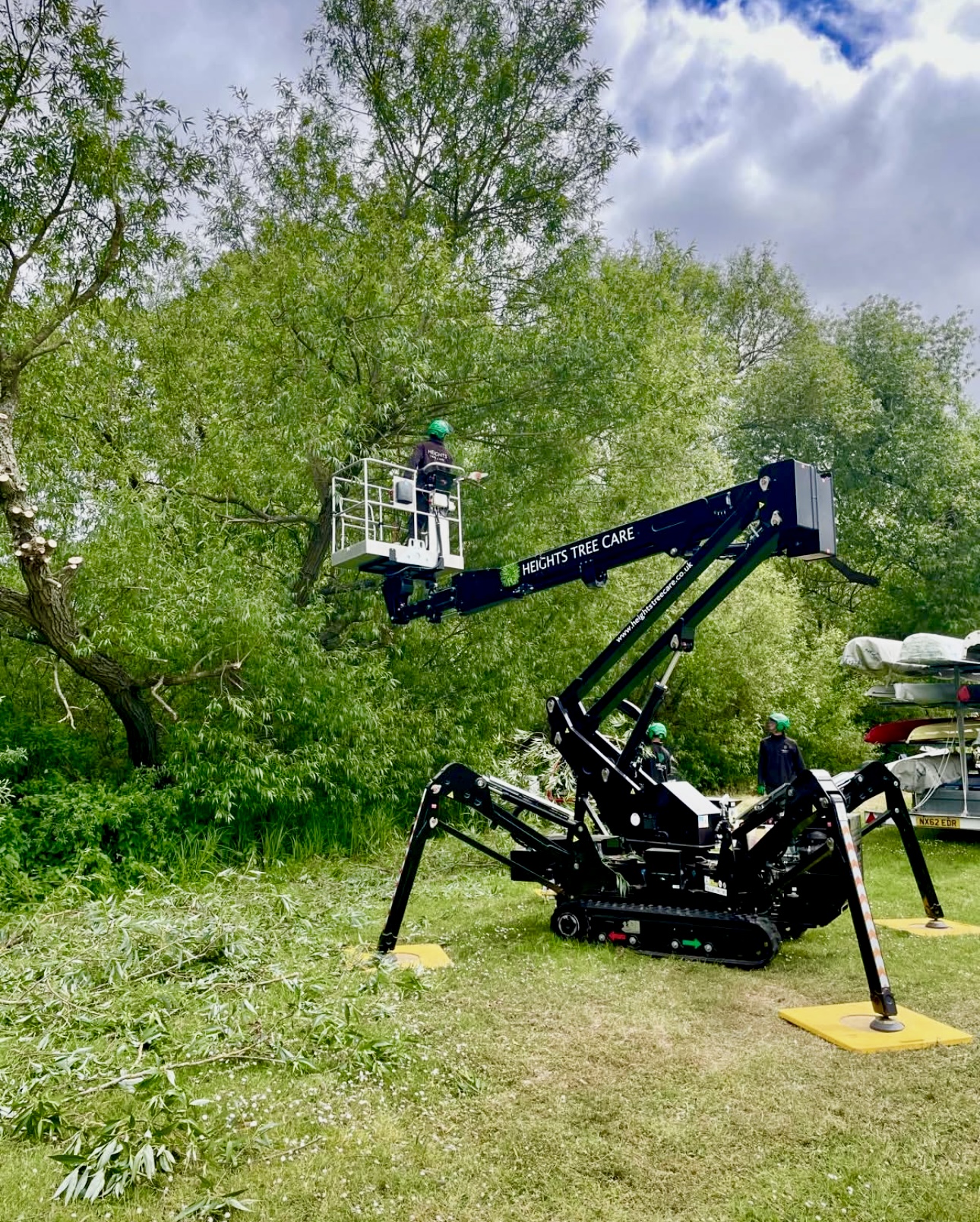

CMC S19HD Access Platform – High Reach and Heavy-Duty Stability for Demanding Terrain

Professional articulated spider lift offering power, balance, and exceptional reach

The CMC S19HD Access Platform stands out as a premium articulated tracked lift designed for professional operators who demand precision, reliability, and stability in challenging conditions. Combining a pantograph system with a telescopic boom, it ensures smooth and controlled operation across uneven ground and complex structures. As a result, this robust CMC spider lift is an outstanding alternative to truck-mounted platforms for users who need maximum reach with minimal footprint.

Exceptional Reach and Performance

With a maximum working height of 18.7 m and an outreach of up to 11.4 m (with 80 kg), the CMC S19HD Access Platform provides superior elevation for a wide variety of professional tasks. Even when supporting its full 200 kg basket capacity, it maintains an impressive 8.6 m outreach, allowing operators to perform high-precision work efficiently. Moreover, the boom’s +90°/-87° basket rotation and ±355° turret rotation (710° total continuous) offer exceptional flexibility for reaching awkward or obstructed areas. Consequently, the CMC S19HD spider lift delivers precise movement and full 360° accessibility at height.

Stability and Control on Every Surface

Because the CMC S19HD Access Platform features heavy-duty stabilisers with advanced levelling capability, it guarantees superior ground contact and balance — even on steep slopes. It can handle ramp attacks of up to 31° (60%) and longitudinal travel slopes between 17° and 31°, ensuring total control on rough terrain. Furthermore, its intelligent outrigger configuration allows efficient setup in confined spaces while maintaining full working stability. Therefore, operators can work confidently in variable outdoor or indoor environments.

Compact Power and Accessibility

Despite its robust build, the CMC S19HD Access Platform remains compact and transportable. Its total width of just 0.9 m and height of 1.98 m allow entry through standard gates, doorways, and narrow access routes. In addition, its flexible basket options — including aluminium or fibreglass in single- and dual-operator configurations — make it adaptable to both light maintenance work and intensive industrial applications. This combination of compactness and heavy-duty strength makes it an ideal choice for arborists, construction crews, and facility managers alike.

Efficient Power Options for Every Environment

The S19HD tracked platform comes equipped with multiple powertrains tailored to different work conditions. Standard models use the Honda iGX390 petrol engine (8.7 kW / 11.7 hp), while optional configurations include Yanmar diesel (6.8 kW), Kubota Z602-E4B diesel (10.8 kW), 110/230 V electric motor, or a 48 V full-lithium system with 160 Ah batteries. Moreover, its variable travel speeds — up to 1.80 km/h with diesel drive — provide efficient on-site movement. Consequently, users can select the ideal setup for low-emission indoor work or demanding outdoor terrain.

Built for Productivity and Longevity

Every detail of the CMC S19HD Access Platform is engineered for professional-grade reliability. The durable chassis, reinforced booms, and simplified service access points help reduce maintenance time while extending operational life. Additionally, the platform’s responsive control system delivers smooth, proportional operation, reducing operator fatigue and improving productivity. As a result, it remains one of the most dependable and efficient compact lifts in its class.

Key Specifications

• Max. working height: 18.7 m

• Max. outreach: 11.4 m (80 kg) / 8.6 m (200 kg)

• Platform height: 16.7 m

• Basket capacity: 200 kg

• Basket dimensions: 1.4 × 0.7 × 1.1 m

• Basket rotation: +90° / -87°

• Turret rotation: ±355° (710° continuous)

• Weight (standard): 2,685 kg

• Stowed dimensions: Length 4.75 m | Height 1.98 m | Width 0.90 m

• Outrigger plate Ø: 0.18 m

• Slope capability: Ramp attack 31° (60%) | Longitudinal travel 17°–31°

• Ground pressures: Foot 6.60 kg/cm² | Tracks 0.17 kg/cm²

• Power options: Honda iGX390 petrol (8.7 kW); Yanmar diesel (6.8 kW); Kubota Z602-E4B diesel (10.8 kW); 110/230 V electric (2.2 kW); 48 V lithium (9 kW)

• Fuel tank capacity: 6.1 / 15 L

• Travel speed: Up to 1.80 km/h (depending on configuration)

Summary

In summary, the CMC S19HD Access Platform offers a perfect blend of height performance, heavy-duty strength, and compact accessibility. Thanks to its advanced stabilisation system, smooth hydraulic controls, and multiple power options, it provides unmatched safety and precision in every environment. Therefore, this CMC S19HD spider lift is the ultimate choice for professionals seeking maximum efficiency, long-term reliability, and confident performance across all terrains.

–
