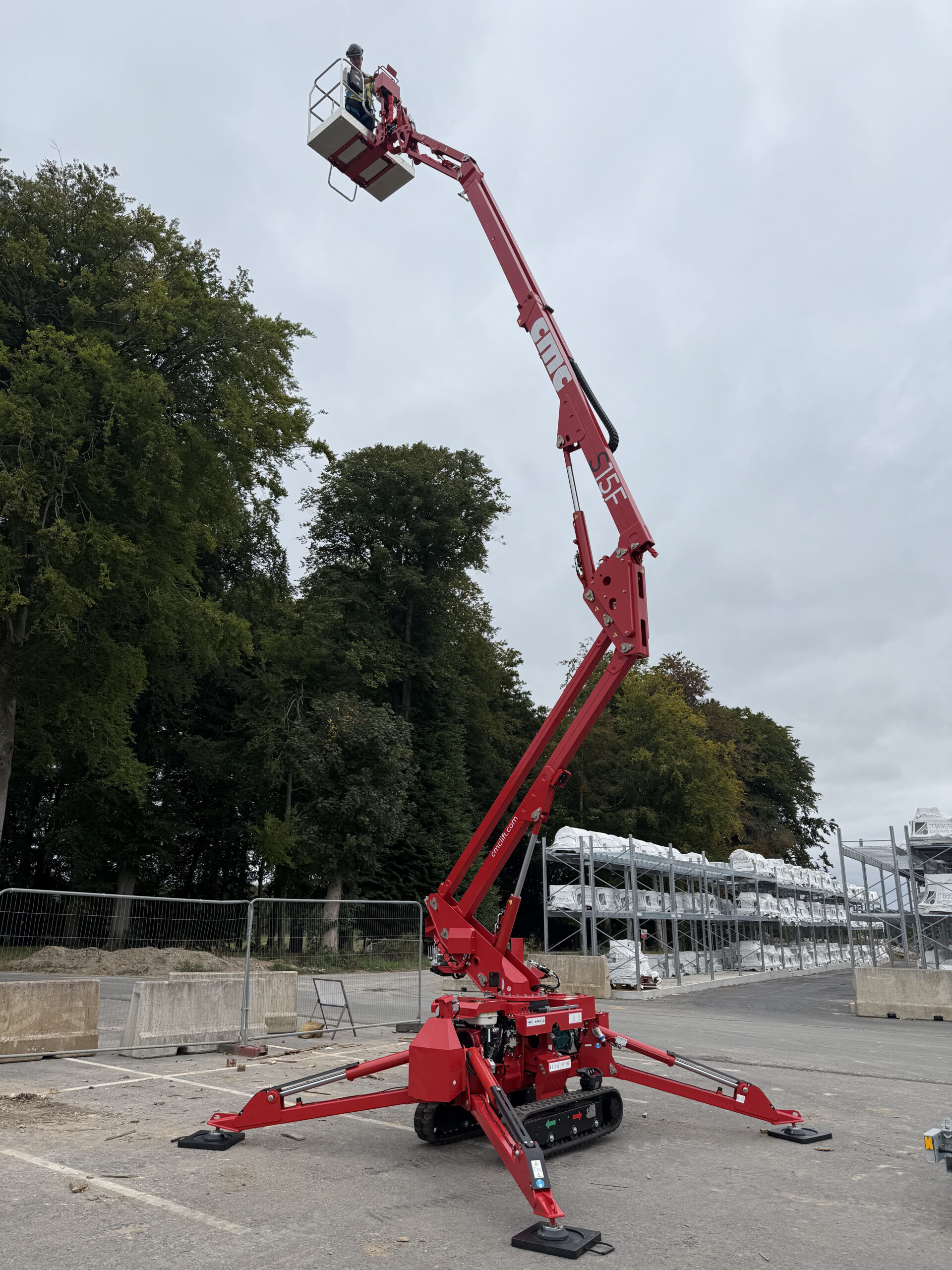

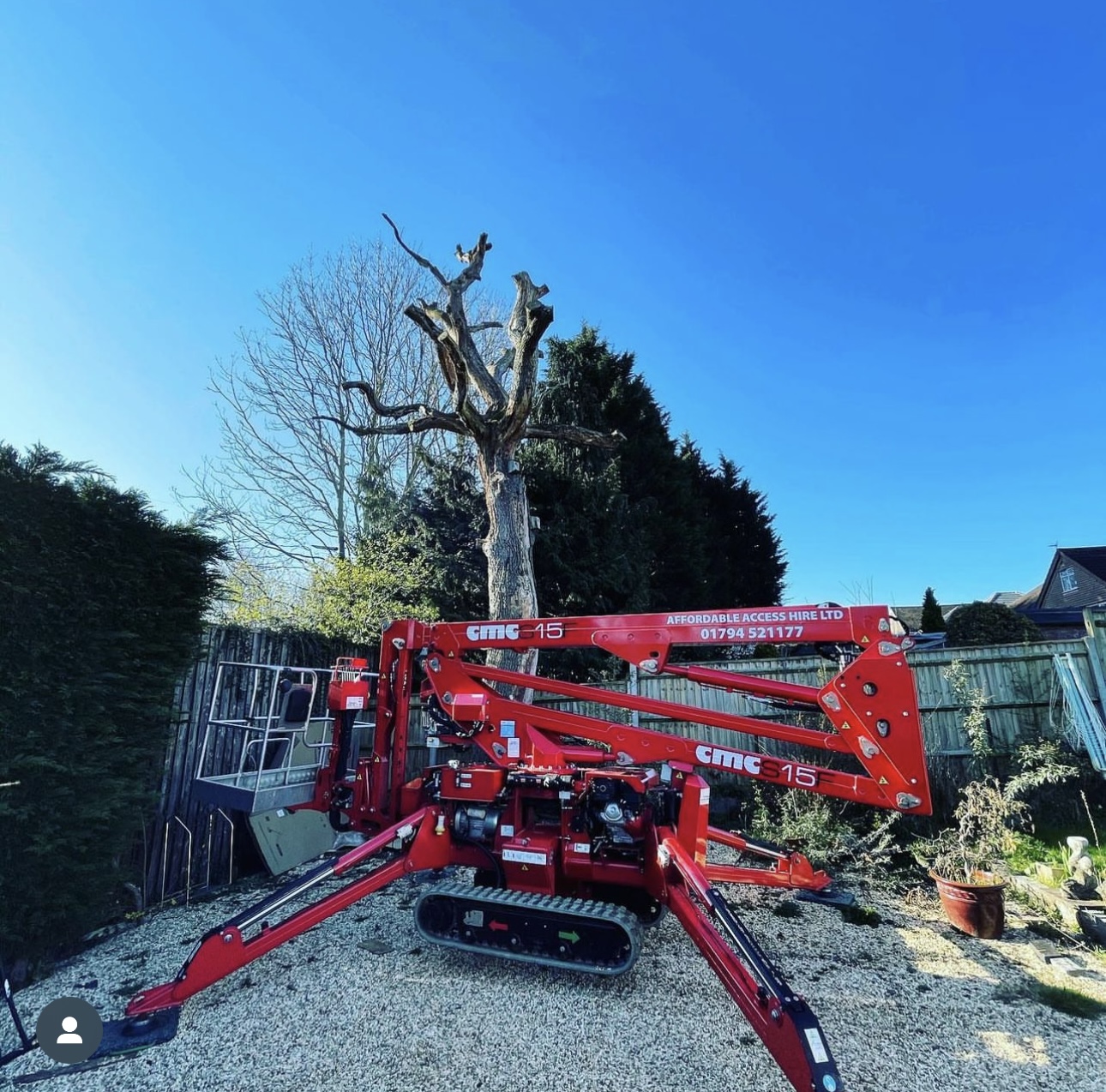

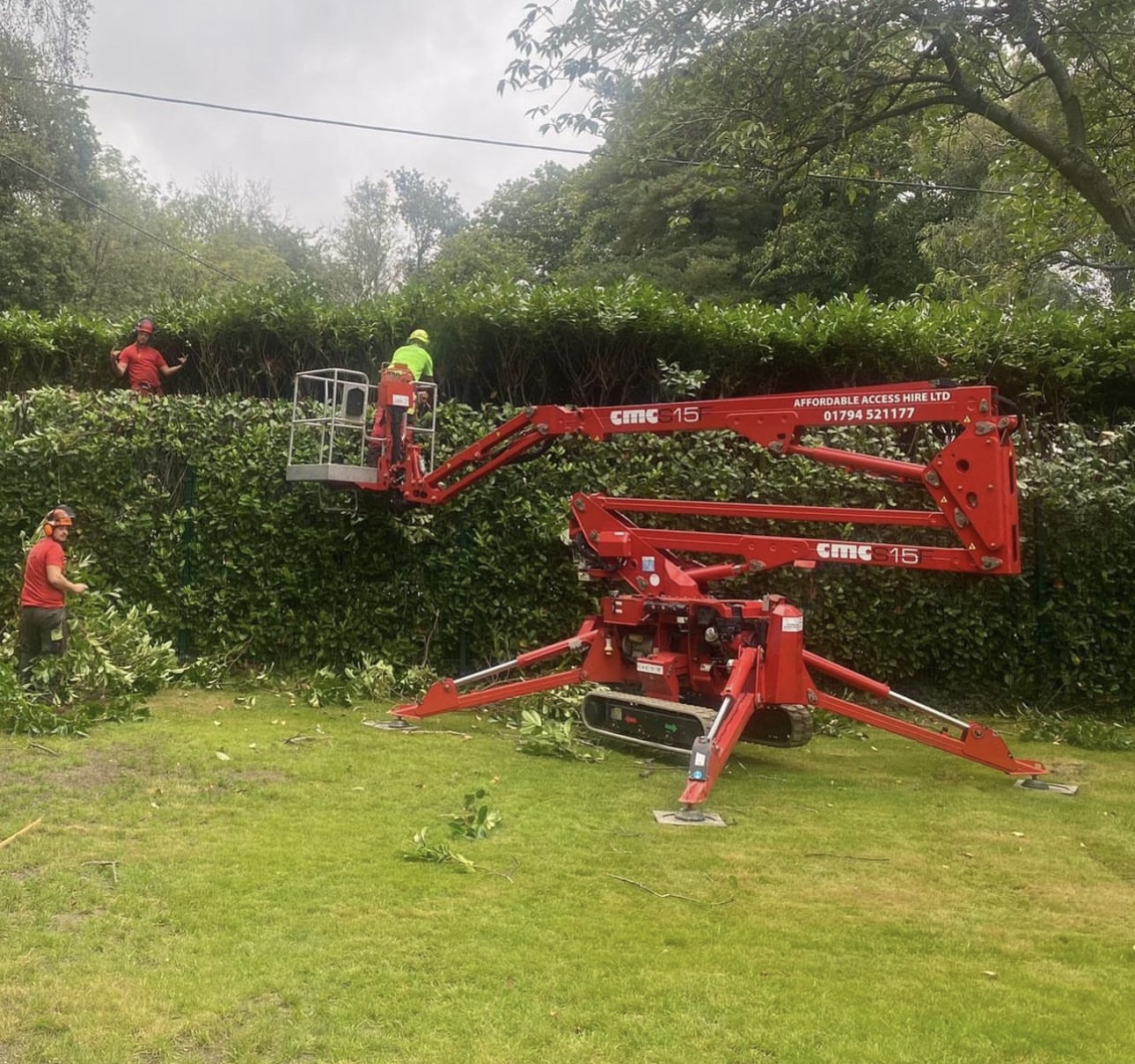

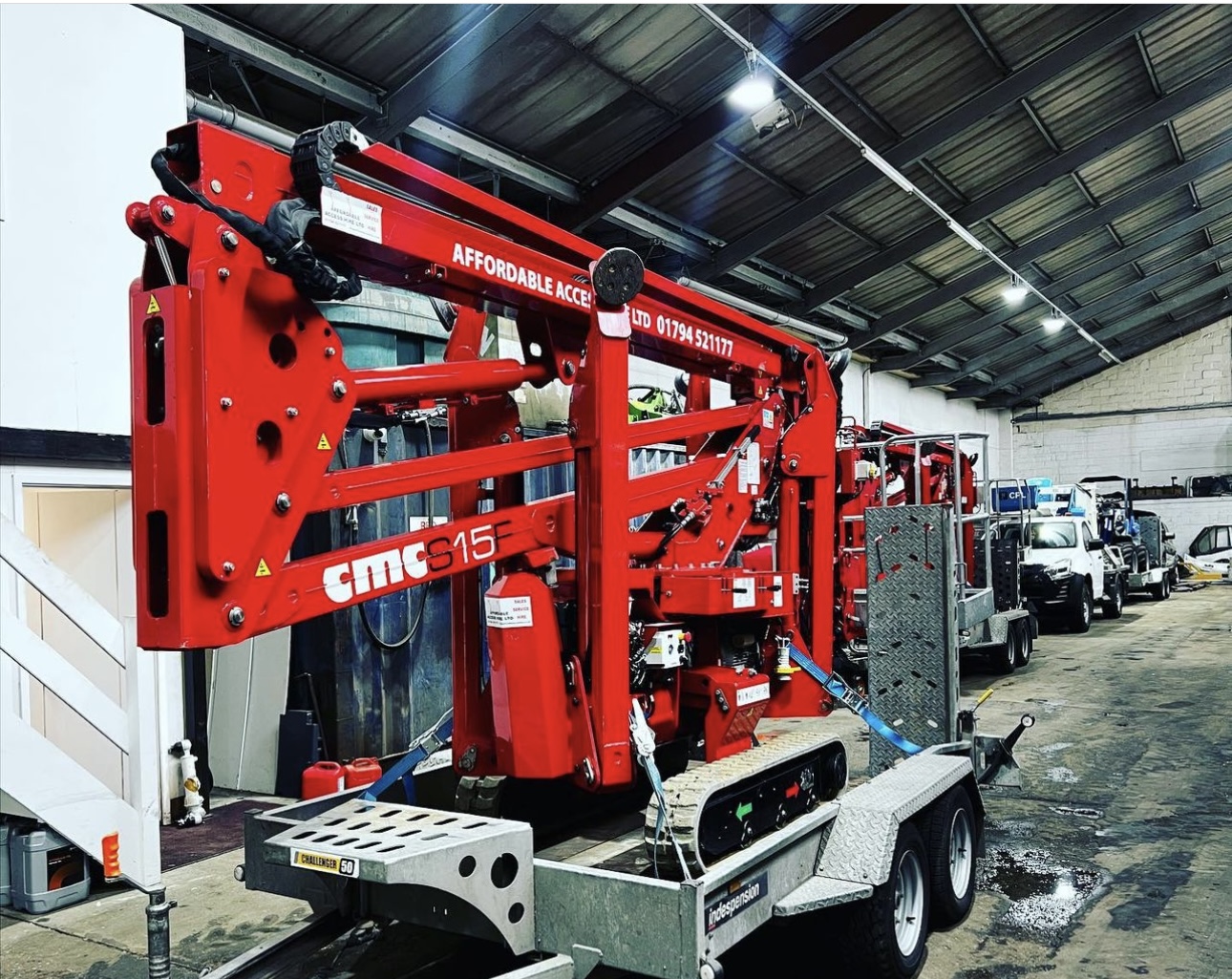

CMC S15F Access Platform – Advanced Reach and Stability in a Compact Form

Professional tracked lift designed for precision, power, and all-terrain confidence

The CMC S15F Access Platform offers an outstanding combination of reach, control, and reliability. Designed for professionals who work in demanding environments, this compact tracked platform provides exceptional stability and precision. Moreover, the S15F is suitable for both indoor and outdoor applications, making it a popular choice for arborists, contractors, and maintenance specialists seeking dependable height access in restricted or uneven areas.

Exceptional Performance with Compact Dimensions

With a maximum working height of 14.8 m and outreach of 8.7 m (with 200 kg load), the CMC S15F Access Platform ensures superior reach in confined worksites. In addition, its innovative boom geometry — consisting of a pantograph, single telescopic extension, and jib — allows smooth vertical and horizontal movement. As a result, this CMC lift can perform complex overhead tasks with precision and speed, even on uneven terrain or limited ground space.

Designed for Efficiency and Control

The S15F spider lift features a responsive pantograph system that maintains platform stability during elevation and outreach. Furthermore, its ±90° jib movement and ±178° turret rotation (up to 356° non-continuous) allow excellent manoeuvrability around structures. Because of these intelligent design features, operators can work efficiently without frequent repositioning, which significantly boosts productivity and reduces time on-site.

Robust Structure for All Surfaces

Engineered for reliability, the CMC S15F Access Platform is equipped with a durable stabilisation system that delivers excellent grip and balance. Additionally, its compact 0.78 m width allows entry through narrow access points, while the robust tracked undercarriage ensures safe operation on soft or uneven surfaces. Therefore, this CMC tracked platform is ideal for jobs such as façade maintenance, tree care, and facility management, where a combination of reach and stability is essential.

Power, Safety, and Operator Comfort

The S15F’s basket supports up to 200 kg, accommodating two operators and their tools with ease. Moreover, multiple basket configurations — aluminium or fibreglass, single or dual-person — give users flexibility across job types. Thanks to its wide range of power options, including Honda petrol, Yanmar diesel, electric, and full-lithium systems, the S15F can adapt to indoor emission-sensitive areas as well as rugged outdoor conditions. Consequently, the CMC S15F Access Platform delivers unmatched versatility and performance across every environment.

Built for Long-Term Reliability

Every detail of the CMC S15F Access Platform is crafted to ensure endurance and efficiency. In addition, easily accessible service points reduce downtime, while the high-quality construction extends operational life. Therefore, fleet operators and independent professionals alike can rely on the S15F spider lift to provide long-lasting value, consistent performance, and minimal maintenance costs over time.

Key Specifications

• Max. working height: 14.8 m

• Max. outreach: 8.23 m (without basket rotation) / 8.7 m (with rotation)

• Platform height: 12.8 m

• Basket capacity: 200 kg

• Basket dimensions: 1.4 × 0.7 × 1.1 m

• Jib movement: ±90°

• Turret rotation: ±178° (356° non-continuous)

• Weight (standard): 2,378 kg

• Stowed dimensions: Length 5.13–5.30 m | Height 1.95–2.28 m | Width 0.78 m

• Outriggers plate Ø: 0.18 m

• Ground pressures: Foot 5.40 kg/cm² | Tracks 0.22 kg/cm²

• Power options: Honda iGX390 petrol (8.7 kW / 11.7 hp); optional Yanmar diesel, electric 110/230 V or 48 V lithium

• Fuel tank capacity: 6.1 / 15 L

• Travel speeds: Up to 1.64 km/h depending on engine

Summary

In summary, the CMC S15F Access Platform combines exceptional reach, impressive stability, and true multi-environment versatility. Thanks to its compact frame, intelligent boom geometry, and wide power options, it performs flawlessly across challenging terrains and confined workspaces. Consequently, this CMC S15F spider lift is the perfect solution for professionals who require safe, efficient, and long-lasting performance in every lifting operation.

–
