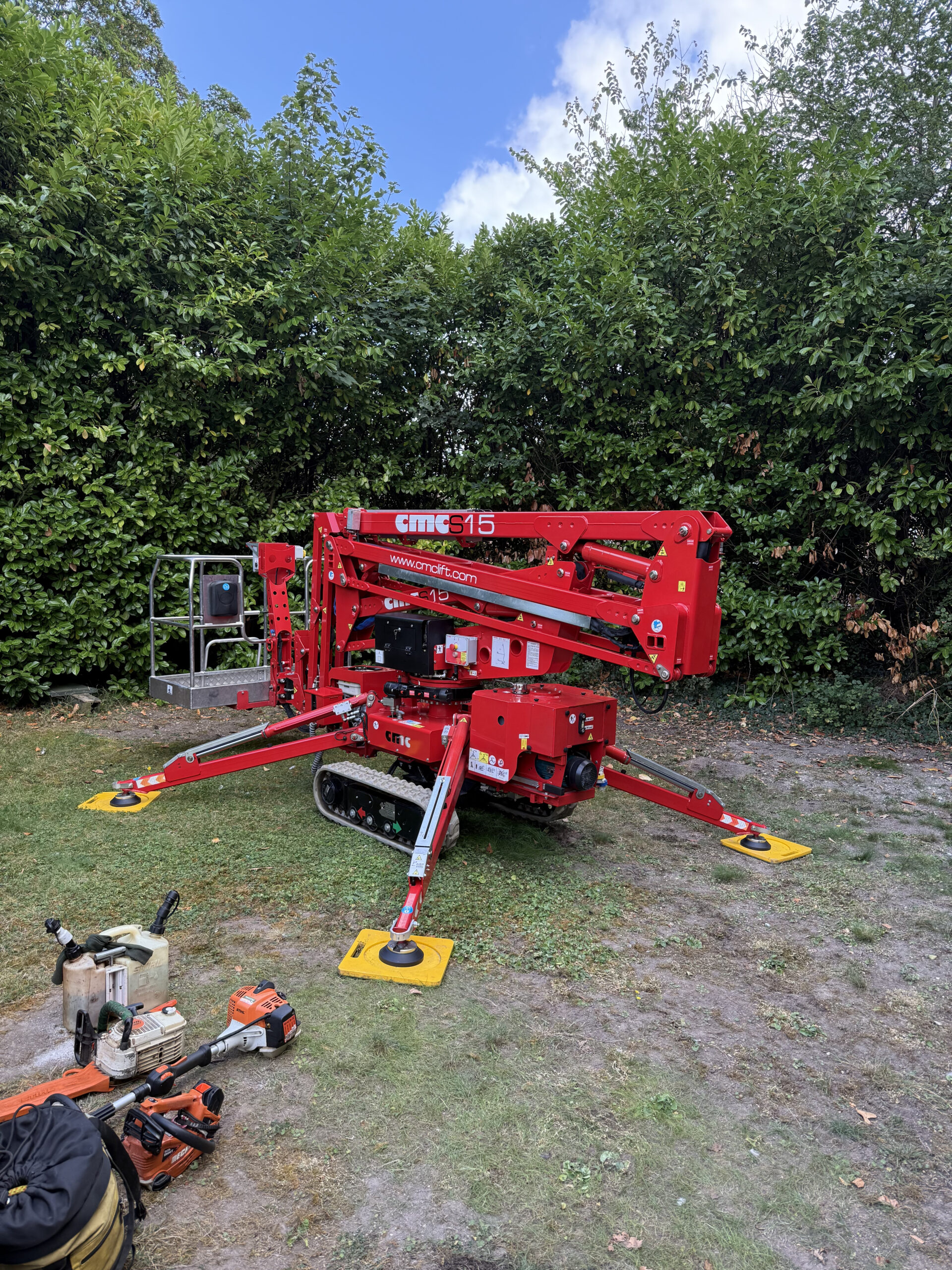

CMC S15 Access Platform – Compact Power and Reach for Confined Worksites

High-reach tracked platform built for safety, precision, and mobility

The CMC S15 Access Platform combines exceptional reach with compact portability, making it a versatile solution for both indoor and outdoor projects. Designed with precision engineering, it offers the perfect balance of stability, control, and convenience. As a result, it is particularly valued by contractors, arborists, and maintenance professionals who must operate efficiently in tight or restricted areas.

Designed for Performance and Control

With a maximum working height of 14.9 m and an outreach of 6.9 m (with 230 kg), the S15 enables confident and accurate positioning at height. Moreover, with the optional basket rotation feature, outreach extends to 7.2 m (with 200 kg), increasing flexibility for demanding applications. In addition, the ±90° jib movement and ±178° turret rotation (up to 356° non-continuous) allow operators to work smoothly around obstacles or façades without unnecessary repositioning. Consequently, productivity improves while maintaining full operational safety.

Compact, Lightweight, and Versatile

Weighing only 1,820 kg, the S15 is impressively light for its class, ensuring ease of transport on small trailers or light commercial vehicles. Furthermore, its compact chassis allows it to pass through standard doorways and even fit into lifts — a feature that is invaluable for work inside airports, shopping centres, or industrial buildings. Because of its slim 0.77 m width, it navigates confined passages where conventional access platforms simply cannot go.

Strength, Safety, and Operator Comfort

The robust basket design supports a maximum load of 230 kg, enabling two operators and their equipment to work securely. In addition, the advanced outrigger system enhances balance and safety, even when the machine is set up on uneven or sloped surfaces. Thanks to its low ground pressure, the S15 can also operate on delicate floors or soft ground without causing damage. Furthermore, it offers a choice between one- or two-man aluminium or fibreglass baskets, all with quick-release mechanisms that make changeovers fast and efficient.

Built for Long-Term Efficiency

Every component of the S15 is built for reliability and longevity. Moreover, its intuitive controls and simple servicing points reduce downtime and make daily operation straightforward. Multiple power options — including Honda petrol, Yanmar or Kubota diesel, electric, and full-lithium versions — allow it to adapt seamlessly to different environments. As a result, operators can choose the best configuration for their workflow, whether working indoors with zero emissions or outdoors with maximum power.

Key Specifications

• Max. working height: 14.9 m

• Max. outreach: 6.9 m (230 kg) / 7.2 m (200 kg with rotating basket)

• Platform height: 12.9 m

• Basket capacity: 230 / 200 kg

• Basket dimensions: 1.4 × 0.7 × 1.1 m

• Jib movement: ±90°

• Turret rotation: ±178° (356° total non-continuous)

• Weight (standard): 1,820 kg

• Stowed dimensions: Length 4.03–4.36 m | Height 1.98 m | Width 0.77 m

• Ground pressures: Foot 5.00 kg/cm² | Tracks 0.21 kg/cm²

• Power options: Honda iGX390 petrol (8.7 kW / 11.7 hp); optional Yanmar, Kubota, electric or lithium versions

• Fuel tank capacity: 6.1 / 15 L

• Travel speed: 0.42–1.50 km/h (depending on engine type)

Summary

In summary, the CMC S15 Access Platform delivers remarkable reach, stability, and portability in a single, compact package. Thanks to its intelligent boom geometry, low weight, and flexible power choices, it ensures consistent performance in both indoor and outdoor conditions. Therefore, it’s the perfect access platform for professionals who require dependable lifting capability, precision handling, and total reliability on every project.

–
