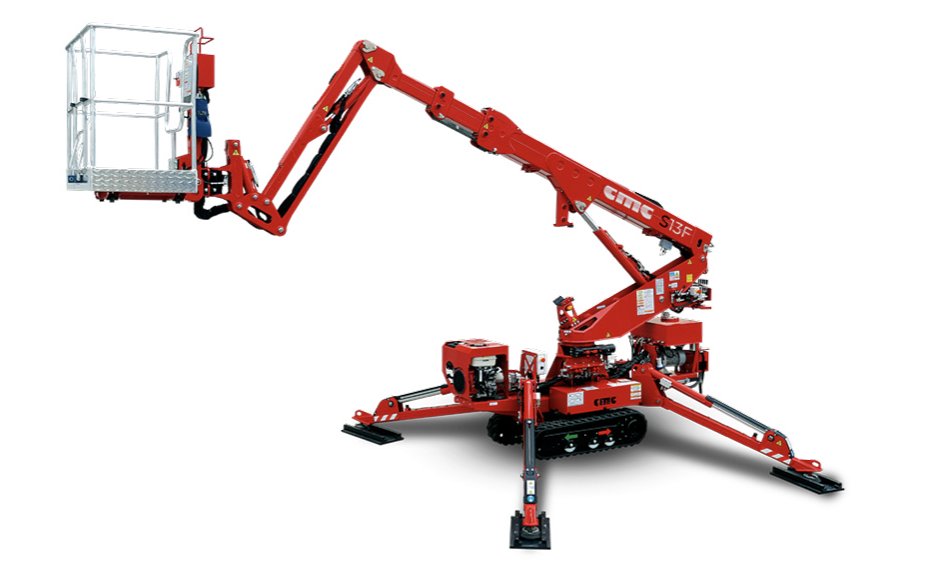

CMC S13F Access Platform – Compact Lift for Confined and Demanding Worksites

Lightweight yet powerful tracked platform built for precision and portability

The CMC S13F Access Platform delivers dependable reach and control within a compact footprint. Consequently, it excels on urban jobsites, courtyards, and tight approaches where larger machines struggle. Moreover, intuitive controls and a jib with precise articulation help operators position quickly and work efficiently with fewer repositionings.

High-Performance Design for Tight Access

With a maximum working height of 12.9 m and outreach up to 8.5 m (with 80 kg), the S13F enables confident access in restricted spaces. In addition, the two-stage telescopic boom plus ±90° jib movement supports accurate, obstacle-aware placement for faster task completion.

Lightweight, Portable, and Easy to Transport

Because the machine is compact and thoughtfully balanced, it’s easy to trailer and maneuver on site. Furthermore, its low stowed dimensions aid access through narrow gates and passages, which, in turn, widens the range of viable indoor and outdoor applications.

Robust Reach, Capacity, and Safety

The platform supports up to 230 kg in the basket, so two operators can work with tools comfortably. Additionally, turret rotation of ±178° (with a 356° non-continuous option) and optional basket rotation ±90° expand the working envelope, while stable outriggers help maintain confidence on uneven ground.

Built for Productivity and Durability

Every component is engineered for long-term reliability. As a result, rental fleets, maintenance teams, and arborists benefit from consistent uptime, straightforward servicing, and versatile power options to match site constraints.

Key Specifications

• Max. working height: 12.9 m

• Max. outreach: 8.5 m (with 80 kg) / 6.7 m (with 230 kg)

• Platform height: 10.9 m

• Basket capacity: 230 kg; basket dimensions: 1.4 × 0.7 × 1.1 m

• Jib movement: ±90°; turret rotation: ±178° (356° non-continuous option); basket rotation: ±90° (option)

• Weight (standard): 1,565 kg

• Stowed dimensions: length 4.40 m (fixed basket) / 4.64 m (rotating basket); height 1.97 m; width without basket 0.78 m

• Travel capability: max ramp attack with lifted jib 41° (87%); max longitudinal travel slope 18%–32%

• Outriggers plate Ø: 0.18 m; ground pressures: foot 5.30 kg/cm²; tracks 0.17 kg/cm²

• Powertrains: Honda iGX390 petrol 8.7 kW (11.7 hp) standard; optional Yanmar diesel, auxiliary 110/230 V electric, full-lithium or hybrid versions

• Fuel tank capacity: 6.1 / 15 L

• Typical travel speeds (Honda): 0.83 km/h (low) / 1.66 km/h (high)

Summary

In summary, the CMC S13F Access Platform pairs compact size with serious capability. Thanks to its precise boom and jib geometry, generous 230 kg basket, and practical transport dimensions, it delivers safe, productive performance where space is limited and efficiency matters.

–
