ARBMAX F30 12″ Disc Wheeled Wood Chipper – Towable 12″ Chipper for Professional Arb Work

Road-towable practicality with serious disc performance.

The ARBMAX F30 12″ Disc Wheeled Wood Chipper is a heavy-duty 12″ chipper for small to medium forestry and tree surgery operations. It combines a powerful disc cutting system, aggressive feed wheels and a road-legal wheeled chassis. As a result, you get big-chip performance in a machine that is still easy to move between jobs.

Disc Chipper with Flexible Power Options

The ARBMAX F30 12″ Disc Wheeled Wood Chipper uses a fully machined disc set at 50°. This helps the knives bite cleanly and throw chip efficiently. It also improves chip quality and reduces power loss.

You can choose between a 75hp diesel engine or an optional 134hp unit. The smaller engine suits general arb work and lighter clearance. The larger unit suits high-output or biomass jobs. Both options drive the disc through a heavy twin-plate clutch for smooth engagement and long service life.

12″ Capacity and Aggressive Feed System

The infeed system is designed for real-world material. The chipper has a feed opening of 330 x 310mm, so it handles 12″ timber and knotted branches. The hopper opening of 1320 x 800mm gives plenty of room for crowns and brash.

High-torque vertical feed wheels drive material into the disc. They use Hardox-style teeth for extra grip. Hydraulic pressure control lets you adjust how hard the rollers pull. This helps when you work with mixed species or awkward shapes. With organised feeding, the F30 can reach around 50 cubic metres per hour.

Hardox Chamber and Easy Service Access

The ARBMAX F30 12″ Disc Wheeled Wood Chipper has a Hardox-lined chamber and oversized bearings. This construction improves durability in tough, dusty conditions. It also protects the housing from long-term wear.

A pivoting chamber door gives excellent access to the disc, knives and anvils. You can change blades, clear blockages and inspect the chamber quickly. Shorter service times mean more chipping and less downtime during busy periods.

Road-Towable Wheeled Chassis

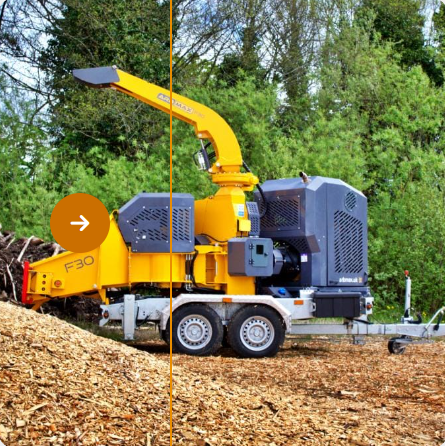

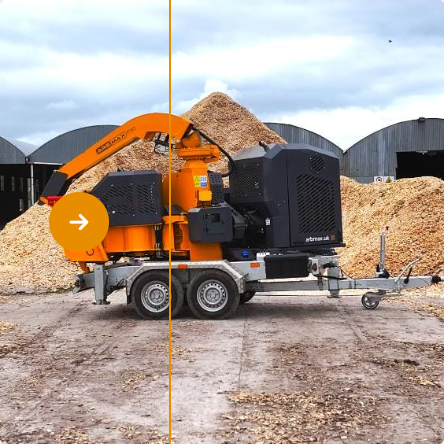

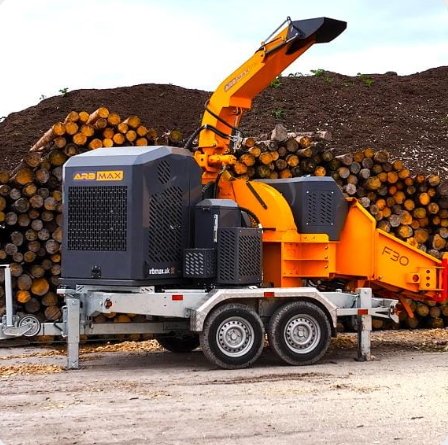

This F30 is the wheeled version, not the tracked model. It sits on a galvanised, leaf-sprung chassis with twin axles. The basic weight is around 3,100kg, so it remains within the key 3.5-tonne towing band when specified correctly.

Because it is road-towable, you can move the chipper with a suitable 4×4 or light truck. This makes it ideal for arborists and contractors who visit several sites in a single day and need fast, simple transport.

Controls, Safety and Discharge

The ARBMAX F30 12″ Disc Wheeled Wood Chipper is designed with both safety and ease of use in mind. The large rear hopper includes safety stop bars and emergency stop buttons. Dual control panels near the infeed give clear control over feed functions.

The discharge chute is hydraulically adjustable. You can rotate it and adjust the deflector while the machine runs. This makes it easy to load chip into trailers, bins or neat piles on the ground.

ARBMAX F30 12″ Disc Wheeled Wood Chipper – Key Features

• 12″ disc wheeled wood chipper for arb and forestry work

• Engine options: 75hp diesel or optional 134hp diesel

• Disc: fully machined, 50° angle for efficient cutting and throw

• Feed opening: 330 x 310mm (12″ capacity)

• Hopper opening: 1320 x 800mm

• Cutting setup: 2 knives, 3 anvils, Hardox-lined chamber

• High-torque vertical feed wheels with hydraulic pressure control

• Approximate throughput up to 50m³ per hour (material dependent)

• Galvanised road-towable chassis, approx. 3,100kg basic weight

• Hydraulic discharge chute with adjustable deflector

–
