KEY FEATURES:

• DRY WEIGHT WITHOUT FLAIL: 1700 KG

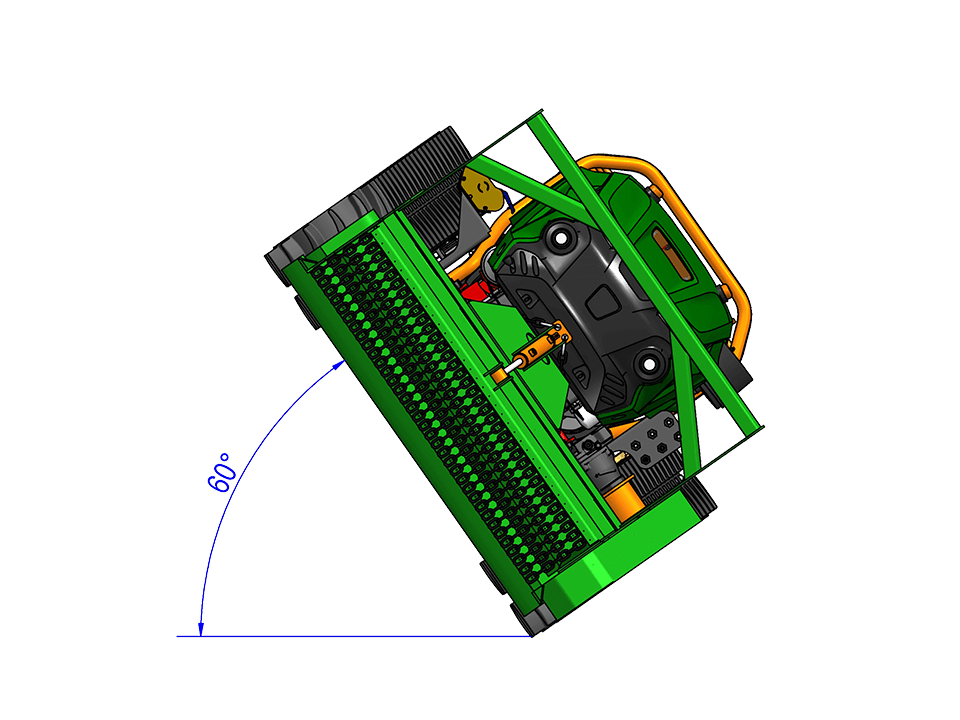

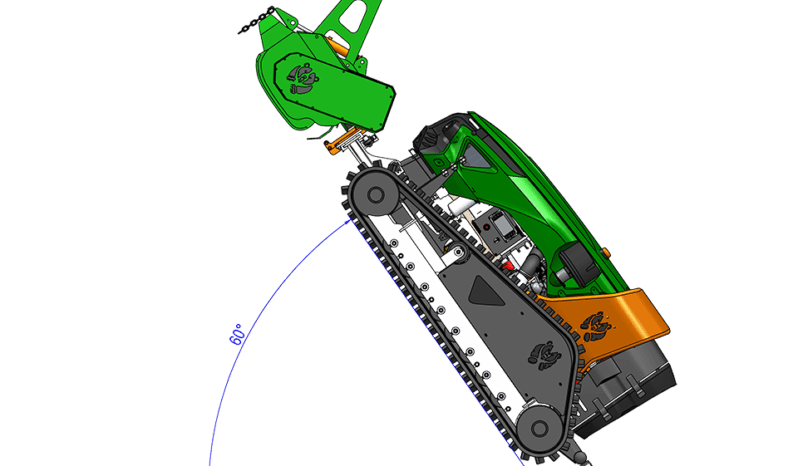

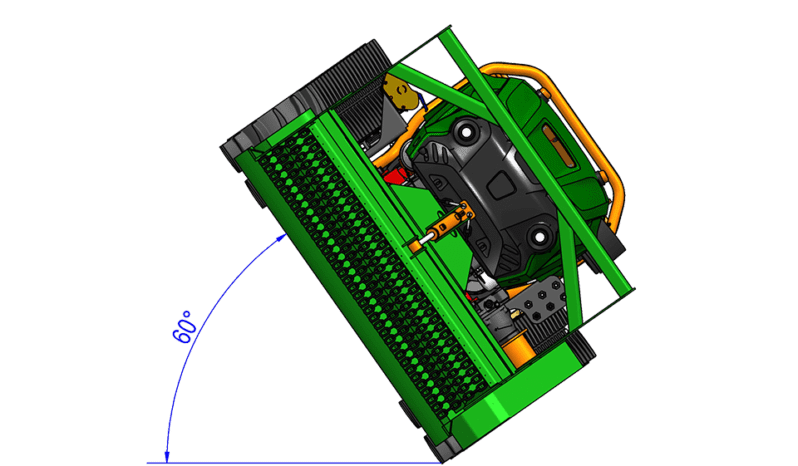

• MAX WORKING GRADIENT DEGREES: 60°
• ACCESSORIES SIDESHIFTING: 500+550 mm
• SPEED: 9 Km/h
• ENGINE DIESEL: Kohler Turbo Common Rail Intercooler
• CYLINDERS: n°3
• EPA TIER 4 & STAGE 5 READY: yes
• ENGINE POWER: 75,5/55 HP/kw
• ENGINE TORQUE: 300 Nm
• COOLING SYSTEM: Liquid
• FUEL TANK CAPACITY:52 Lt
• TRACTION: Hydraulic Closed Loop Proportional 12v
• HYDRAULIC OIL TANK CAPACITY: 32 Lt
• REVERSIBLE RADIATOR FAN: Yes

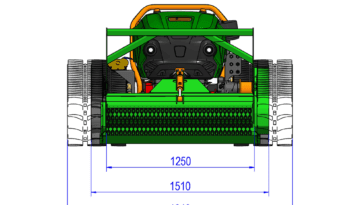

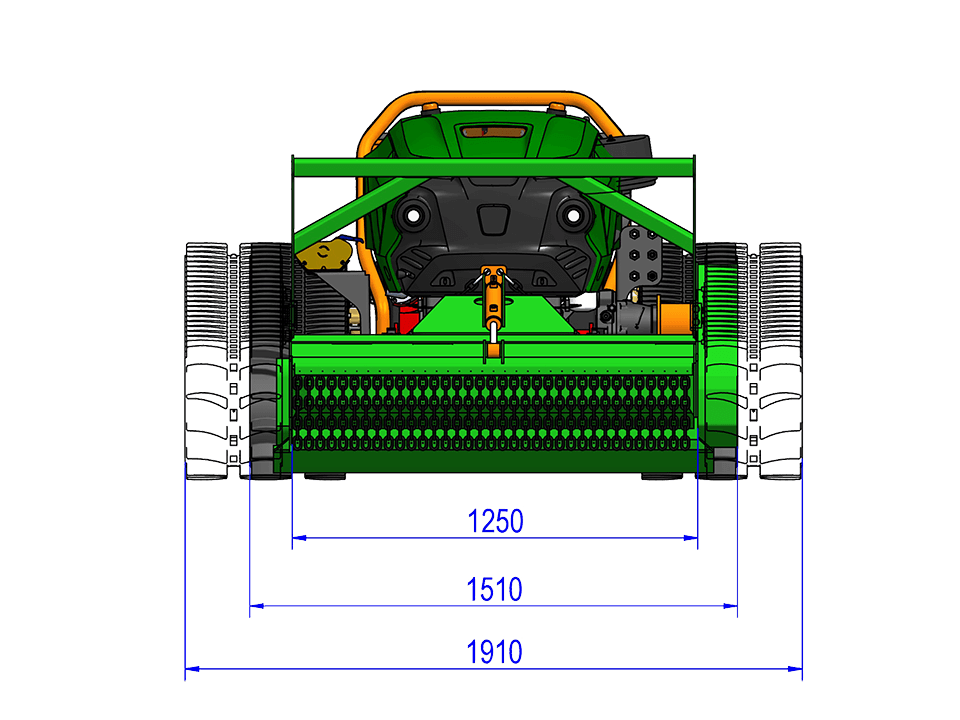

• EXTENDABLE UNDERCARRIAGE: 1510mm (Closed) > 1910 mm (Open)
• CUTTINIG WIDTH: 1500 mm
• STD FLAIL WEIGHT: 300-500 Kg
• VELOCITA’ ROTORE TRINCIA: 3300 giri/min
• MAIN ATTACHMENT PUMP: 70 lt @ 320 bar
• SERVICE PUMP: 20 lt @ 180 bar
• HYDRAULIC AUX LINES: 3 Proportional
• REMOTE CONTROLLED WINCH (OPTIONAL): 12V Integrated with the machine
• MULTICOUPLE HYDRAULIC QUICK CONNECTION: Yes

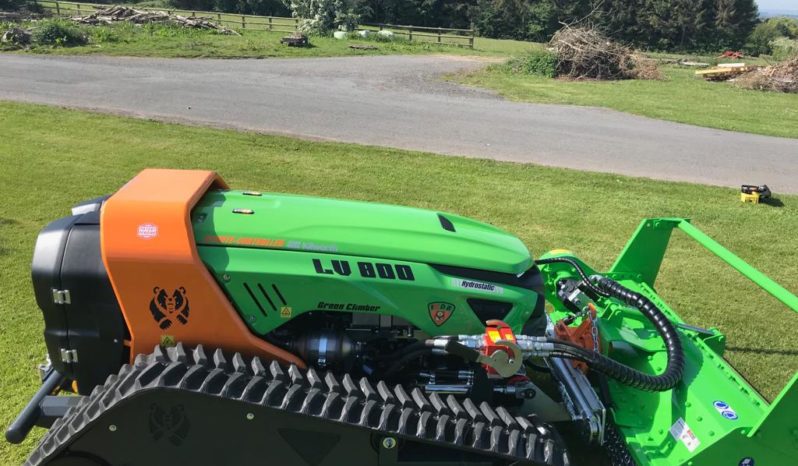

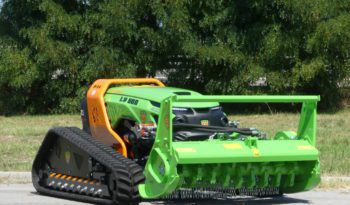

The Green Climber LV800 is currently the largest model in the Green Climber range. It is powered by a Kohler 4 cylinder intercooled turbo diesel engine which generates 75HP and, more importantly, 300Nm of torque. The engine has been specially developed for working on slopes and allows the LV600 to operate on slopes up to 60 degrees. Stability is ensured by rubber tracks which are hydraulically expandable from 1500mm to 1900mm wide.

Engine cooling is by means of a self cleaning “Cleanfix” reversible fan system which automatically keeps the radiator and grill clear to prevent overheating.

The hydrostatic transmission components are sourced from Poclain and Linde so top quality is assured.

A heavy duty flail mower is the standard fitment. The mower is designed and built for constant use in harsh conditions and has 400mm of hydraulic side shift to assist with cutting up close to trees and fencing. Swinging hammer and fixed tooth forestry mulchers are also available, along with power harrows, rotavators, shovels, trenchers, snow ploughs, sweepers and hedge cutters.
