New Logosol B751 Wood Processor MO7922

1 Video

Machine Details

Industry Arboriculture and Forestry
Condition New
Asset Type Wood Processor
Hours/Mileage (or N/A?)
Make Logosol
Model B751
Age New
Seller type Direct
Drive Type N/A
Fuel or Power type Petrol
Stock id MO7922
Features
  • Direct from manufacturer
  • Extended warranty options
  • Low and No Deposit
  • Low Rate Finance Offer
  • Manufacturers Warranty
  • National Delivery
  • Trailer Solutions
  • VAT Deferral Available

New Logosol B751 Wood Processor MO7922

Let's find out what they have to say about this machine...

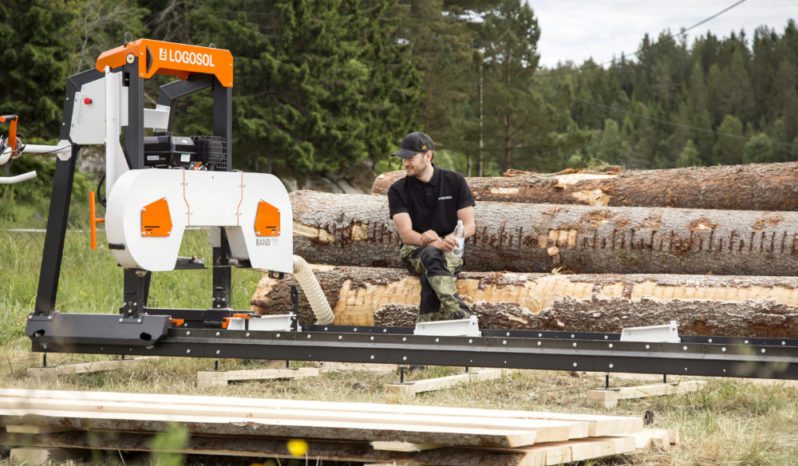

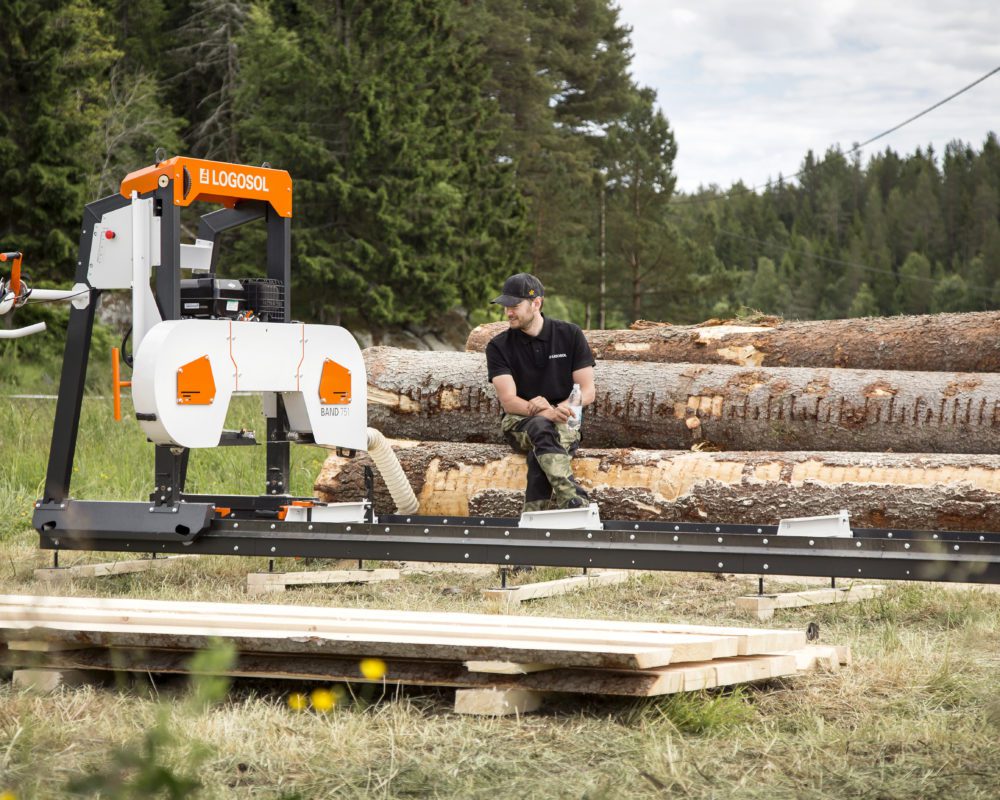

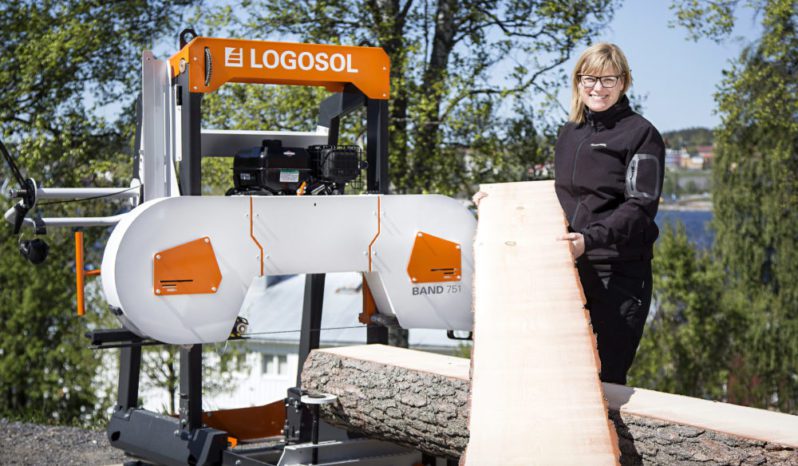

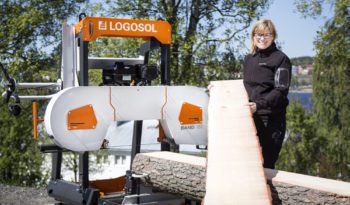

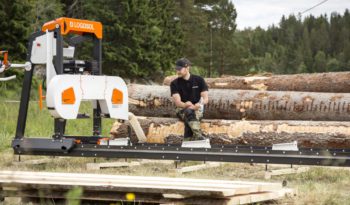

In its standard configuration, the Logosol B751 has a sawing length of 4.8 metres. This sawmill can manage logs of large diameters, up to 75 cm in diameter. With the fixed steps for depth of cut, you can easily set the sawmill to the desired board dimensions, quickly and accurately every time. You get a rigid and extremely functional band sawmill that is best in its class when it comes to sawing. Please view the video below.

Sawing in Fixed Steps

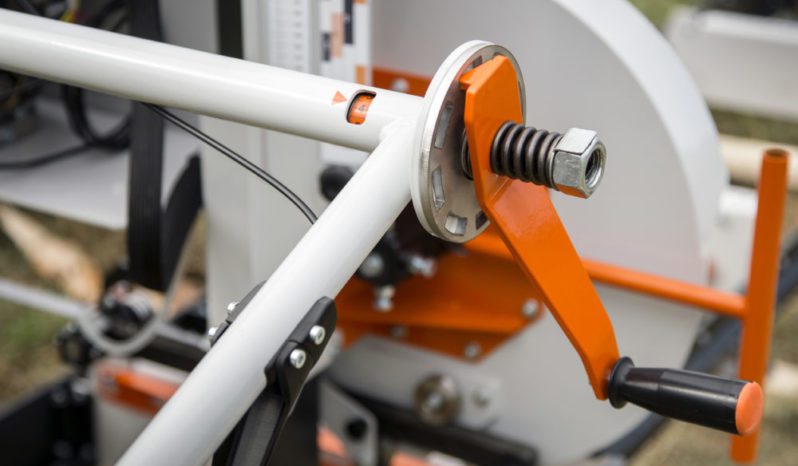

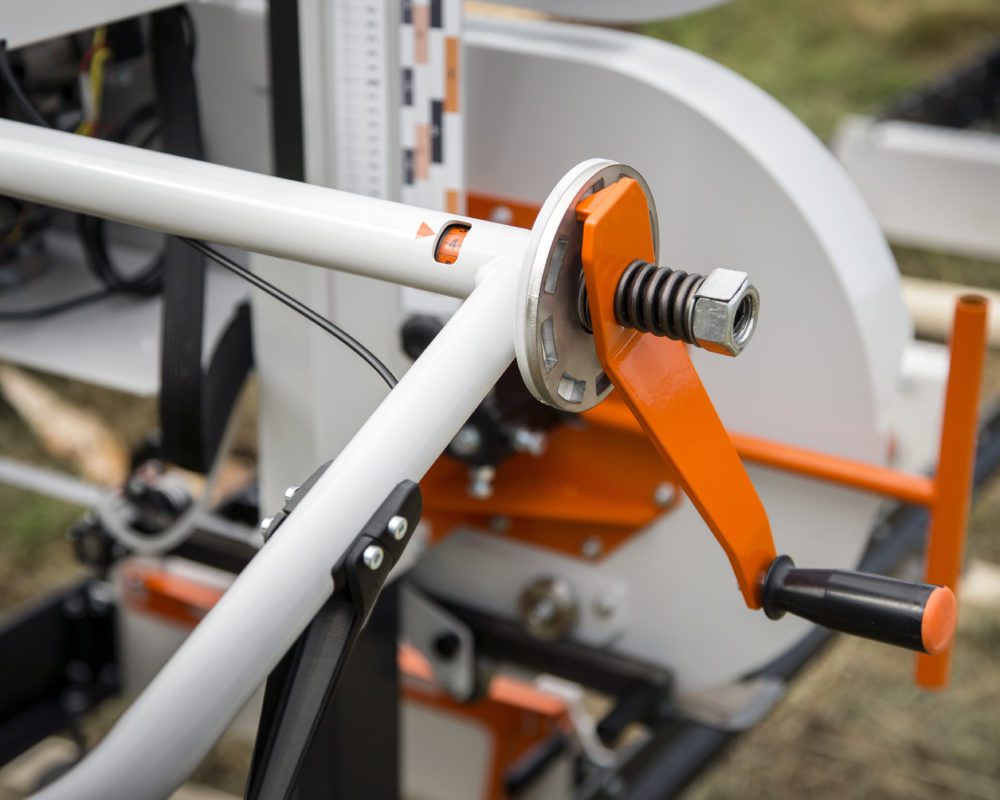

This sawmill model combines well-tried functions with innovative solutions. The saw head is adjusted in fixed steps, which gives you a quick and exact setting of depth of cut. The simplified setting of depth of cut is a clear legacy from the adjusting crank of the Logosol M8 sawmill. One rotation of the crank is always 1 inch, and one additional step compensates for the kerf.
On the absolute scale on the saw head there is also a Last Cut indicator, which helps you remember where the saw head was positioned at the previous cut and works as a reference for the next. By this, it becomes easier for the sawyer to produce timber of exactly the right dimensions. You work quickly and comfortably, plus you get a perfect sawing result.

Robust Design

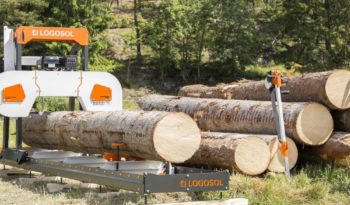

The Logosol B751 is a reliable and extremely robust band sawmill as well as it is easy to use. A smart log clamp and two log supports secure the log with great force, without damaging the timber. They work just as well when you are taking the first cuts as when cutting the last thin board.
The well-thought-out design gives a vibration-free and accurate operation. The rails and the log bed are generously strengthened by a steel frame especially adapted for sawing directly on the ground. The band wheels have fan blades, which blow out sawdust and keep it clean and tidy, both inside the sawhead as well as at the worksite.

Several Motor Options

Several motors options are available: both smaller, more affordable alternatives, and others with an abundance of power. As options there are one petrol-driven 13 hp engine, and two electric motors (4.6 or 8 kW). The electric motors are highly efficient and give close to double the rated power during operation. In horsepower this is equivalent to 9.5 and 20 hp respectively. Equipped with the 8 kW electric motor, the B751 can compete with significantly larger and more expensive sawmills.
The log moulder LM410 also fits on the rails, driven by either petrol or electricity. The cuter is 410 mm wide, which means that you can mill large 16’’ beams. Extensions, sawdust management systems and many other accessories make it possible to upgrade the B751 to suit your sawmilling needs.

Ready to Start

The Logosol B751 is an excellent band sawmill if you prefer to cut timber with a band blade rather than a chain. The sawmill comes preassembled and with a detailed user manual. You only have to assemble the rails/log bed before the sawmill is ready to start. You quickly get started with your production and can start sawing shortly after you have received the sawmill. In addition, included in the purchase, you also get band blade, levelling feet, one log clamp, two log supports, water cooling, adjustable blade guide and a two-year warranty.

KEY FEATURES:

• Easy-to-set-up sawmill with pre-assembled saw head. The bed would need building which would take approximately 2 hours.
• Levelling feet are included.
• Robust and solid. A stable design that gives you an amazing sawing result.
• Quick and accurate setting of the saw cut. The saw head is adjusted in fixed steps. One rotation of the crank always equals 1 inch. One step compensates for the kerf.
• The Last Cut indicator on the absolute scale helps you remember the previous cut and works as a reference for the next cut.
• A patent-pending log clamp with sturdy handle and robust design is included. It secures the log with great force without damaging the timber. It works just as well when you are taking the first cuts as when cutting the last thin board.
• Easy to keep the worksite clean. The band wheels have fan blades, which both blow out the sawdust and keep it clean and tidy inside the saw head. A great advantage when changing band blades and carrying out maintenance and service.
• Exact blade guiding, which you only find on considerably larger and more expensive sawmills.
• The petrol-driven model has a first-class centrifugal clutch that facilitate the engine thrust during operation.
• The logs can be loaded from either side of the sawmill.
• Fine adjustment on the bandsaw blade wheels thanks to the 3 bolts that allow perfect alignment.
• The metal band saw cover/guard folds up when accessing the ban wheels.
• A round saw dust discharge chute allow the sawdust to be collected if required

MACHINE SPECIFICATION:

Capacity
Effective sawing length (standard): 4.8 m
Max. log diameter: 75.1 cm
Max. cant width: 60 cm
Min. thickness of last board: 24 mm
Motor options
Petrol engine: 13 hp
Electric motor: 4.6 kW or 8 kW
Band blades
Band length: 3843 mm
Width: 33 mm
Band blade speed: 30 m/s
Band wheels
Band wheel diameter: 50 cm
Maintenance-free wheel bearings
Rotational speed:
1000 rpm
Available accessories
Big log supports:
Extra log clamp:
Bed extension: 1,14 m

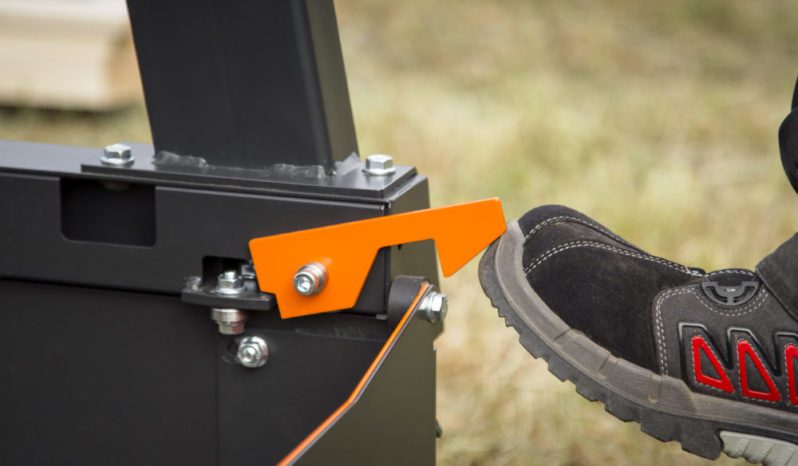

Quick Manual Toe Board:
Protective cover for sawhead:
Log rest holder kit:
Accessory pack includes: 1 x Quick toe board
2 x Long log rests
1 x Extra log clamp

Comes with 2-year warranty as standard
