The Fuelwood Factory is a combination of the Woodcutta 400 and either a Kindlet Pro, Splitta 360 or an Splitta 400 to create a fully automated arrangement for converting timber lengths into split logs or kindling. Various options are available to extend the capability of the line-up.

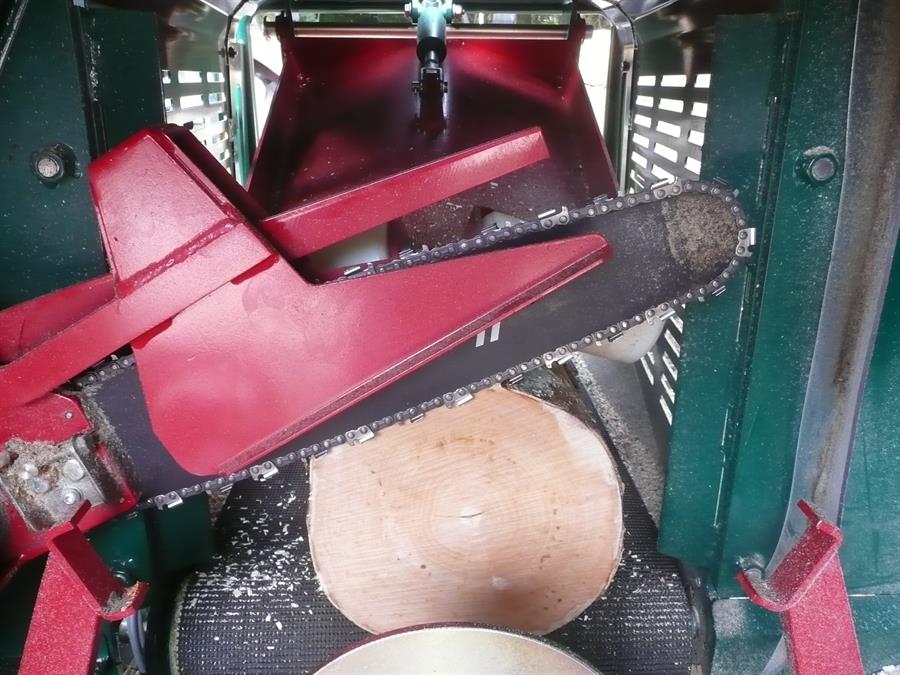

Woodcutta 400 converts the timber into cut rings using a hydraulic chainsaw, then transfers them to the Kindlet Pro or Splitta option. The rings are converted to a split product of consistent sectional size, regardless of the ring diameter. The sectional size can be easily and quickly adjusted from log to kindling sizes . The output is then presented for bulk loading or for bagging into net bags.
The Woodcutta boasts many unique features developed by Fuelwood, The log being cut is gripped and held so it cannot twist. The cutting bar system uses .404 bar/chain which automatically regulates the cutting pressure giving optimum performance. The waste and last ‘short’ log is automatically ejected from the machine keeping all the processed logs to exactly the same length.
Working at optimum timber Ø40cm the machine is capable of producing 13m2/hour (solid!) per hour.
KEY FEATURES:
Fully automatic – regular sectional size – produces logs or kindling wood ready aligned for bagging – proven design – high output
FUELWOOD FACTORY OPTIONS:
|
Operation
|
Cutting Unit |
Kindling Only
|
Logs & occasional Kindling |
Bulk Logs
|
Woodcutta 400TM
– 3 Phase 415v 32 Amp
– 18kw power pack
– Dust Extractor |
X
|
X |
X
|
Timber Deck
Uniforest DM4000/3
3 chain deck
4m length
Heavy duty drive rollers |
X
|
X |
X
|
Splitting Unit |
|
Kindlet – ProTM 3 Phase 15cm(6″) 20cm (8″) 25cm (10″) 29cm(11.5″) |
X
|
|
|
Splitta 400TM 3 Phase 15cm(6″) 20cm (8″) 25cm (10″) 33cm (13″) |
|
X |
X
|
Manual BaggaTM |
X
|
X |
|
ElevatorTM – Bulk Output
– 4.5m long inc Log Cleanatm
– adjustable height
– swivel wheels |
|
|
X
|
Hydraulic Motor Mover For Elevator
Driven wheels to move the elevator left to right via radio control |
|
|
X
|
X-Frame Bagga |
|
|
X x3
|
Radio Control System |
X
|
X |
X
|
Buy from (Per Week)
|
£310.59
|
£349.38
|
£392.89
|
–
