New Falcon F160Z Access Platform 10048

Machine Details

Industry Arboriculture and Forestry
Condition New
Asset Type Access Platform
Hours/Mileage (or N/A?) N/A
Make Falcon
Model F160Z
Age New
Seller type Dealer (Non-Franchised)
Drive Type Tracked
Fuel or Power type Hybrid
Stock id 10048
  • Additional attachments
  • Bespoke build options
  • Bespoke colour options
  • Direct from manufacturer
  • Manufacturers Warranty
  • National delivery
  • Part-ex considered
  • Remote Control
  • Tracked
  • Trailer Solutions Available

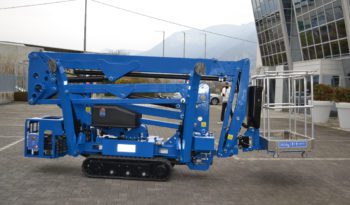

New Falcon F160Z Access Platform 10048

Let's find out what they have to say about this machine...


The Falcon F160Z Hybrid is an extremely versatile tracked boom.  It is easy to transport and easy to track to location for set up.  Added benefits are low weight and low ground pressure, high end specification ensure the highest levels of safety and quality.  Flexible outrigger setting, limited space set up make it perfect for all aspects of tree care and maintenance.

Key features:

The F160Z boasts the following as standard:

  • Working height 15.8 meters
  • Working outreach 7.5 meters
  • Unrestricted basket capacity 250kg
  • Aluminium basket 1.4m x 0.70m x 1.10m
  • Turret rotation 180 degrees
  • Machine Dimensions (transport position) 1.99m x 3.87m x 0.78m (H x L x W)
  • Gradeability 25%
  • Weight approx. 2400kg
  • Articulated boom (Two elements)
  • Telescopic boom (main boom + 1 extension)
  • Jib – raise and drive functionality
  • Engine Start/Stop controls in the basket
  • Basket with aluminium guard rails
  • Automatic Basket levelling
  • Basket load sensing device
  • 4 Hydraulic outriggers
  • Automatic Stabilization
  • Power supply to the basket
  • Drive speed 1.5 km/h
  • 2.4 GHz remote control with integrated display and go home function, stabilization and stop/start
  • AC 2,2 kW motor
  • Hour meter
  • EN280:2013 CE Certified
  • ANSI Certified
  • Available with either Diesel (Lombardini) or Petrol (Honda 15HP) engine.
    • Full Lithium option available as power source 48V 100 Ah

Extra options include

  • Dust cover for storage
  • Nylon outrigger foot plates with recess
  • Special colours – RAL codes required at point of order
  • Anti Entrapment Device
  • Non marking tracks
  • Air/water supply to basket
  • Winch 230Kg

Trailer can also be provided.
