New Falcon F135Z Access Platform 10049

1 Video

Machine Details

Industry Arboriculture and Forestry, Construction, Farming, Groundcare
Condition New
Asset Type Access Platform
Hours/Mileage (or N/A?) N/A
Make Falcon
Model F135Z
Age New
Seller type Dealer (Non-Franchised)
Drive Type Tracked
Fuel or Power type Hybrid
Stock id 10049
  • Additional attachments
  • Bespoke build options
  • Bespoke colour options
  • Direct from manufacturer
  • Manufacturers Warranty
  • National delivery
  • Part-ex considered
  • Remote Control
  • Tracked
  • Trailer Solutions Available

New Falcon F135Z Access Platform 10049

Let's find out what they have to say about this machine...

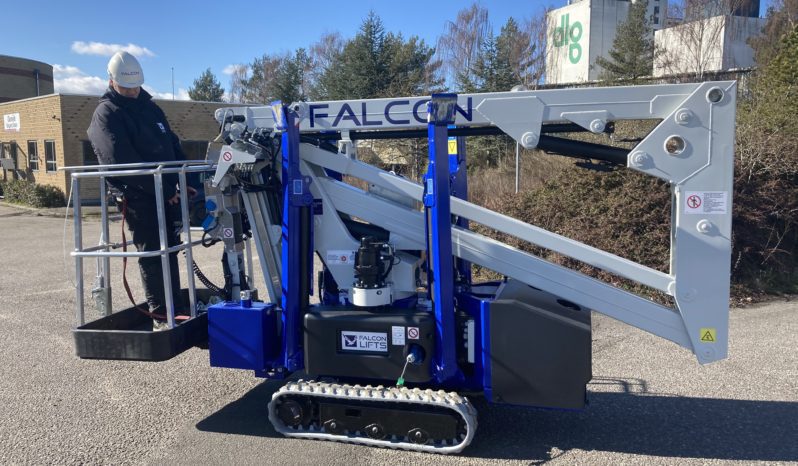

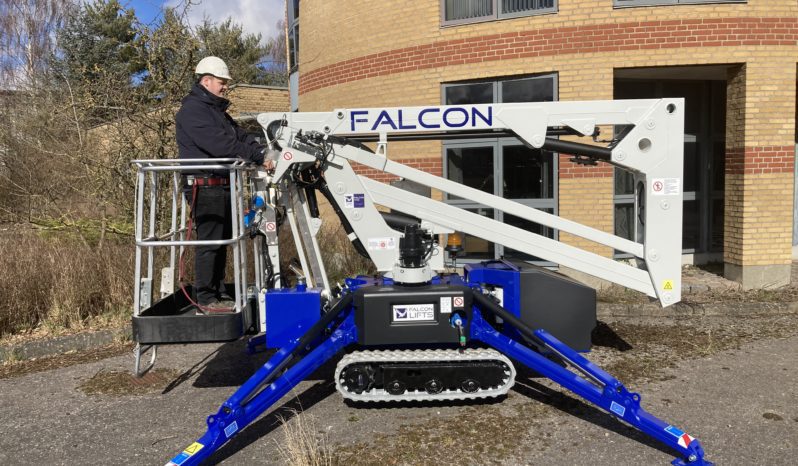

The Falcon F135Z Hybrid is an extremely versatile tracked boom.  It is easy to transport and easy to track to location for set up.  Added benefits are low weight and low ground pressure, high end specification ensure the highest levels of safety and quality.  Flexible outrigger setting, limited space set up make it perfect for all aspects of tree care and maintenance.

The F135Z boasts the following as standard:

  • Working height 13 meters
  • Working outreach 6.5 meters
  • Unrestricted basket capacity 200kg
  • Aluminium basket 1.3m x 0.78m x 1.10m
  • Turret rotation 320 degrees
  • Machine Dimensions (transport position) 2m x 3.76m x 0.78m (H x L x W)
  • Gradeability 31%
  • Weight approx. 1600kg
  • Articulated boom (one element)
  • Telescopic boom (main boom + extension)
  • Jib
  • Engine Start/Stop controls in the basket
  • Basket with aluminium guard rails
  • Automatic Basket levelling
  • Basket load sensing device
  • 4 Hydraulic outriggers
  • Power supply to the basket
  • Drive speed 1.5 km/h
  • Wired remote control
  • AC 1,5 kW motor
  • Hour meter
  • EN280:2013 CE Certified
  • ANSI Certified
  • Available with either Diesel (Lombardini) or Petrol (Honda 15HP) engines

Extra options include

  • Dust cover for storage
  • Nylon outrigger foot plates with recess
  • Special colours – RAL codes required at point of order
  • Anti Entrapment Device
  • Non marking tracks
  • Air/water supply to basket

Trailer can also be provided as an extra too.
