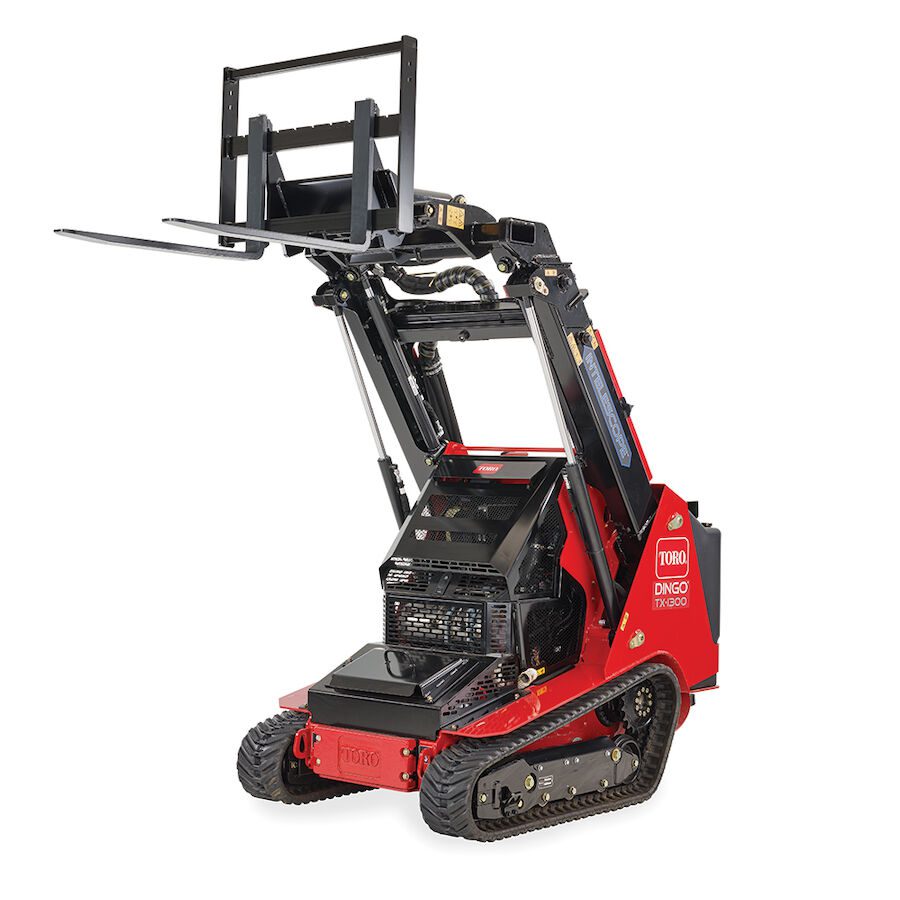

For sale a New Toro Dingo TX 1300 Tracked Compact Utility Loader
New Toro Dingo TX 1300 Tracked Compact Utility Loader is ideal for landscape, hardscape and tree care jobs, the TX 1300 brings a new combination of power, reach and convenient control to the Toro® Dingo® lineup.
Yanmar® Tier IV diesel engine
With a 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs of rated operating capacity, it’s the user-friendly workhorse you need to save time. The exclusive INTELESCOPE® loader arm with SmartLoad adds 26″ of reach, and the telescoped hinge-pin height of 109″ means you can lift loads up and over the side of a dumpster or truck for maximum productivity.
One hand and thumb-controlled
Plus, you can operate the Toro patented traction controls with one hand and thumb-controlled telescoping extension and auxiliary functions (in the loader arm control) with the other to pick, place and dump materials with ease all day long.
Check out the video: https://www.youtube.com/watch?v=E4U0GgLmJ30
Specifications
- Air Filter Remote dual element
Dump Angle 38 degrees
Dump Height (cm) 230.3
Dump Height (inches) 90.7
Engine Make Yanmar
Fuel Tank (gallons) 11
Fuel Tank (liters) 42
Fuel Type Diesel
Ground Clearance (cm) 15
Ground Clearance (inches) 5.9
Ground Pressure 5.5 psi
Ground Speed Forward (mph) 4.7
Ground Speed Foward (km/h) 7.6
Ground Speed Reverse (km/h) 7.6
Ground Speed Reverse (mph) 4.7
Hinge Pin Height (cm) 277.4
Hinge Pin Height (inches) 109.2
Hydraulic Flow Auxilary 14.3 gpm
Hydraulic Flow Traction 13.4 gpm (each pump)
Hydraulic Pressure 3,200 psi
Loader Arms Radial
Manufacturer’s Gross HP Rating (HP) 37
Manufacturer’s Gross HP Rating (kW) 27
Max Operating Height (cm) 337.8
Max Operating Height (inches) 133
Oil Capacity (liters) 4.7
Oil Capacity (quarts) 5
Overall Height (cm) 143.5
Overall Height (inches) 56.5
Overall Length w/bucket (cm) 262
Overall Length w/bucket (inches) 103.1
Overall Length w/o bucket (cm) 215.6
Overall Length w/o bucket (inches) 84.9
Overall Width (cm) 116.8
Overall Width (inches) 46
Rated Operating Capacity – 35% of Tip Capacity (kg) 590
Rated Operating Capacity – 35% of Tip Capacity (lbs) 1300
Reach – Fully Raised (cm) 67.8
Reach – Fully Raised (inches) 26.7
Reservoir Capacity (gallons) 9.2
Reservoir Capacity (liters) 34.8
RPM 3000
Tip Capacity (kg) 1685
Tip Capacity (lbs) 3714
Track Length (inches) 126.6
Track Length(cm) 322
Track Width (cm) 23
Track Width (inches) 9.1
Tracks MERT track with “TF” style tread
Traction Dual Hydrostatic Pump
Weight (kg) 1750
Weight (lbs) 3858
Wheelbase (inches) 39
–
