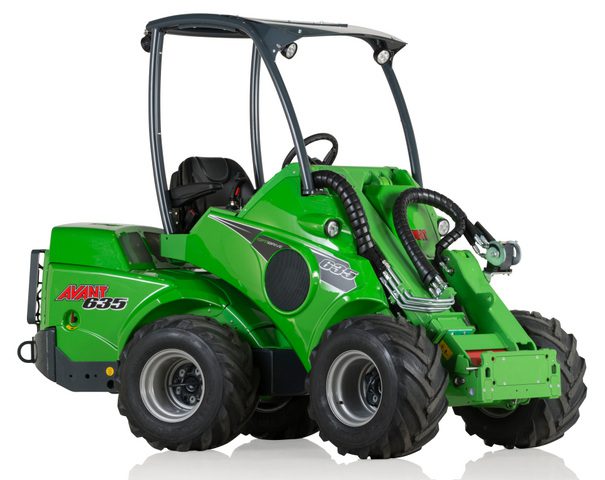

For Sale. New Avant 635 Mini Loader for sale available in the UK with low fixed-rate. Contact Arblease direct for some amazing deals!

The Avant 600 series – A perfect combination of power and agility

Avant 600 series is the real all-rounder in the range. It combines power, lift capacity and professional hydraulics which are in a very compact package.

This makes 600 series a very popular machine for many professionals in landscaping, groundcare, construction, farming, horse stables, and many other customers. The max. 1,1-tonne lift capacity is just perfect for a multitude of jobs and the powerful auxiliary hydraulics runs almost all Avant attachments.

Easy transporting

The customers also like the easy transporting of 600 series. Thanks to the compact dimensions it is possible to fit both the loader and the attachments on the trailer, and inside the van if necessary.

The 600 series customers also benefit from Avant’s telescopic boom, which is a standard feature. Lift height and outreach are excellent for a machine of this size and they can be steplessly adjusted with the teleboom. This guarantees very fast and ergonomic load handling.

Best possible traction

The great Avant stability is present in 600 series as well, and the excellent visibility to the attachment and work area is valued by all operators. Avant’s 4×4 hydrostatic drive system gives the best possible traction in all situations.

The comprehensive range of options are available for 600 series also, including all cab options. From over 200 attachments specially designed for Avant loaders the customers can choose the best package for any use.

• Lift capacity 1100 kg
• Lift height 2.8 m
• Engine power 26 hp
• Drive speed 11-20 km/h
• Optidrive™ drive circuit gives more power for the drive and hydraulic attachments
• Perfect for small job sites with limited or narrow accesses
• Easy to transport with a car trailer

Check out all the options for the 600 series here: OPTIONS

Check out the specialist Forestry and Arb attachments Avant offer: FORESTRY & ARB

Check out the full range of over 200 attachments: Full Attachment Range

–

TECHNICAL INFORMATION – AVANT 630

• LIFT CAPACITY 1100 kg
• ENGINE POWER 26 hp
• LIFT HEIGHT 2.8 m
• SPEED 12 km/h

SPECIFICATIONS

LENGTH 2570 mm

WIDTH 1290 mm

HEIGHT 2035 mm

WEIGHT 1330 + 170 kg

STANDARD WHEELS 26×12.00-12″ Grass/ TR

TRANSMISSION, DRIVE hydrostatic Avant OptidriveTM

PULLING FORCE MAX. 1200 kp

DRIVE SPEED MAX. 12 km/h

AUX. HYDRAULICS OIL FLOW / PRESSURE 44 l/min 200 bar

TURNING  RADIUS INSIDE/OUTSIDE 900 / 2190 mm

MAX. LIFTING HEIGHT 2835 mm

TIPPING LOAD 1100 kg

MAX. BREAKOUT FORCE / 50 CM 1250 kg

ENGINE MAKE AND TYPE Kubota D1105, 3-cyl

ENGINE OUTPUT (ECE R120) 19 kW (26 hp)

MAXIMUM TORQUE 72 Nm @ 2200 rpm

FUEL Diesel

TECHNICAL INFORMATION – AVANT 635

• LIFT CAPACITY 1100 kg
• ENGINE POWER 26 hp
• LIFT HEIGHT 2.8 m
• SPEED 11 km/h

SPECIFICATIONS

LENGTH 2570 mm

WIDTH 1290 mm

HEIGHT 2035 mm

WEIGHT 1360 + 170 kg

STANDARD WHEELS 26×12.00-12″ Grass/TR

TRANSMISSION, DRIVE hydrostatic Avant OptidriveTM

PULLING FORCE MAX. 1200 kp

DRIVE SPEED MAX. 11 km/h

AUX. HYDRAULICS OIL FLOW / PRESSURE 50 l/min 200 bar

TURNING RADIUS INSIDE/OUTSIDE 900 / 2190 mm

MAX. LIFTING HEIGHT 2835 mm

TIPPING LOAD  1100 kg

MAX. BREAKOUT FORCE / 50 CM 1250 kg

ENGINE MAKE AND TYPE Kubota V1505 Stage V, 4-cyl.

ENGINE OUTPUT (ECE R120) 19 kW (26 hp)

MAXIMUM TORQUE 93 Nm @ 1700 rpm

FUEL Diesel

TECHNICAL INFORMATION – AVANT 640

• LIFT CAPACITY 1100 kg
• ENGINE POWER 26 hp
• LIFT HEIGHT 2.8 m
• SPEED 20 km/h

SPECIFICATIONS

LENGTH 2570 mm

WIDTH 1290 mm

HEIGHT 2035 mm

WEIGHT 1420 + 170 kg

STANDARD WHEELS 26×12.00-12″  Grass / TR

TRANSMISSION, DRIVE hydrostatic Avant OptidriveTM

PULLING FORCE MAX. 1400 kp

DRIVE SPEED MAX. 10/20 km/h (2 speed)

AUX. HYDRAULICS OIL FLOW / PRESSURE 50 l/min 200 bar

TURNING RADIUS INSIDE/OUTSIDE 900 / 2190 mm

MAX. LIFTING HEIGHT 2835 mm

TIPPING LOAD  1100 kg

MAX. BREAKOUT FORCE / 50 CM 1250 kg

ENGINE MAKE AND TYPE Kubota V1505, Stage V 4-cyl.

ENGINE OUTPUT (ECE R120) 19 kW (26 hp)

MAXIMUM TORQUE 93 Nm @ 1700 rpm

FUEL Diesel

TECHNICAL INFORMATION – AVANT 645i

• LIFT CAPACITY1190 kg
• ENGINE POWER44 hp
• LIFT HEIGHT2.8 m
• SPEED12 km/h

SPECIFICATIONS

STAGE V

LENGTH 2610 mm

WIDTH 1290 mm

HEIGHT 2060 mm

WEIGHT 1620 kg

STANDARD WHEELS 26×12.00-12″  Grass / TR

TRANSMISSION, DRIVE Hydrostatic Avant OptidriveTM

PULLING FORCE MAX.  1400 kp

DRIVE SPEED MAX. 12 km/h

AUX. HYDRAULICS OIL FLOW / PRESSURE 75 l/min 200 bar

TURNING RADIUS INSIDE/OUTSIDE 940 / 2250 mm

MAX. LIFTING HEIGHT 2835 mm

TIPPING LOAD  1190 kg

MAX. BREAKOUT FORCE / 50 CM 1250 kg

ENGINE MAKE AND TYPE Kubota V1505-CR-TE5, Stage V, 4-cyl.

ENGINE OUTPUT (ECE R120) 33 kW (44 hp)

MAXIMUM TORQUE 118 Nm @ 2000 rpm

FUEL Diesel

TECHNICAL INFORMATION AVANT 650i

• LIFT CAPACITY 1190 kg
• ENGINE POWER 44 hp
• LIFT HEIGHT 2.8 m
• SPEED 23 km/h

–
