LEGUAN – Versatile and reliable self-propelled access platforms

Leguan Lifts – Straight to the Point

LEGUAN LIFTS specialises in designing and manufacturing reliable and technologically advanced self-propelled access platforms. Leguan has a long tradition in this field; the first self-propelled access platform with outriggers was introduced in 1994. Leguan Lifts is part of the fast-growing Avant Tecno Group from Finland.

Every spider lift is designed with extraordinary all-terrain capabilities and robust boom structure, which makes Leguans versatile and fit for any access job. Leguans are built to withstand all climates from the heat of Australia to the freezing cold winters of the Nordics. In recent years, Leguan Lifts has completely restructured their product selection introducing many unseen features and the most user-friendly interface to date.

• Unrivalled all-terrain capabilities
• Robust boom construction and protected chassis
• Efficient hydraulics for simultaneous multi-boom operation
• Industry-leading side reach and up and over clearance
• Highest standard of safety and user-friendly design

Versatile.

Leguan spider lifts are known for their exceptional off-road capabilities, and industry-leading gradeability. Sturdy track or tire chassis with leading ground clearance and travel speeds ensure rapid transitioning through snow or mud. The fuel-efficient combustion engine and silent electric operation makes Leguan a great fit for both inside and outside use, and the compact size makes transportation easy.

Intuitive and user-friendly.

Advanced hydraulic design allows smooth and simultaneous boom movements, which makes it easy to maneuver Leguans in narrow places and maintain distance to walls. The new Leguan spider lifts are equipped with user-friendly features such as automatic levelling that allows effortless outrigger levelling with just a single push of a button, even on challenging terrain.

Next generation features.

Both the safety features and the proportional outreach monitoring system are controlled by a modern PLC that ensures the highest standard of safety combined with unrivalled outreach in all situations. Leguan Lifts lead the way with superior industrial design, numerous technological innovations and smart energy saving functions, which provide Leguans with high resale values over time.

Options

Leguan spider lifts are always well-equipped and come with many advanced features as standard to ensure the highest efficiency. However, you can equip your own Leguan with many additional features to match the requirements of your line of work or job sites.

Some of the most popular optional features are the LED lighting for the operating panel, which allows better visibility of the controls in darker conditions, and the outrigger beacons that improve work safety. Inquiry more about the standard and optional features from your local Leguan dealer.

–

TECHNICAL INFORMATION – LEGUAN 135 NEO

• WORKING HEIGHT
• 4 m
• SIDE REACH
• 1 m
• LIFT CAPACITY
• 250 kg
• PLATFORM HEIGHT
• 4 m

USER-FRIENDLY AND VERSATILE JOYSTICK-CONTROLLED SPIDER LIFT

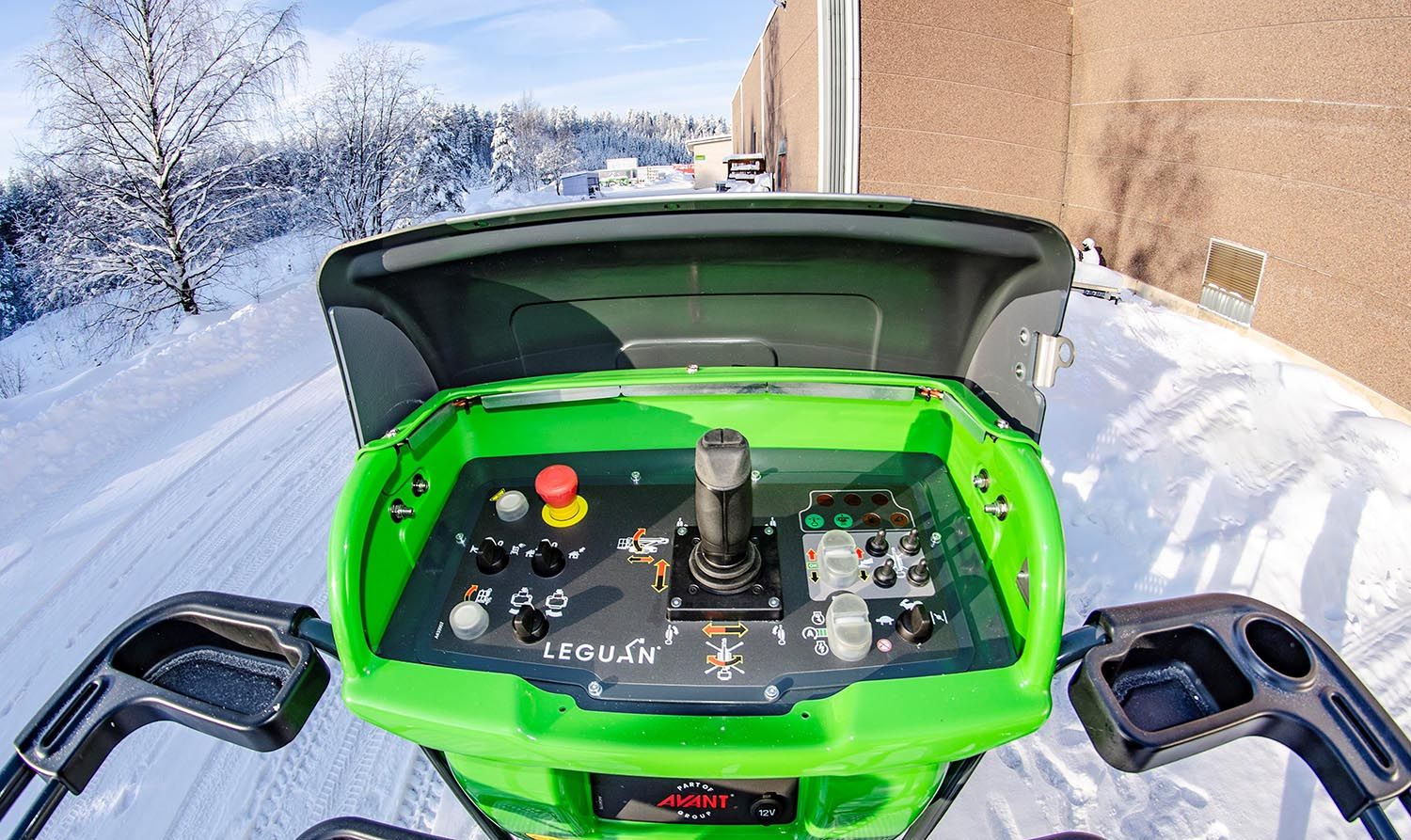

LEGUAN 135 NEO represents new generation of spider lifts combining easy-to-use interface, heavy lifting capacity, and efficiency-enhancing technology. The state-of-the-art joystick control allows simultaneous use of multiple boom movements with just one hand.

Setting up or finishing the operation is efficient with the help of the smart automatic levelling function and the home function that brings booms automatically back to transport position.

Transitioning the Leguan 135 NEO through tight entrances is easy due to smooth drive control and small width of the spider lift. The new innovative boom structure helps the operator to maintain distance to the walls and the unparalleled user interface makes controlling the spider lift easier than ever before.

The Leguan 135 NEO is a great fit for rental use and all kinds of facility maintenance and installation work both indoors and outdoors.

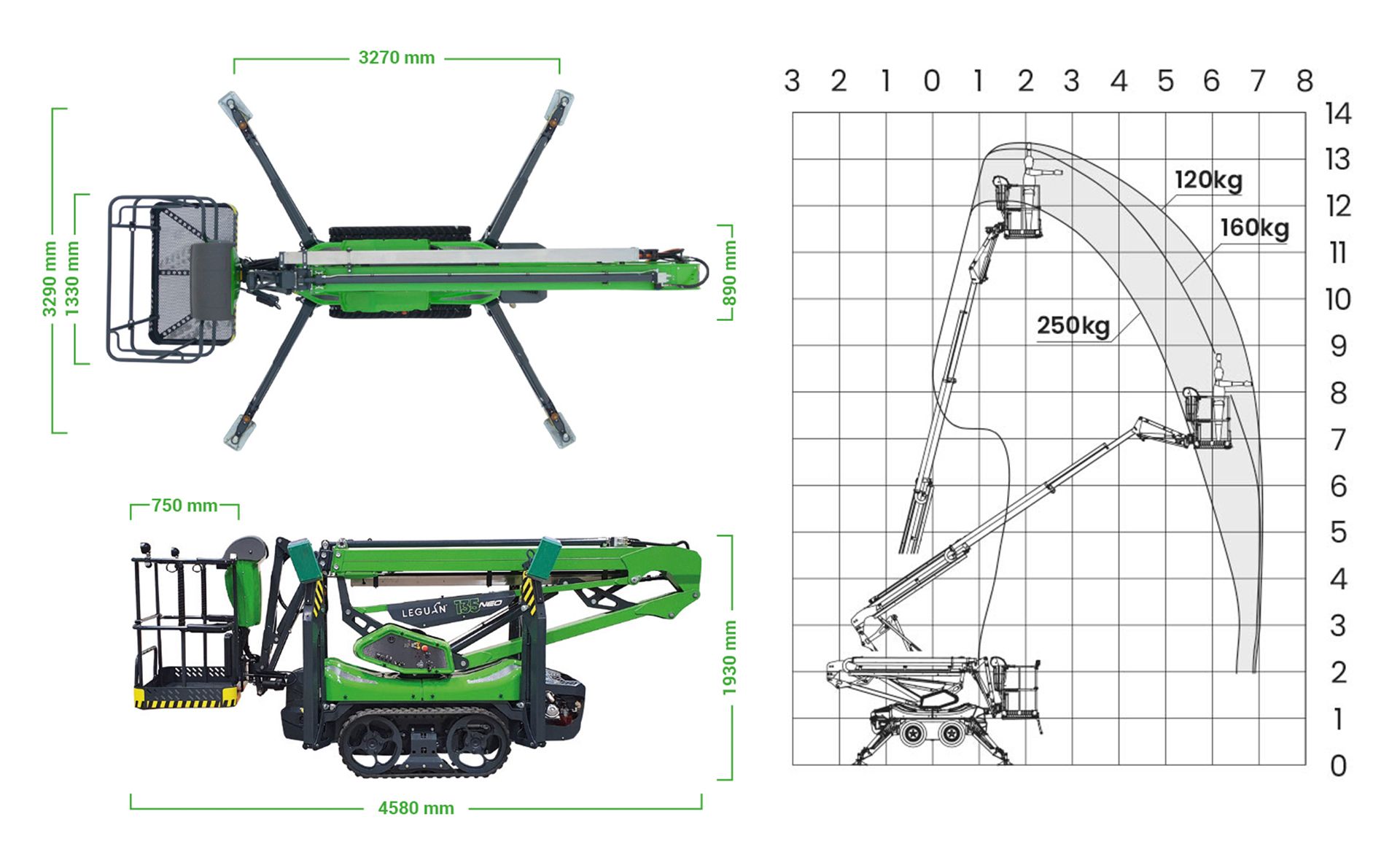

 TECHNICAL FEATURES

• LIFT CAPACITY 250 kg (2 persons)
• WORKING HEIGHT 13.40 m
• PLATFORM HEIGHT 11.40 m
• OUTREACH 7.1 m (120 kg) – 6.6 m (250 kg)
• TRANSPORT DIMENSIONS, L X W X H 58 x 1.33 x 1.93 m
• PLATFORM DIMENSIONS 1.33 x 0.75 m
• ROTATION OF THE PLATFORM 80º (±40º)
• SLEWING 360º
• GRADEABILITY 40% (22º)
• DIMENSIONS W/O PLATFORM, L X W 3.91 x 0.89 m
• OUTRIGGER SUPPORT DIMENSIONS 3.27 x 3.29 m
• SLOPE FOR OUTRIGGERS 21% (12º)
• WEIGHT 1.650 kg
• ENGINE Honda 13 hp petrol or
• 230 V / 2.2 kW electric
• DRIVE SYSTEM: HYDRAULIC 4WD / tracks
• DRIVE SPEED 2.5 km/h

Standard features

• 13 hp Honda petrol engine + 230 V electric motor
• 230 V and 12 V power outlets on platform
• Automatic engine RPM control
• Automatic start-stop function for electric motor
• Automatic levelling of the outriggers
• Proportional outreach monitoring system
• Electric rotation of the platform
• Home function / Back to work position function
• Electric and hand pump powered emergency lowering
• Lower controls
• 12 V booster points
• Optional features
• Platform control panel lighting and LED spotlights
• Remote control for driving and outriggers
• Tool trays on platform
• Outrigger beacons
• Hose to platform (air/water)
• Signal horn
• Larger plates for outriggers
• Non-marking tracks / tyres
• Narrow single person platform
• Leguan special trailer

–
