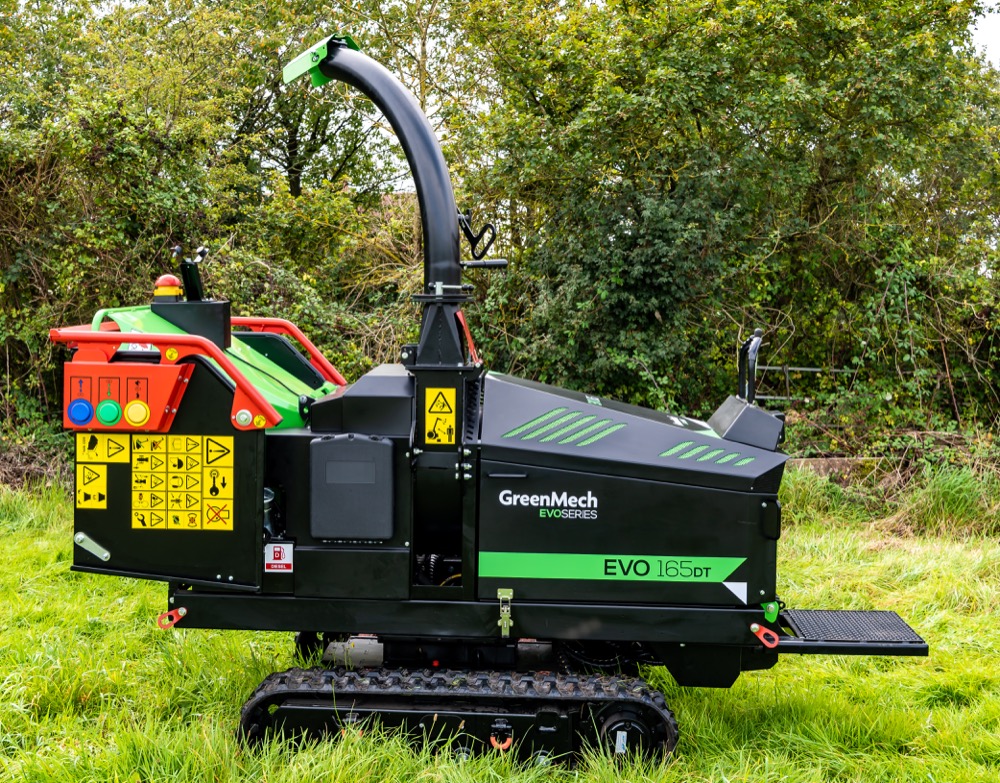

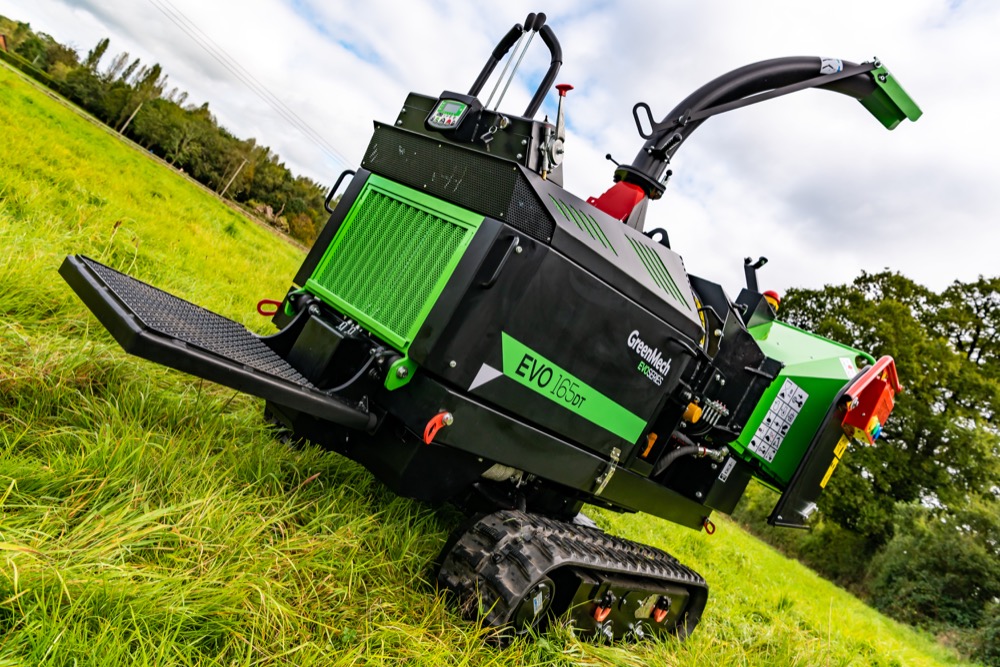

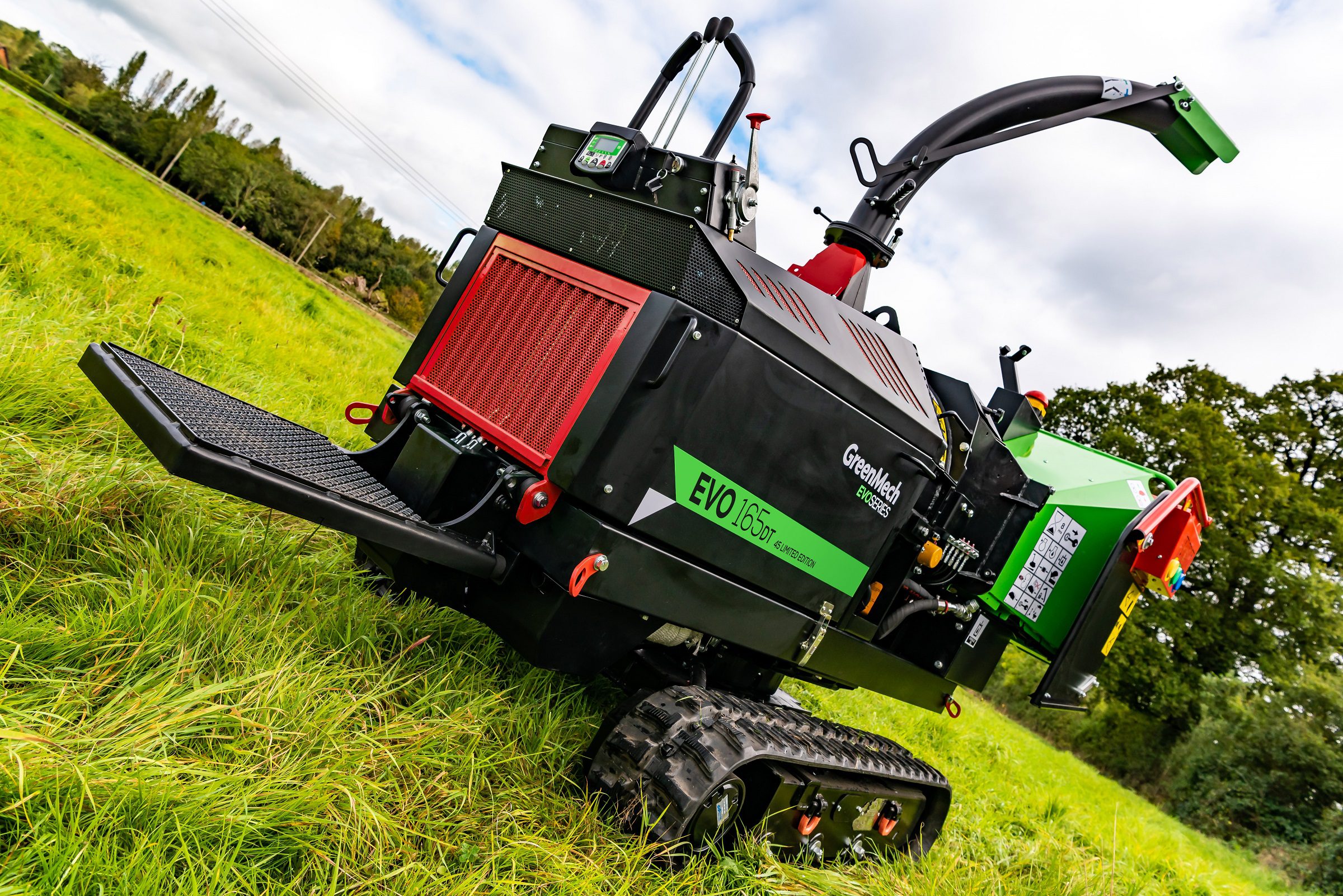

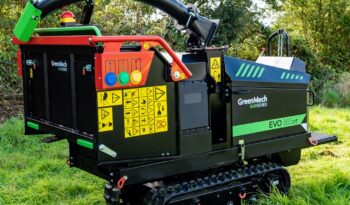

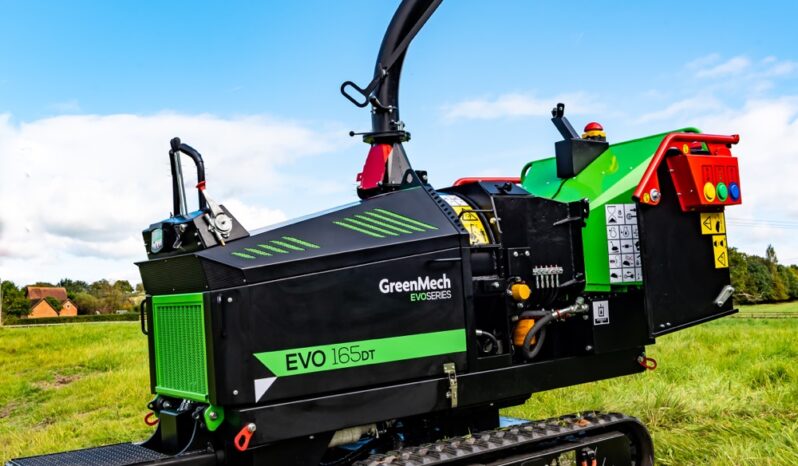

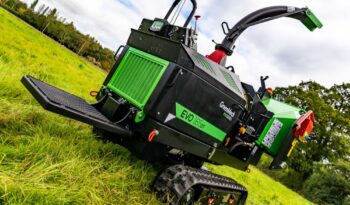

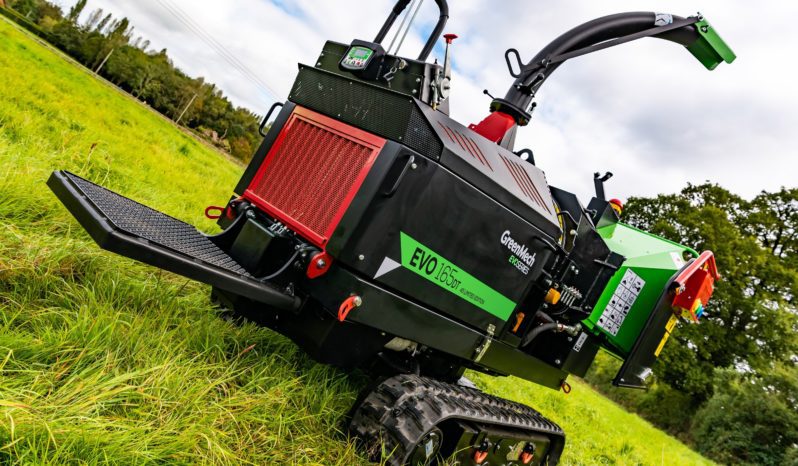

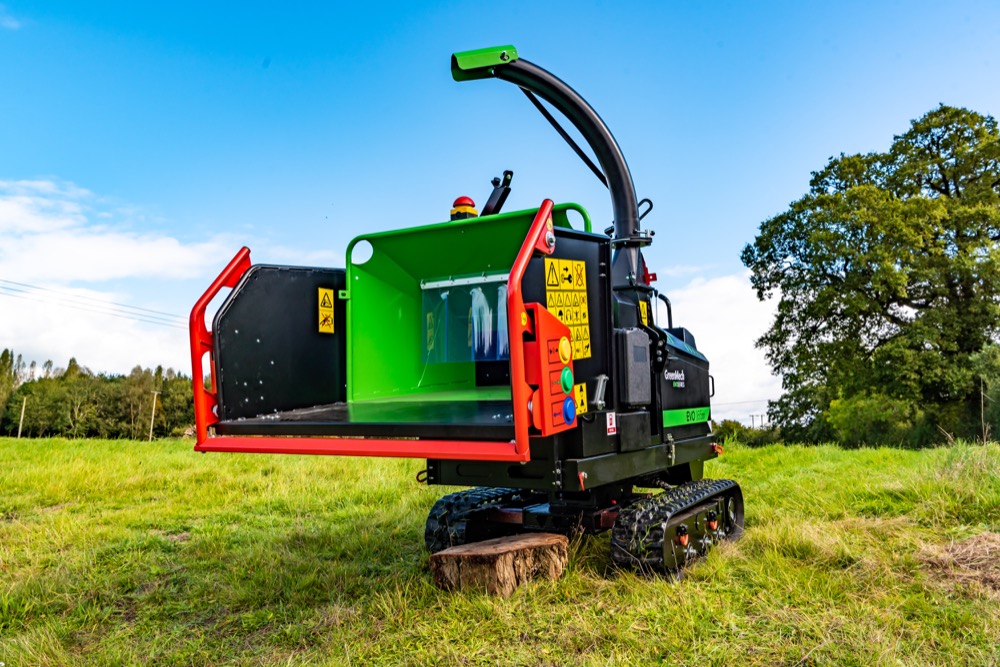

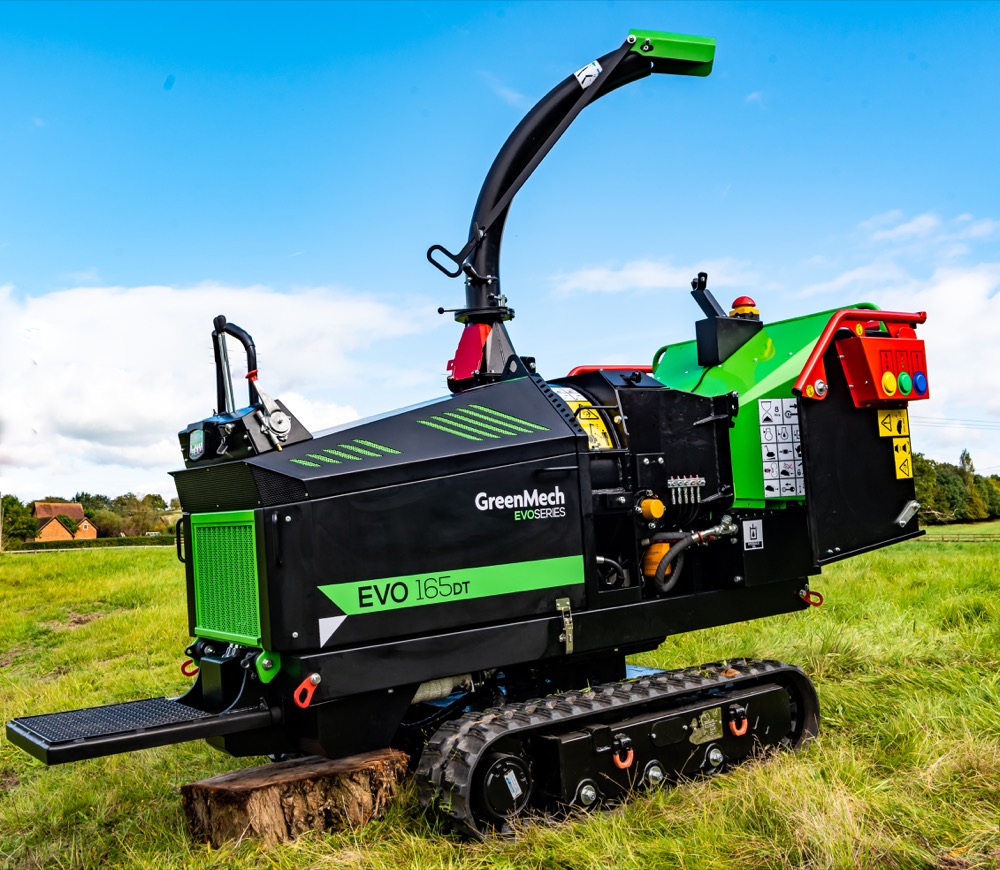

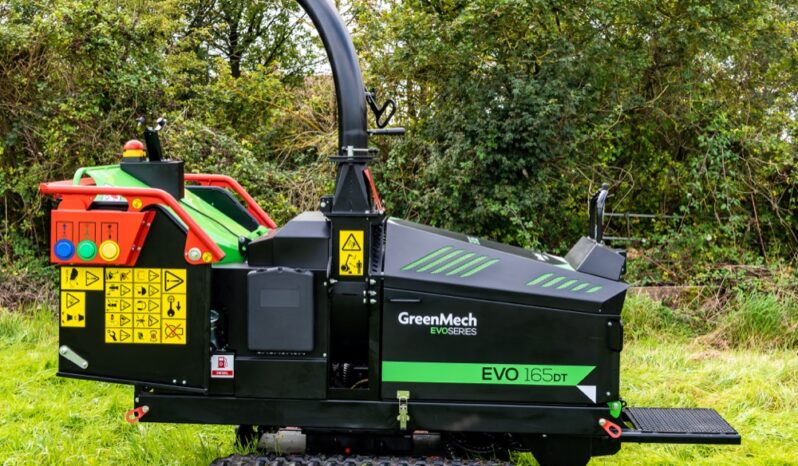

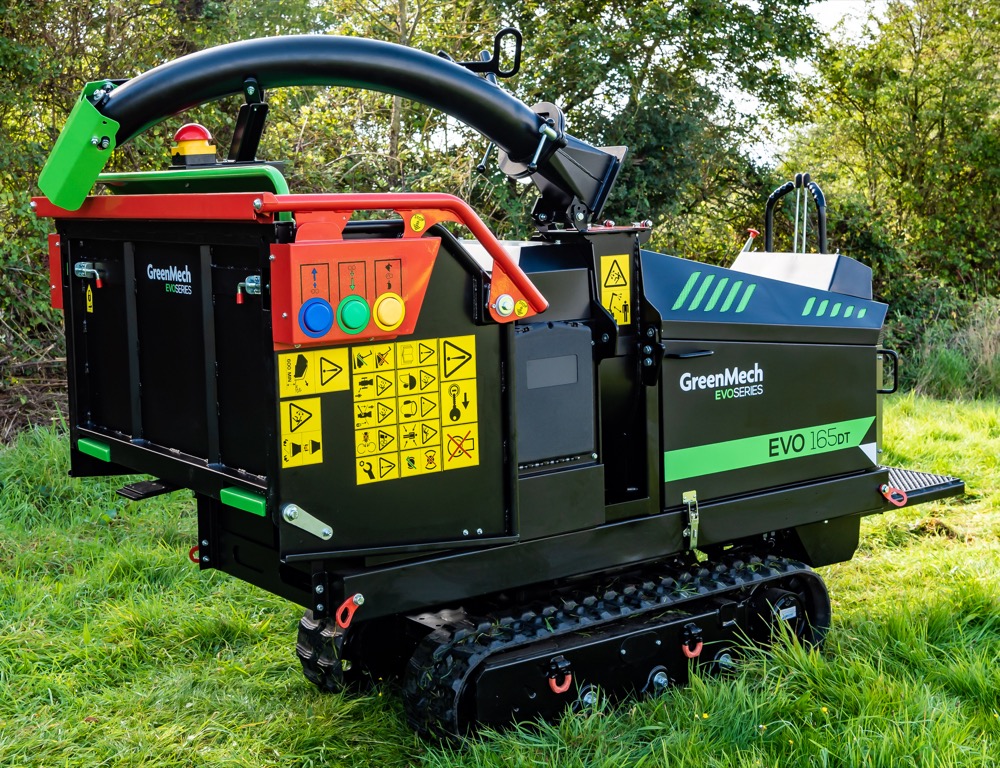

EVO 165DT

EXPERIENCE THE EVOLUTION BUT ON TRACKS

The EVO 165DT represents everything that’s evolutionary in a
tracked chipper.

We’ve listened to the industry and used all our design and
manufacturing experience to develop the new 165mm capacity track machine that
will deliver exactly what you’ve been looking for

Key features

• More Aggressive torque
• More Aggressive Bite
• More Throughput
• 165mm Capacity
• Variable Width Tracks
• 194mm Ground Clearance

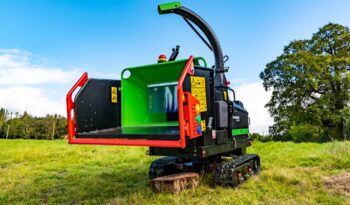

NO-STRESS IN-FEED SYSTEM

Self manages and retains a required material flowrate
through the processor without blocking or stalling the machine.

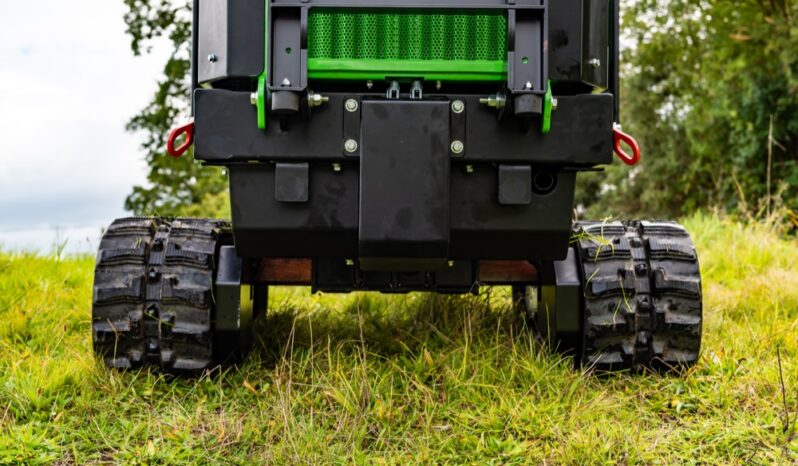

VARIABLE WIDTH TRACKS

Provides the operator with optimal manoeuvrability and
stability over rough ground.

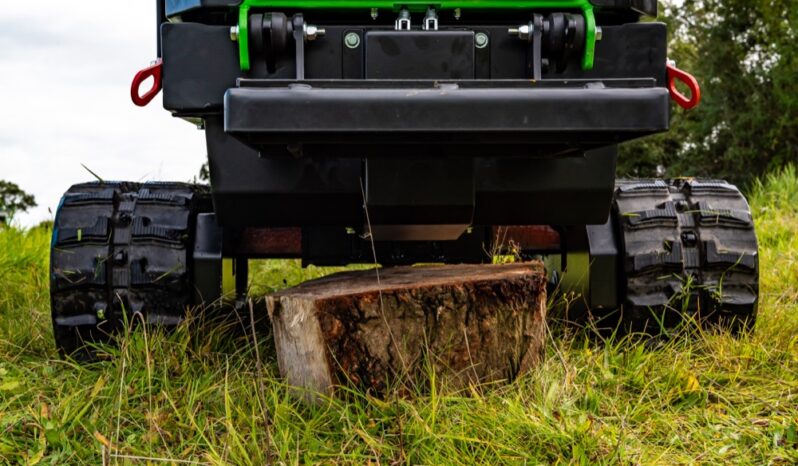

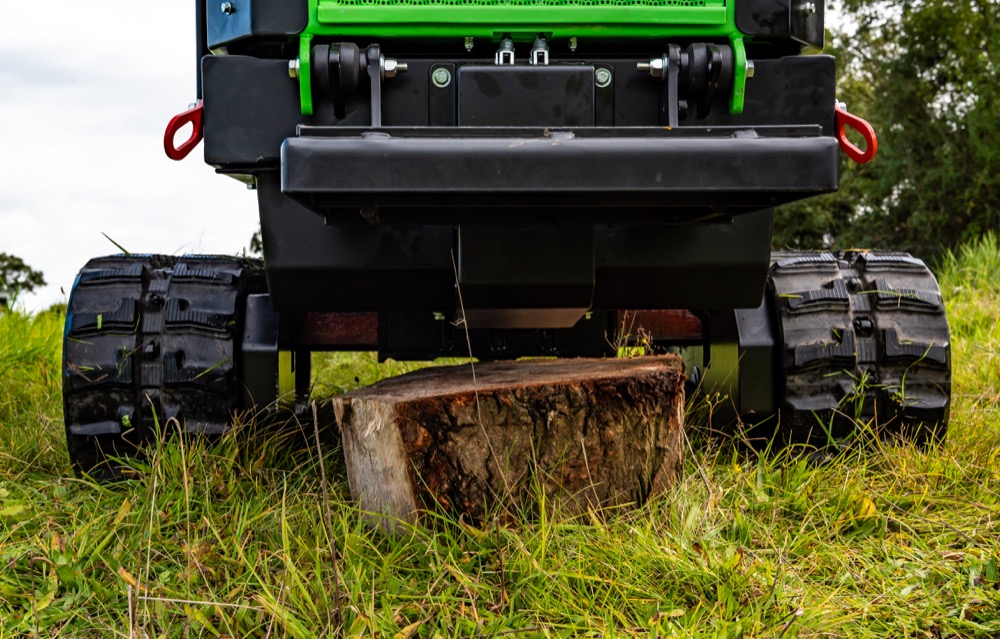

GROUND CLEARANCE

Clearance of 194mm helps access to sites over demanding
terrain.

TWIN TRACK DRIVE

Each track has its own drive motor for improved security and
reliability and together provide a tracking speed of 3.2kph.

TRACK OR CHIP

Console switch ensures machine is either tracking or
chipping, so minimising the risk of any accidental operation.

COMPLIANT DIESEL ENGINE

The Stage 5 compliant diesel engine provides useable power
matched to operational needs while retaining fuel economy.

Specifications

• CAPACITY:  165mm
• ENGINE MAKE:  Kubota D
  1505 18.5 kw
• ENGINE OUTPUT:  25hp
• FUEL:  Diesel
• CHIPPING FLYWHEEL:  Disc
  Type
• BLADES:  4
• GROUND CLEARANCE:  194mm
• TRACK SPEED:  3kph
• HYDRAULIC FEED ROLLERS:
  Twin Horizontal
• POWER CONTROL:  No
  Stress
• FUEL CAPACITY (ENGINE):
  33 Litres
• HYDRAULIC OIL CAPACITY:
  50 Litres
• SPARE WHEEL:  N/A
• TONNES PER HOUR:  15
  Cubic Metres / 4.25 Tonnes Per Hour
• INFEED CHUTE APERTURE:
  1110mm x 700mm
• INFEED THROAT SIZE:  165mm
  x 220mm
• DISCHARGE CHUTE:  280
  Degrees Rotation
• HOUR METER:  Standard
• LENGTH (TRANSPORT):  2540mm
• WIDTH (TRANSPORT):  1370mm
  Max 820mm Min
• HEIGHT (DISCHARGE CHUTE UP) :  2580mm
• WEIGHT:  1410 kg
• SOUND POWER LWA:  114
  dB(A)
• SOUND PRESSURE LPA:  94
  dB(A

–
