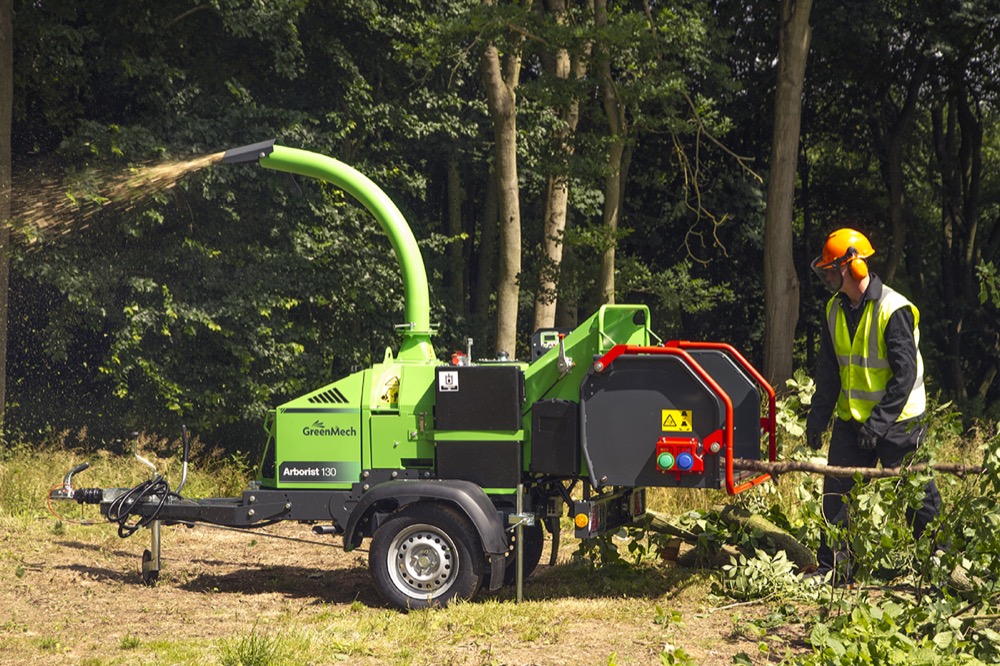

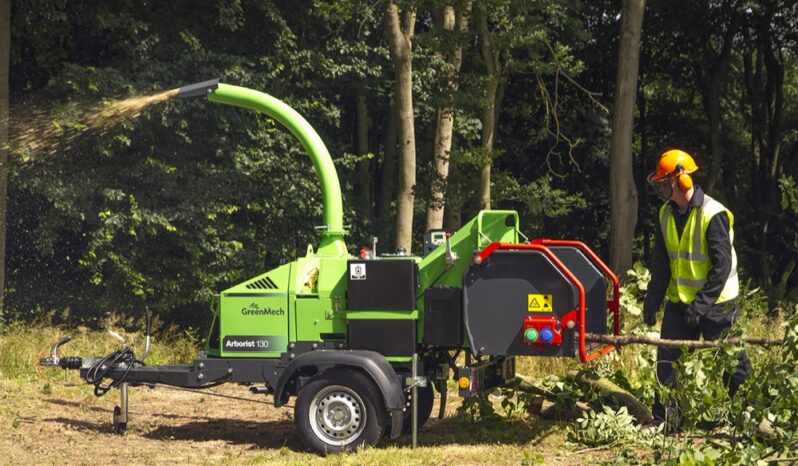

ARBORIST 130

For landscapers, contractors, arborists and hire companies looking for a wood chipper that handles up to 150mm (6inch) with ease, the Greenmech Arborist 130 might be the smallest GreenMech in the road-tow sector but it’s capable of very high output.

Key Features

• 6″ / 150mm Capacity

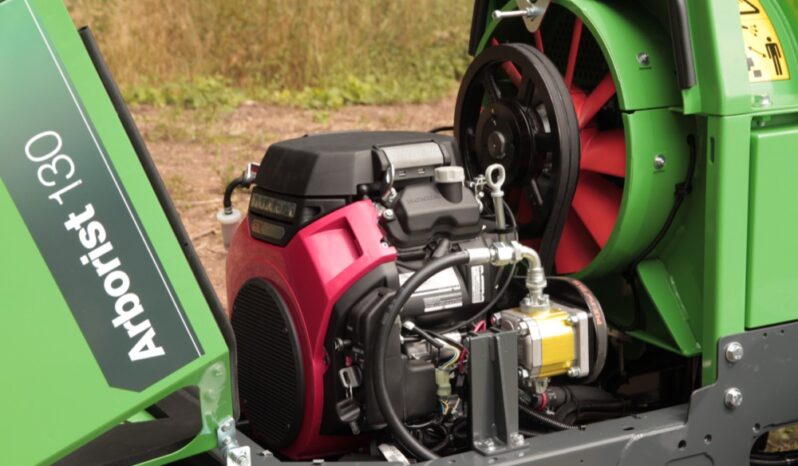

• 23hp Honda Petrol Engine
• Generous In-Feed Hopper
• No-Stress In-Feed System
• Disc-Blade System
• Hydraulically Powered Feed Rollers

NO-STRESS IN-FEED SYSTEM

The electronically controlled No-Stress feed system reverses the feed rollers to relieve the chipper blades, allowing the rotor speed to recover quickly, once again increasing output

ADJUSTABLE DRAWBAR

Helps match up the vehicle to the chipper while retaining the minimum 600mm infeed table height.

FOLDING INFEED CHUTE

Allows for good visibility of the lighting board in transit and gives a shorter overall length for storage.

WIDE IN-FEED CHUTE

A generous 970mm x 790mm in-feed hopper which aids bushy brash reduction, coupled with a 150cm x 230cm letterbox-style throat enables heavily forked branches to be fed in easily.

TWIN VERTICAL HYDRAULIC ROLLERS

The twin vertical hydraulic rollers efficiently crush the material with minimal lateral movement.

116 DB POWER / 92 DB PRESSURE

The hinged steel bonnet is lined with noise reduction material which, in combination with the disc blade system, offers one of the quietest wood chippers on the market.

SPECIFICATIONS

CAPACITY:  150mm

ENGINE MAKE:  Honda GX 630

ENGINE OUTPUT:  23hp

FUEL:  Petrol/Gasoline

CHIPPING FLYWHEEL:  Disc Type

BLADES:  4

HYDRAULIC FEED ROLLERS:  Twin Vertical

POWER CONTROL:  No Stress

FUEL CAPACITY (ENGINE):  27 Litres

HYDRAULIC OIL CAPACITY:  30 Litres

SPARE WHEEL:  N/A

TONNES PER HOUR:  9.5 Cubic Metres / 3 Tonnes Per Hour

INFEED CHUTE APERTURE:  970mm x 790mm

INFEED THROAT SIZE:  150mm x 230mm

DISCHARGE CHUTE:  280 Degrees Rotation

HOUR METER:  Standard

LENGTH (TRANSPORT):  3556mm

WIDTH (TRANSPORT):  1290mm

HEIGHT (DISCHARGE CHUTE UP):  2335mm

WEIGHT:  670 kg

SOUND POWER LWA:  116 dB(A)

SOUND PRESSURE LPA:  92 dB(A)

–

But are we right???

Our team loves to be right about everything! Don’t we all?!!!

However, sometimes we or our trusted team of supplies gets it wrong. If you find our technical data incorrect, please let us know so we can make it right.

Email: theteam@arblease.co.uk

Thanks for your support.
