New Imer 23M Access Platform 15742

Machine Details

Industry Arboriculture and Forestry
Condition New
Asset Type Access Platform
Hours/Mileage (or N/A?) N/A
Make Imer
Model 23M
Age New
Seller type Dealer (Franchised)
Drive Type Tracked
Fuel or Power type Diesel
Stock id 15742
  • Low and No Deposit
  • Low Rate Finance Offer
  • Manufacturers Warranty
  • National Delivery
  • Part-ex considered
  • Remote Control
  • Tracked
  • Trailer Solutions Available
  • VAT Deferral Available

New Imer 23M Access Platform 15742

Let's find out what they have to say about this machine...

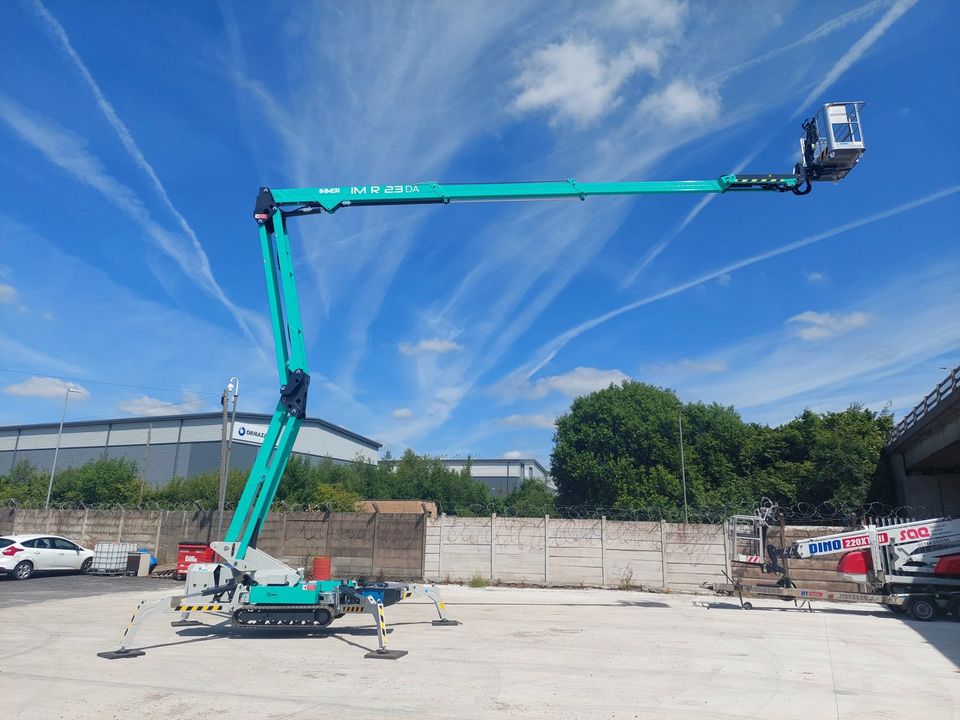

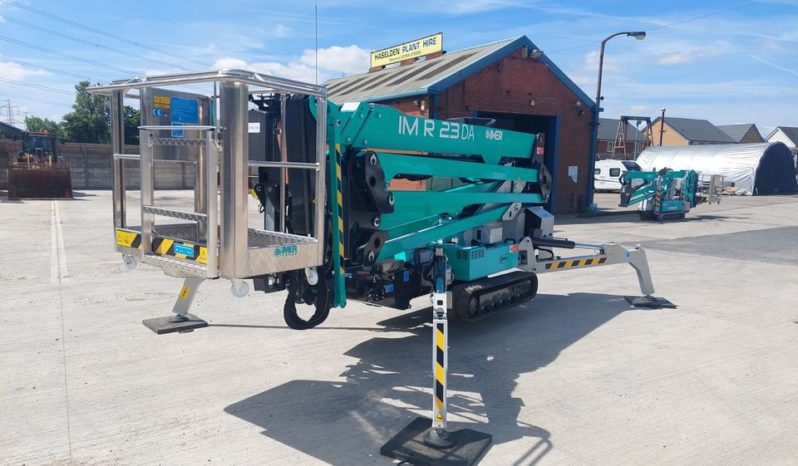

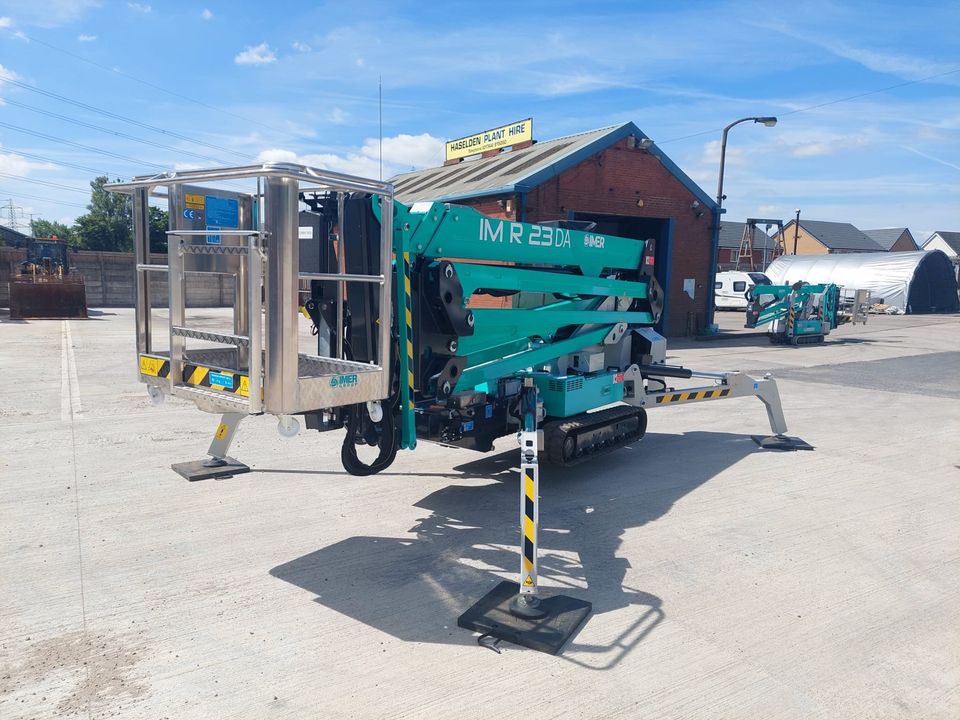

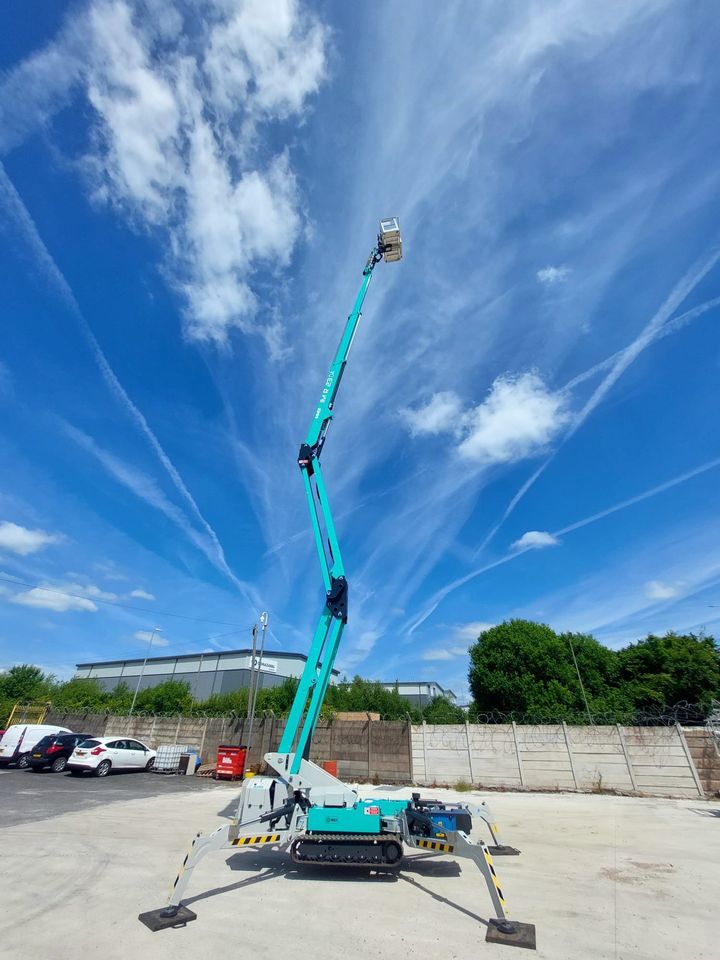

New 23M Imer Spider Automatic outriggers levelling with electronic inclinometer • Outrigger pads (Ø 200 mm) • Emergency hand pump • Cylinder holding valve • Electronic hour meter • Load cell • Hydraulic Jib • Rubber tracks • Hydraulically adjustable tracks width • Double speed traction • 230V - 16 A electro-pump for indoor use • Air / Water outlet in the platform • 230V - 16 A outlet in the platform Yanmar 3TNV70 diesel engine – 20.8 HP 3600 rpm • Wireless radio-control box Working height m 23 Side outreach with standard stabilized 12M Side outreach with narrow stabilized area 8.6m Up & Over m 9 Slewing (not continuous) (°) 360 (180+180) Basket dimensions m 1.40 x 0.75 x 1.10 Overall outrigger footprint standard (narrow) m 3.9 x 3.7 (2.7 x 4.9) Max driving speed km/h 2.8 Gradeability (°) 18 Max load capacity kg 230 Single-phase electric motor V / kW 220 / 2.2 Yanmar 3TNV70 diesel engine HP / rpm 20.8 / 3600 Transport length (without basket) m 5.70 (4.95) Transport width (with extended tracks) m 0.98 (1.28) Stowed height m 1.99 Total weight of the machine 3000KG We can supply a trailer to tow this legally
