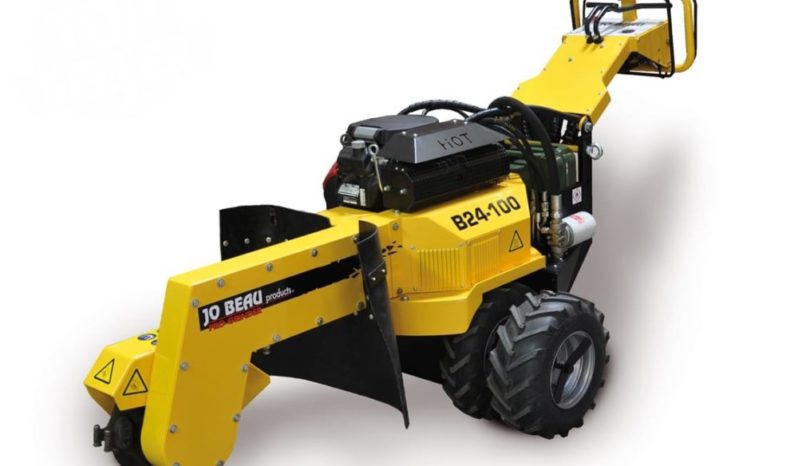

The B24-100 is a compact, self-propelled stump grinder. With a width of only 64 cm you pass this device without any problem through all doors and garden gates. With the optional assembly wheels with wide tractor profile tires even rough ground is no problem. The powerful 2 cylinder Honda GX690 engine with 24 hp grinds in a never seen time a stump 45 cm deep with a working width of 100 cm. The grinding arm can be moved hydraulically from the operation console. To ensure that the working position is as ergonomic as possible, its position be changed automatically.

Following performance conditions (average volumes):
› ø300mm: 8 min
› ø600mm: 20 min
› ø1000mm: 75 min

The Greenteeth® teeth can be easily turned 3 x (120°) and can be ground again. The separate metal jerrycan avoids fire danger when filling in comparison with other brands. The B24-100 fulfils all the requirements of the professional gardener and tree surgeon.

All Jo Beau machines are built according to the valid European guidelines and have a CE-certificate. All machines are supplied with manual and parts list.

Key features

✓ Compact for transport
✓ Hydraulic semi-automatic control and self-propelled
✓ Wide air tires (option for double wheels)
✓ Only 64 cm wide (108 cm with double wheels)
✓ Disc transmission for double industrial V-belt
✓ Teeth can be turned 3 x 120° and can be ground again
✓ The machine has 3 lifting eyes

MACHINE SPECIFICATION:

Performance

• Max. working width:       1000 mm (39.37 in)
• Max. grinding depth:      450 mm (17.71 in)
• Max. grinding height:     350 mm (13.78 in)
• Control:                                Semi-automatic

Engine

• Drive:                                    Petrol engine
• Brand & type:                    Honda GX690 – 2 cyl. 4-stroke
• Power:                                 16,5 kw (24 hp)
• Consumption:                   6,7 l/h – 3600 rpm
• Noise level Lw(A):            106 dB(A)

Design

• Dimensions (LxWxH): 2340 x 640 x 1050 mm
• Weight: 330 kg (727 lbs)
• Fuel supply: Removable metal jerrycan 10 l
• Brakes: Hydraulic
• Drive traction: Hydraulic > 0-3 km/h
• Chassis: Powder-coated steel
• Grinding Technology: Jo Beau® grindertechnology™
• Teeth: Greenteeth® 700, 8 pcs
• Grindwheel diameter: 420 mm (16.54 in)
• Disc transmission: Double industrial V-belts on electromagnetic coupling
• Foldable and height-adjustable handlebar: Standard (electric)

–
