FSI D30 TRACK Remote Stump Grinder

Remote-controlled stump grinding with diesel power, tracked mobility, and professional cutting capacity.

Short tagline: Professional stump removal with remote operation and strong cross-country capability.

Engine & drive

The FSI D30 TRACK Remote uses a Kubota D1305 water-cooled diesel engine producing around 25 hp (18.5 kW). Because diesel engines deliver strong torque at lower RPM, the machine maintains steady cutting performance while keeping fuel consumption efficient.

Power transfers through a V-belt driven cutter wheel combined with the FSI power-clutch system, which includes an integrated brake for fast cutter wheel stopping. As a result, the machine provides reliable cutting performance with improved safety during operation.

The counter-rotating hydraulic tracks allow the grinder to manoeuvre easily across slopes, soft ground, and rough terrain. Consequently, the machine reaches stumps that wheeled grinders often struggle to access.

Cutting head

The FSI D30 TRACK Remote uses a 470 mm cutting disc equipped with FSI 25 tooth holders and multiple cutting teeth designed for efficient chip removal.

Two hydraulic cylinders control the cutter head movement, allowing stable up-and-down and side-to-side positioning. Therefore, the grinder can remove material efficiently across the stump surface.

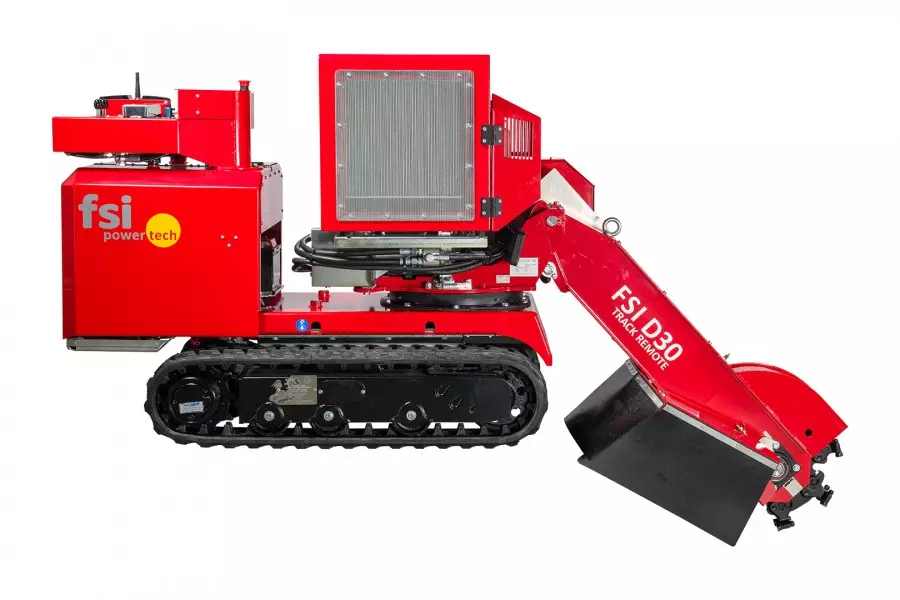

The machine provides a large working area, reaching around 80 cm above ground and approximately 38–40 cm below ground. In addition, it can sweep across about 135 cm, reducing the need to reposition the machine frequently.

Frame / chassis / build

The FSI D30 TRACK Remote is built on a heavy-duty tracked chassis designed for professional arborist work. The machine width is approximately 760–775 mm, while the retractable track system can extend to around 1150 mm for improved stability during grinding.

With an operating weight of roughly 970 kg, the grinder benefits from high stability when cutting larger stumps. The chassis also includes lifting and lashing points to simplify transport between job sites.

An optional rear dozer blade can also be fitted to assist with site preparation and levelling after stump removal.

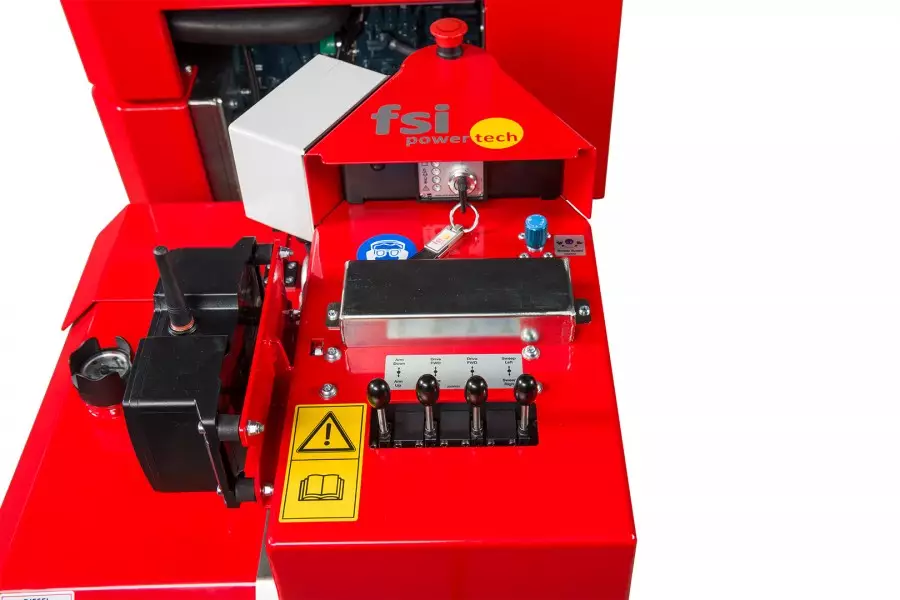

Comfort & controls

The key feature of the FSI D30 TRACK Remote is its radio remote control system. This allows the operator to control both machine movement and cutting functions from a safe distance. Consequently, operators gain better visibility of the work area while improving safety.

The remote control system typically includes an extra battery, charger, and connection cable, ensuring reliable operation throughout the working day.

The machine also includes LED work lighting, an integrated toolbox, and accessible service points, which help simplify daily operation and maintenance.

Why choose FSI D30 TRACK Remote?

Choose the FSI D30 TRACK Remote when you need a powerful tracked stump grinder that allows remote operation for improved safety and visibility. While traditional machines require the operator to stand close to the cutting area, this remote-controlled version allows greater flexibility during demanding jobs.

Because it combines diesel efficiency, hydraulic tracked mobility, and a wide cutting sweep, the machine suits professional arborists and contractors who regularly remove large stumps in challenging environments.

FSI D30 TRACK Remote – Key Specifications

• Kubota D1305 water-cooled diesel engine

• Approx. 25 hp (18.5 kW) output

• Hydraulic tracked drive with retractable tracks

• Radio remote control operation

• Cutter wheel diameter: approx. 470 mm

• Tooth system: FSI 25 with multiple replaceable teeth

• Hydraulic sweep system

• Sweep width: approx. 135 cm

• Grinding height: approx. 80 cm above ground

• Grinding depth: approx. 38–40 cm below ground

• Maximum cut per sweep: approx. 5.2 cm

• Machine width: approx. 760–775 mm (extended to ~1150 mm)

• Operating weight: approx. 970 kg

• Fuel tank: approx. 35 litres

• LED work light and integrated toolbox

• Optional rear dozer blade

–
