New CMC S19HD Pro Arb Access Platform MO7869

1 Video

Machine Details

Industry Arboriculture and Forestry, Construction, Groundcare
Condition New
Asset Type Access Platform
Hours/Mileage (or N/A?)
Make CMC
Model S19HD Pro Arb
Age New
Seller type Direct
Drive Type Tracked
Fuel or Power type Petrol
Stock id MO7869
  • Bespoke build options
  • Bespoke colour options
  • Direct from manufacturer
  • Low and No Deposit
  • Low Rate Finance Offer
  • Manufacturers Warranty
  • National Delivery
  • Part Exchange Considered
  • Trailer Solutions
  • VAT Deferral Available

New CMC S19HD Pro Arb Access Platform MO7869

Let's find out what they have to say about this machine...

About this machine:

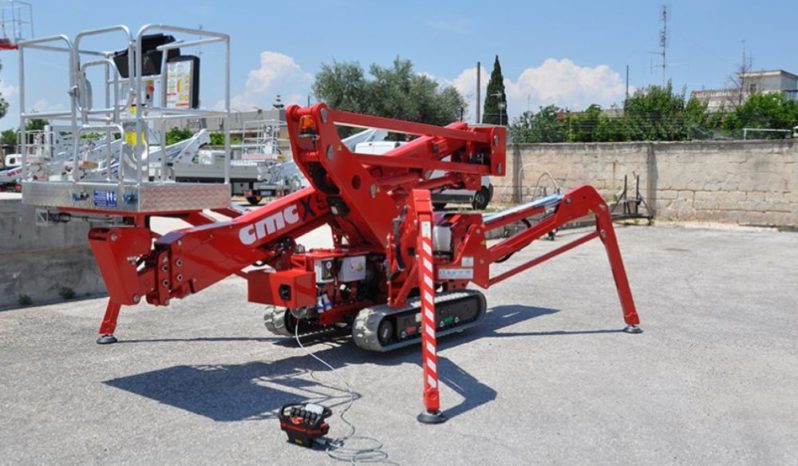

The CMC S19HD Pro Arb – An unparalleled crawler – The ideal platform for work on the hardest terrains.

Compact design, with 11.50 meters of outreach and articulated stabilisers with high levelling capabilities. Thanks to its size and reduced weight it passes through a standard door and can be transported.  The CMC S19HD Pro Arb tracked access platform is ideal for arborist and makes a great alternative to the traditional truck mounted platform.


  • Goes through a standard door
  • Self-loading, transportable with trailer
  • Three stabilisation areas
  • C.S (self-control system)
  • Radio control
  • Fault detector display
  • Automatic stabilisation






The S19HD is supplied with a Honda GX390 petrol engine, SCS system (automatic stabilisation, automatic speed control and automatic closing of the aerial part), radio control and fixed tracks. The three different stabilisation areas, the ability to perform several manoeuvres at the same time, the simple and intuitive controls, the self-loading function and the speed of movement even on the roughest terrains make it an unattainable platform. Double speed tracks with variable flow motor.


  • Max. working height: 18,70 m
  • Max. outreach: 11,5 m
  • Masket size: 1,4 x 0,7 x 1,1 m
  • Max. load on the basket: 200 kg
  • Turret rotation: +/- 355° (710° continuous)
  • Bakset rotation: + 90°/-87° (optional)
  • Weight: 2617 kg
