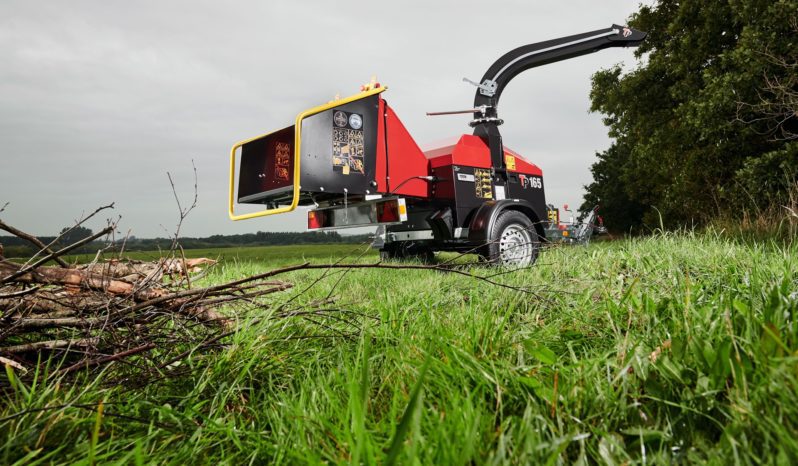

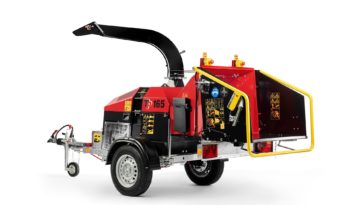

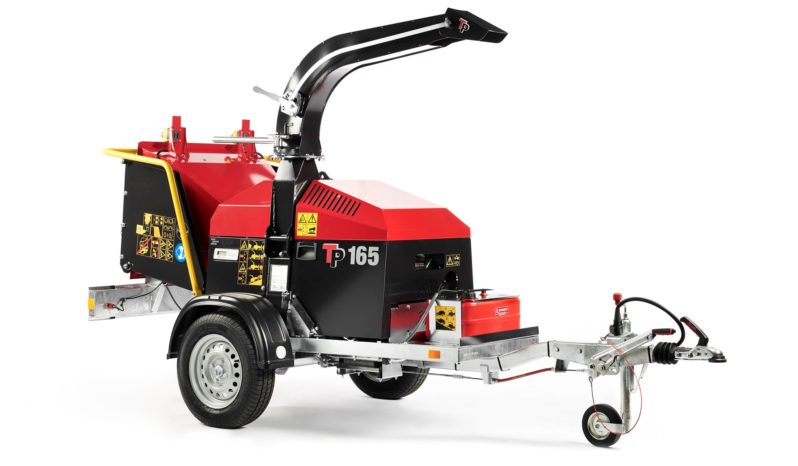

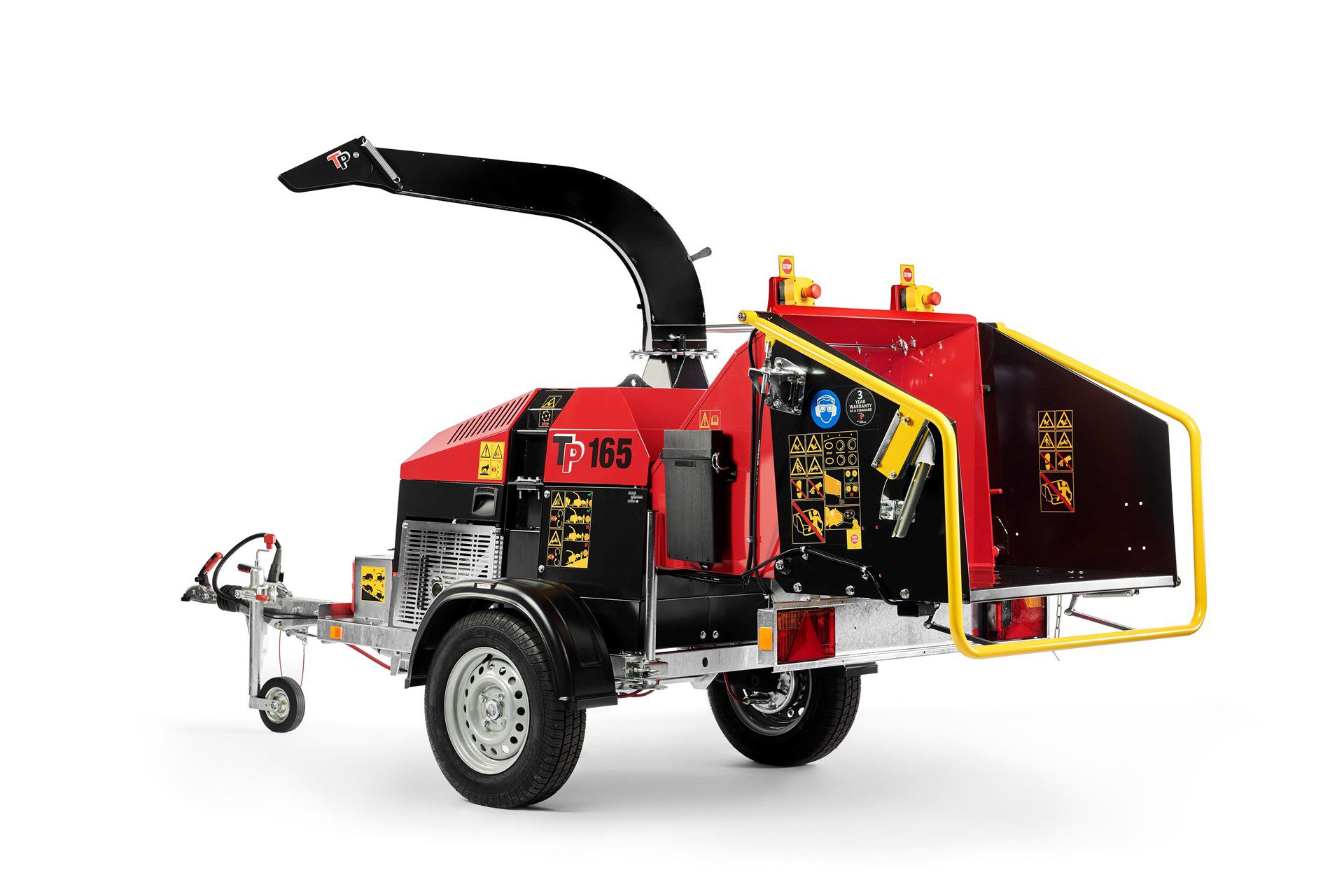

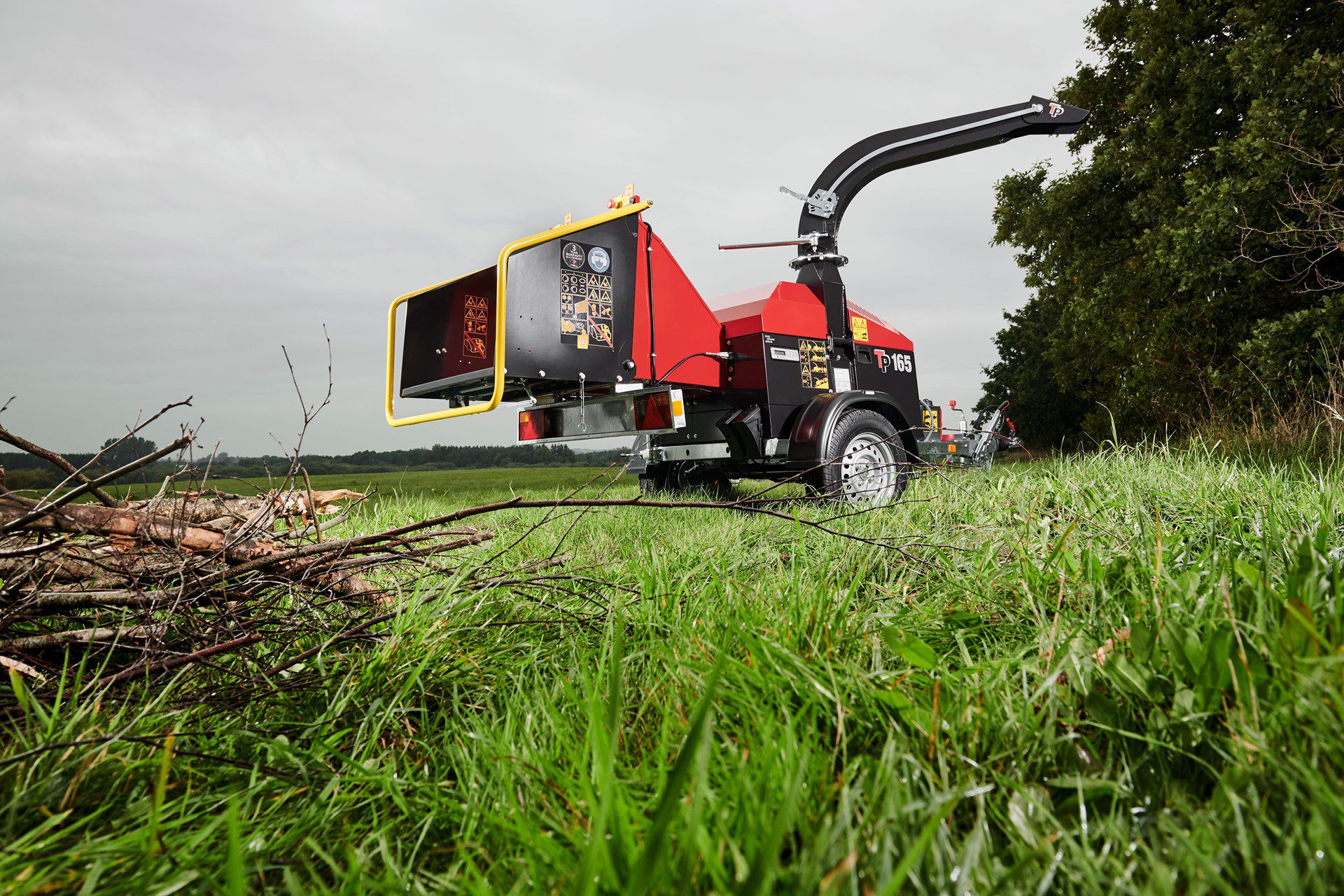

TP 165 MOBILE is ideal for various landscaping tasks for instance green keeping, parc and cemetery maintenance. The 2 hydraulic driven feed rollers  give the machine a strong and aggressive in feed. The functions of the stress control system, TP PILOT, includes hour counter and control of start and stop of the feed rollers.

SPECIFICATIONS

Two aggressive in-feed rollers

(variable speed)

Roller opening 175x191mm (7”)

Wide funnel 920 mm

Fixed spout standard

Vario spout (option)

TP Pilot – no stress control

Clutch and E-Start

Easy-Service (1 tool, 2 knives, 3 minutes)

Variable roller speed

3 Years Manufacturers Warranty as Standard.

Infeed

Roller opening: 175 x
191 mm

Number of rollers:           2

Roller position:  Horizontal

Chipper type

Chipper type:     Disc
chipper

Chipping angle: 90º

TP OPTICUT:       Yes

TP TWIN DISC:   Yes

Number of knifes:            2

Number of cuts per turn:              2

Woodchip size: 4-12 mm

Rotorspeed:       1450
r/min

Rotordiameter: 599 mm

Rotorweight:     69 kg

Transmission:    Clutch

Counter knife horizontal:              1
turnable

Counter knife vertical:    1

Replacement of wearing plate:   No

Wearing plate:  Yes

TP CHIP KIT:        Option

Spout System

TP VARIO SPOUT:             Option

TP FIXED SPOUT:              Standard

Stress control

Stress control:   TP
PILOT+

Engine

Engine: Kohler Pro CH
730

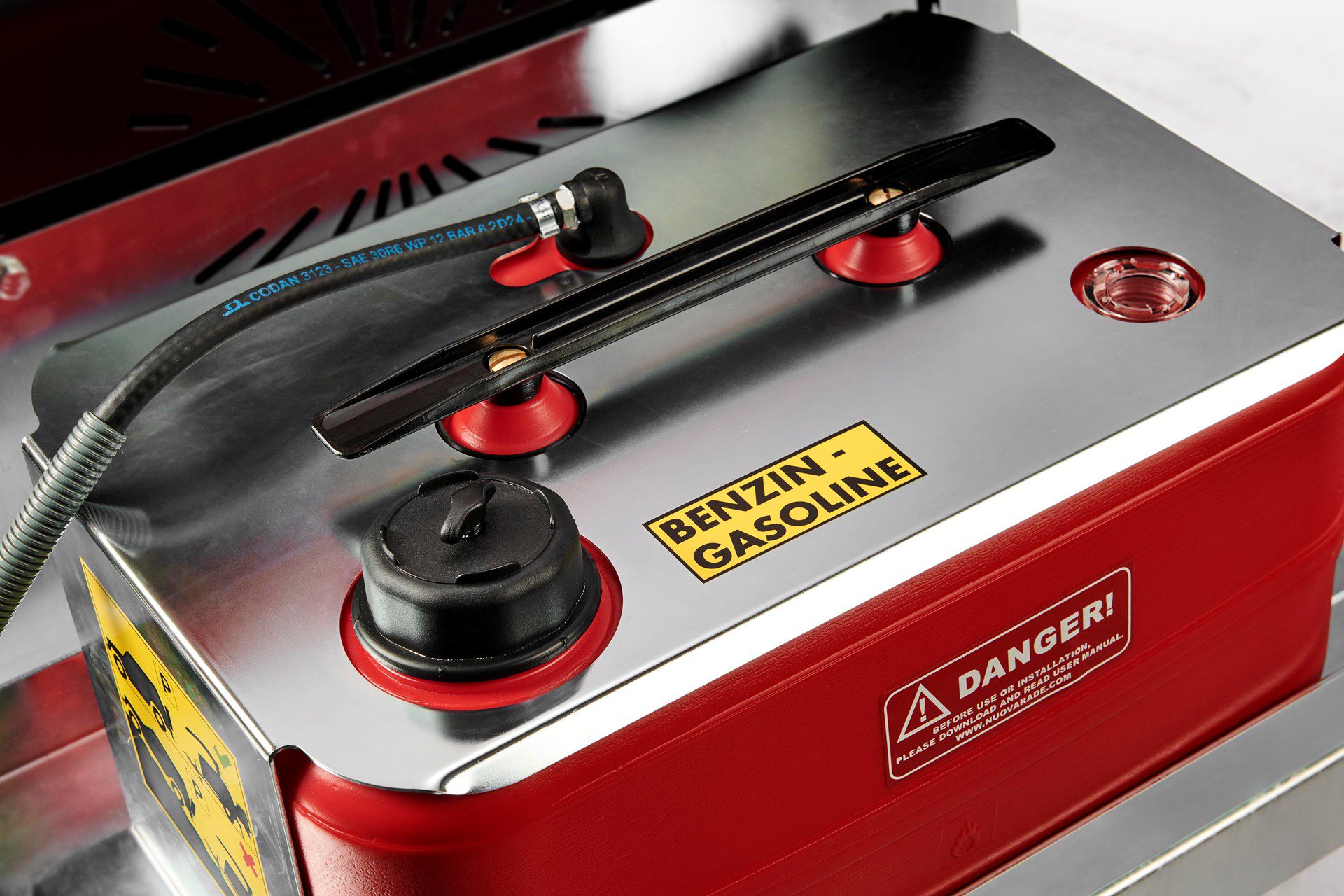

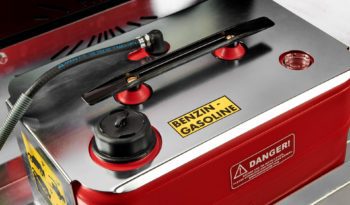

Fuel:      Gasoline

Engine power:   23,5
hp/17 kW

Number of cylinders:      2

Fuel consumption:          5l/h

Dimensions

Length (transport/operation):    3515 mm/4013 mm

Width:  1416 mm

Height (t/o) TP VARIO SPOUT:    1750
mm/1965-2440 mm

Height (t/o) TP FIXED SPOUT:      1995
mm

Weight: 680 kg

–
